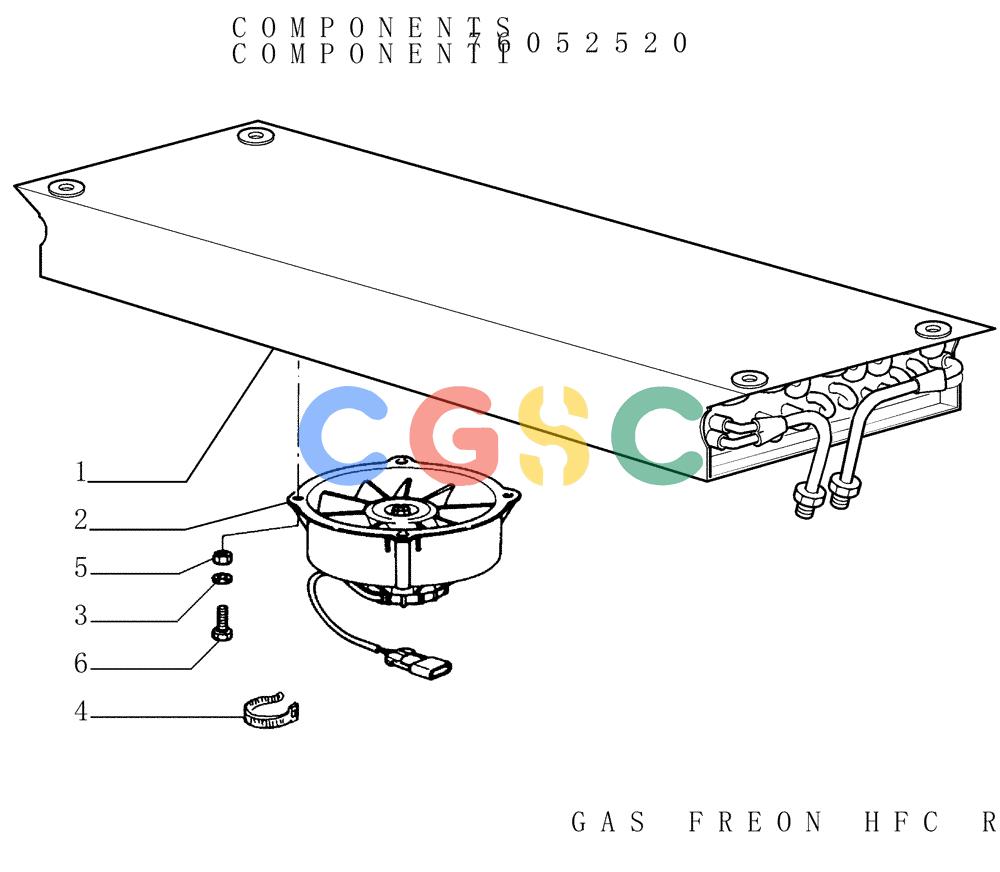

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.665[08]) - AIR CONDITIONING - CONDENSER - OPTIONAL CODE 76048477 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
140 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76053671 | [1] | CONDENSER | NH Superseded by part number: 76052520 |
| 2. | 76053672 | [3] | SPARE PART | TOR Superseded by part number: 76027755 |
| 3. | 14496321 | [12] | WASHER | LEC5 |
| 4. | 76035117 | [3] | CLAMP | NH Superseded by part number: 79013422 |
| 5. | 14197890 | [12] | NUT | LEC5X1,8 Superseded by part number: 14197894 |
| 6. | 10978021 | [12] | BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd | BHB Superseded by part number: |
