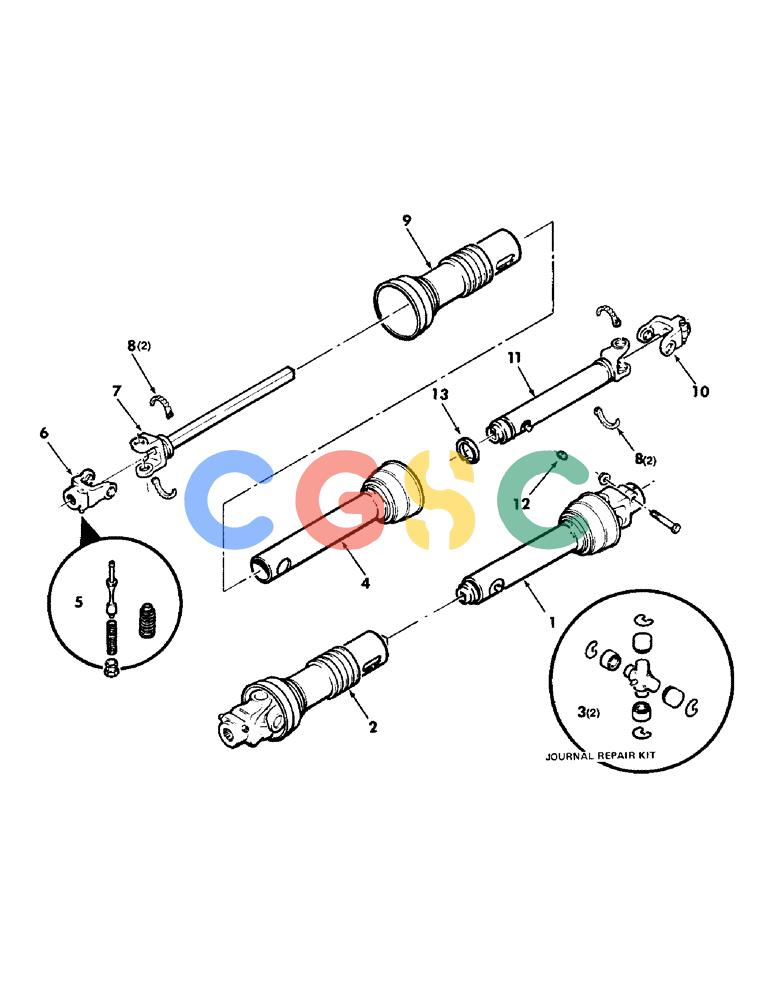

凯斯零件查询(8540) - CASE IH RECTANGULAR BALER (1/88-12/93) (18A) - IMPLEMENT DRIVE LINE PLASTIC SHIELDS, PAGE 18 SHOWS IMPLEMENT DRIVELINE WITH METAL SHIELDS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
323 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700709010
|
[1] |
YOKE
|
CAS
IMPLEMENT HALF ASSEMBLY
|
| 2. |
700709011
|
[1] |
YOKE
|
CAS
TRACTOR HALF ASSEMBLY (540 RPM)
|
| 3. |
845198
|
[2] |
KIT
|
CAS
JOURNAL REPAIR KIT Superseded by part number: 84355326
|
| 4. |
700709008
|
[1] |
SHIELD
|
CAS
- inner, plastic
|
| 5. |
700708364
|
[1] |
KIT
|
CAS
PIN KIT - quick disconnect Superseded by part number: 237924A1
|
| 6. |
8803645
|
[1] |
FORK
|
CAS
YOKE - tractor, 540 RPM
|
| 7. |
1708239
|
[1] |
SHAFT
|
HFI
YOKE WITH SHAFT
|
| 8. |
700709007
|
[4] |
CLIP
|
CAS
BEARING - shield
|
| 9. |
700709009
|
[1] |
SHIELD
|
CAS
- outer, plastic
|
| 10. |
1708189
|
[1] |
FORK
|
HFI
YOKE - clamp
|
| 11. |
700709012
|
[1] |
YOKE
|
CAS
WITH TUBE
|
| 12. |
77032
|
[1] |
FITTING
|
CAS
ZERK Superseded by part number: 88775
|
| 13. |
700708997
|
[1] |
BEARING
|
CAS
RING - bearing
|
