斗山零件查询FUEL PIPING-SEDIMENTER SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

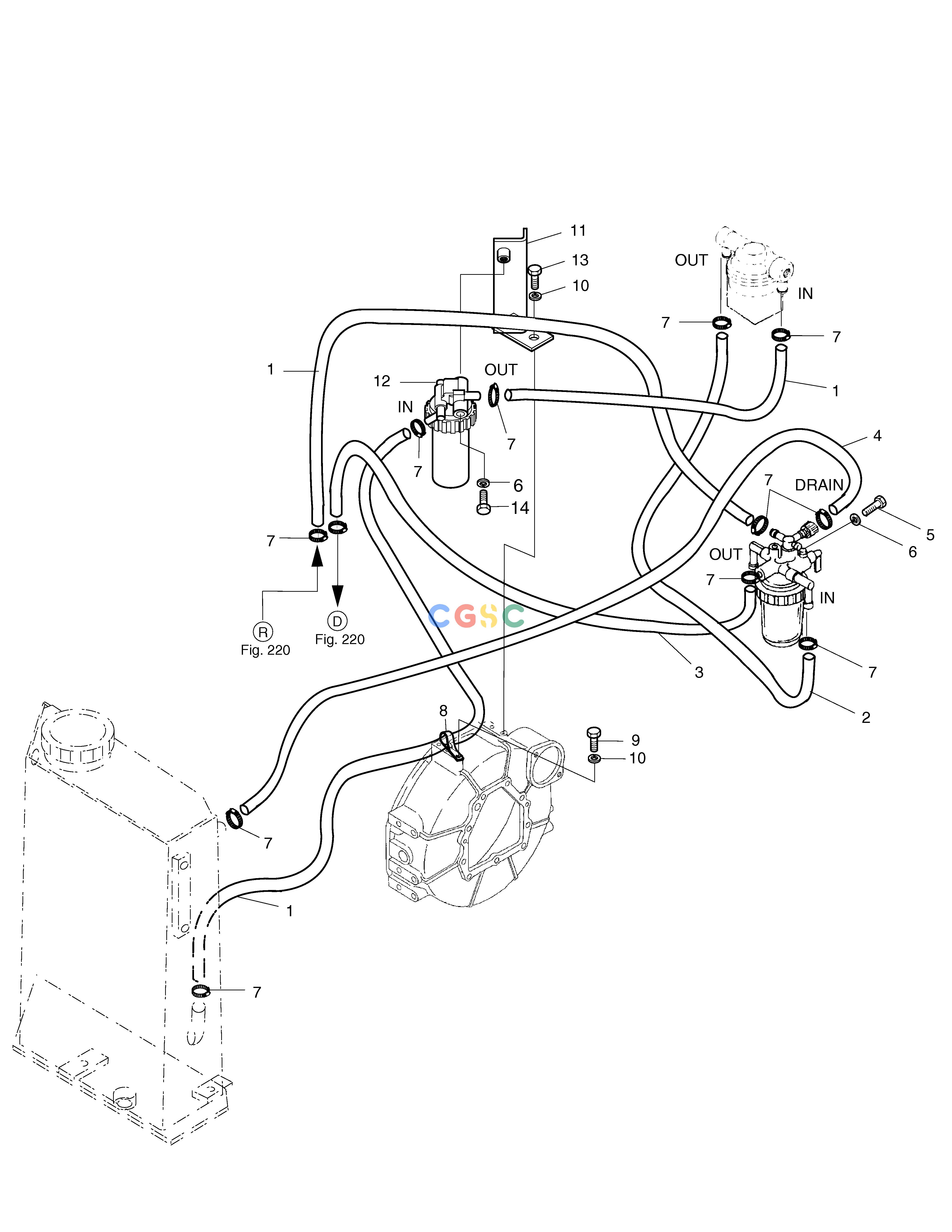

400-00184
|
[-] |
FUEL PIPING;SEDIMENTER
|
|
| 1. |
2185-1247D100
|
[3] |
HOSE 650L
|
|
| 10. |
S5102603
|
[3] |
. WASHER
|
|
| 11. |
195-00238
|
[1] |
BRACKET;SEDIMENTER
|
|
| 12. |
15831-4335-3
|
[1] |
SEDIMENTER
|
|
| 13. |
S0711653
|
[2] |
BOLT M10X1.25X16
|
|
| 14. |
S0556753
|
[1] |
BOLT M8X1.25X70
|
|
| 2. |
2185-1247D98
|
[1] |
HOSE D7.14-D13.49-500L
|
|
| 3. |
2185-1247D99
|
[1] |
HOSE D7.14-D13.49-600L
|
|
| 4. |
2185-1247D97
|
[1] |
HOSE 850L
|
|
| 5. |
S0556653
|
[1] |
BOLT M8X1.25X65
|
|
| 6. |
S5102503
|
[2] |
. WASHER
|
|
| 7. |
S8450006
|
[12] |
CLAMP
|
|
| 8. |
2124-1027D18
|
[1] |
CLAMP;PIPE
|
|
| 9. |
S0504353
|
[1] |
BOLT M6X1.0X10
|
|
