斗山零件查询OPTION PIPING-TWO WAY SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
467 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2163
|
[-] |

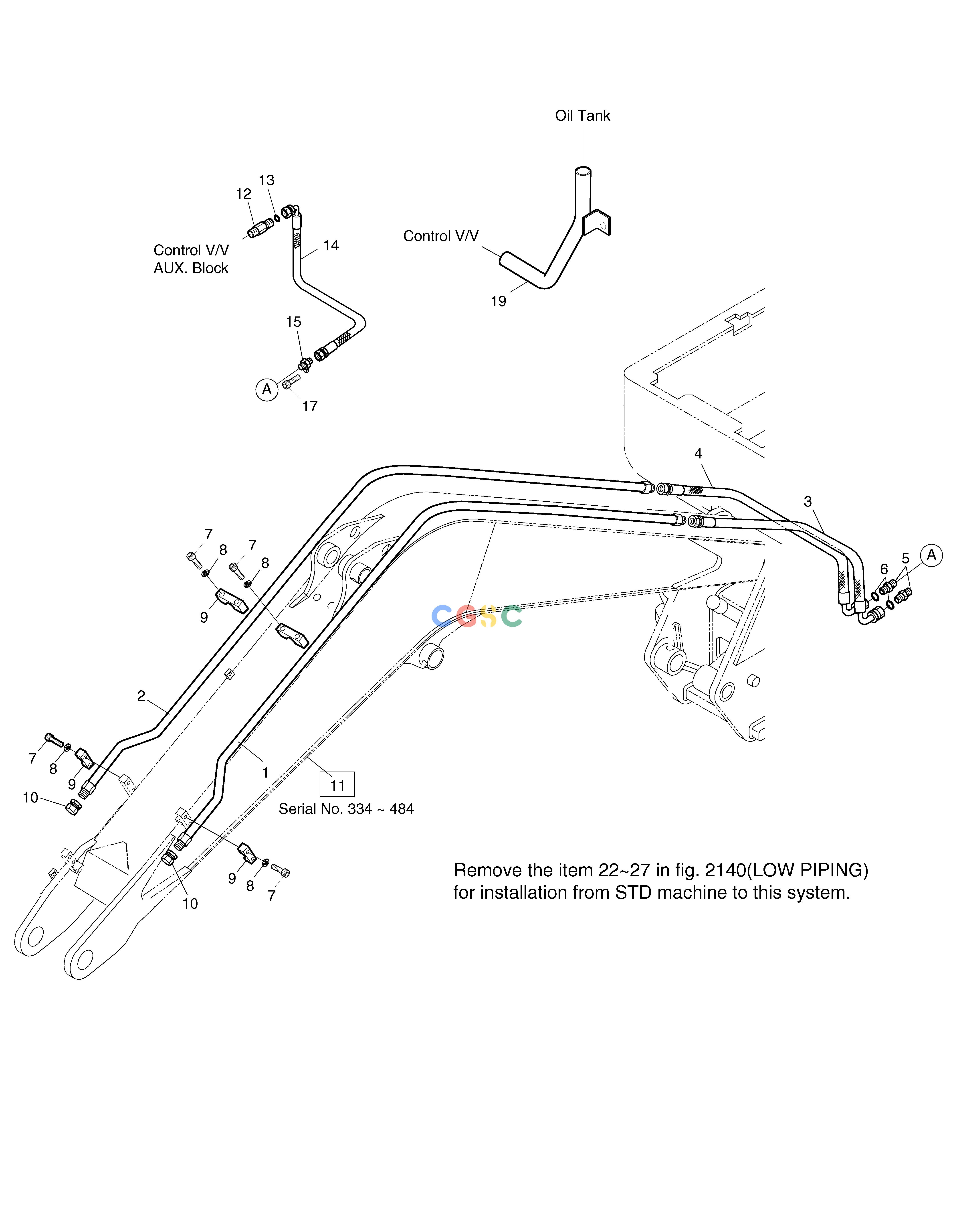

OPTION PIPING-TWO WAY
|
|
| 1. |
2140-1687
|
[1] |
PIPE
|
|
| 10. |
2181-2820D2
|
[2] |
PLUG
|
|
| 11. |
2701-1773
|
[1] |
BOOM ASS'Y
|
|
| 12. |
2181-1126D85
|
[1] |
ADAPTER
|
|
| 13. |
S8000111
|
[1] |
O-RING
|
|
| 14. |
2184-1036D382
|
[1] |
HOSE PF3/8-450L
|
|
| 15. |
2181-2427
|
[1] |
ADAPTER PFO1/2-PF3/8
|
|
| 17. |
S2208663
|
[1] |
BOLT M8X1.25X16
|
|
| 19. |
140-00019
|
[1] |
PIPE
|
|
| 2. |
2140-1688
|
[1] |
PIPE
|
|
| 3. |
2184-1036D376
|
[1] |
HOSE PF3/8xPF3/8-900L
|
|
| 4. |
2184-1036D377
|
[1] |
HOSE PF3/8-1000L
|
|
| 5. |
2181-1126D23
|
[2] |
ADAPTER
|
|
| 6. |
S8000181
|
[2] |
O-RING
|
|
| 7. |
S2209263
|
[12] |
BOLT;SOCKET M8X1.25X30
|
|
| 8. |
S5110503
|
[12] |
WASHER
|
|
| 9. |
2124-1698
|
[12] |
CLAMP;PIPE
|
|
