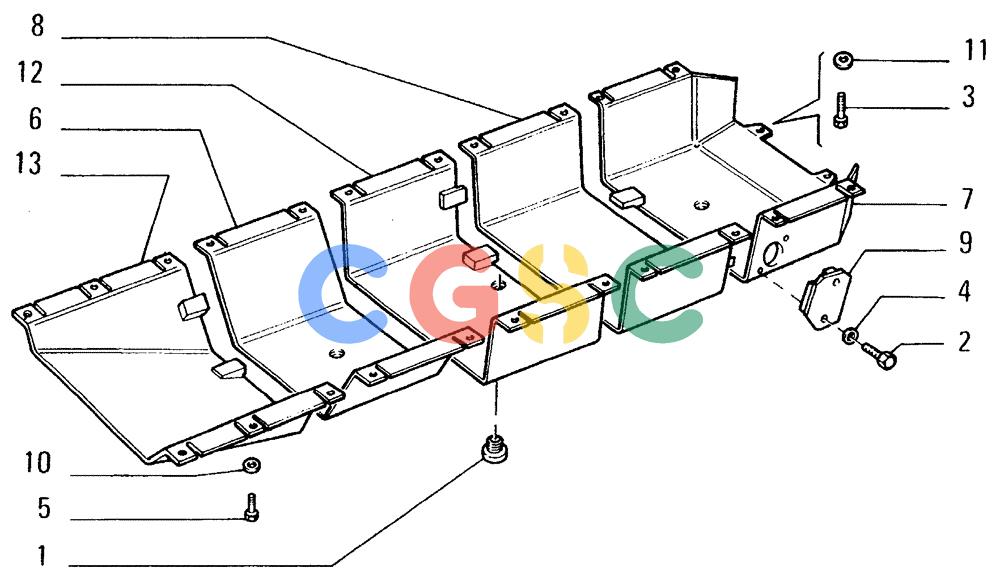

纽荷兰零件查询(FD14E) - CRAWLER DOZER (5.6460[001]) - BOTTOM GUARDS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
194 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 547737 | [3] | PLUG | LEC |
| 2. | 11106634 | [2] | BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 4. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 5. | 15984134 | [22] | BOLT,Hex, M18 x 1.5 x 45mm, Cl 10.9, Full Thd | LECSCREW 18x1,5x45 |
| 6. | 76008980 | [1] | GUARD | LEC |
| 7. | 76008981 | [1] | GUARD | LEC |
| 8. | 76008985 | [1] | GUARD | LEC |
| 9. | 76010852 | [1] | HOSE CLIP | LECDOOR |
| 10. | 79005239 | [22] | WASHER,18.8mm ID x 41mm OD x 8mm Thk | LEC |
| 11. | 79005240 | [2] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 12. | 79078017 | [1] | GUARD | LEC |
| 13. | 79082836 | [1] | GUARD | LEC |
| 3. | 11391534 | [2] | BOLT,Hex, M16 x 1.5 x 45, 10.9, Full Thd | TTFBOLT, Hex, M16 x 1.5 x 45, 10.9, Full Thd |
