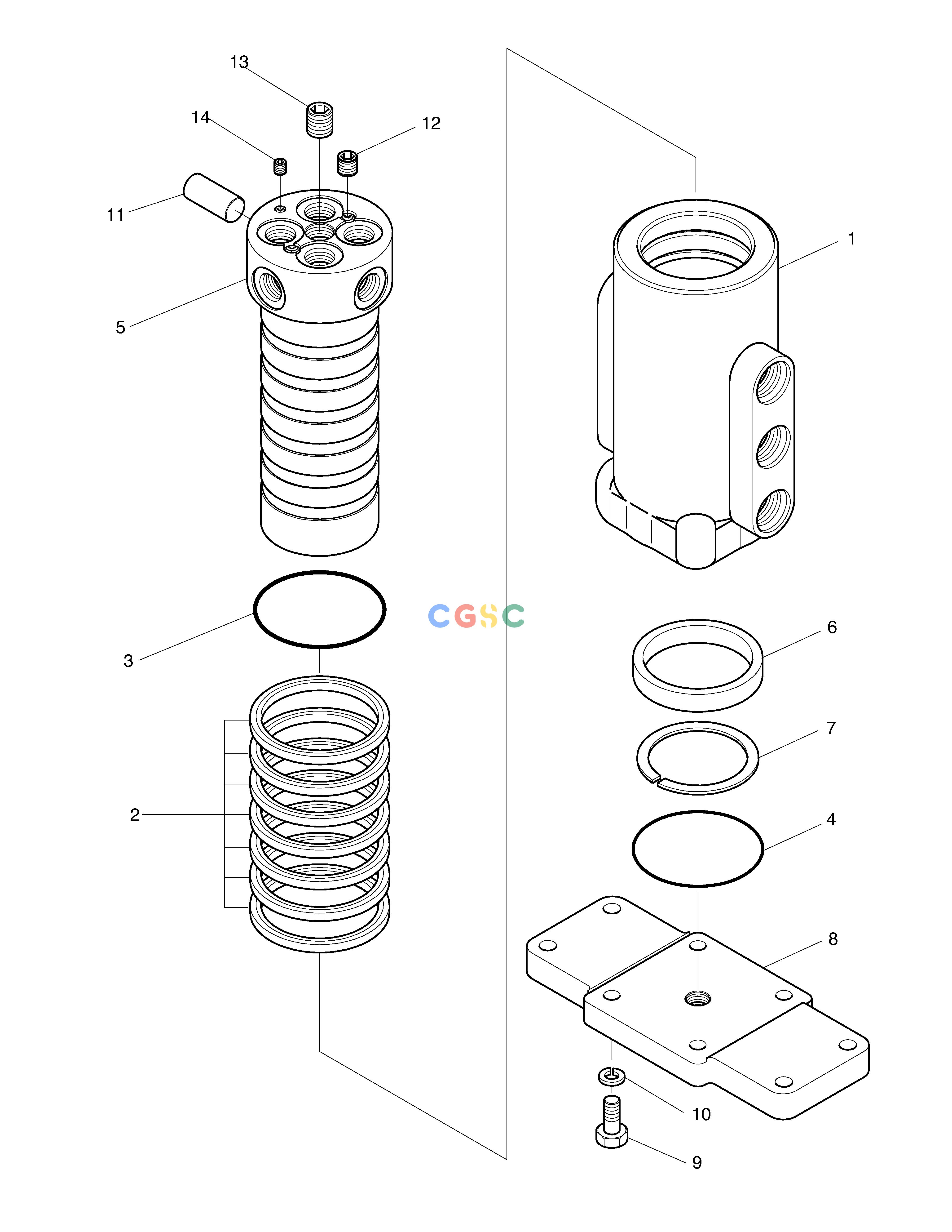

斗山零件查询ROTARY JOINT SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
470 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2181-9085K
|
[1] |
SEAL KIT;CENTER JOINT
|
|
| -. |
2181-9085B
|
[1] |
JOINT;CENTER
|
|
| 1. |
03C290-0
|
[1] |
BODY
|
|
| 10. |
E3110092
|
[4] |
WASHER;SPRING
|
|
| 11. |
03C294-1
|
[1] |
PIN
|
|
| 12. |
E1500010
|
[2] |
PLUG;SOCKET
|
|
| 13. |
E1500020
|
[1] |
PLUG;SOCKET
|
|
| 14. |
E1300314
|
[1] |
SCREW
|
|
| 2. |
E5430220
|
[7] |
SEAL;SLIPPER
|
|
| 3. |
E6311241
|
[1] |
O-RING
|
|
| 4. |
E6311341
|
[1] |
O-RING
|
|
| 5. |
03C291-3
|
[1] |
SPINDLE
|
|
| 6. |
03C293-0
|
[1] |
PLATE;THRUST
|
|
| 7. |
E8500301
|
[1] |
RETAINER
|
|
| 8. |
03C292-0
|
[1] |
COVER
|
|
| 9. |
E0020370
|
[4] |
BOLT
|
|
