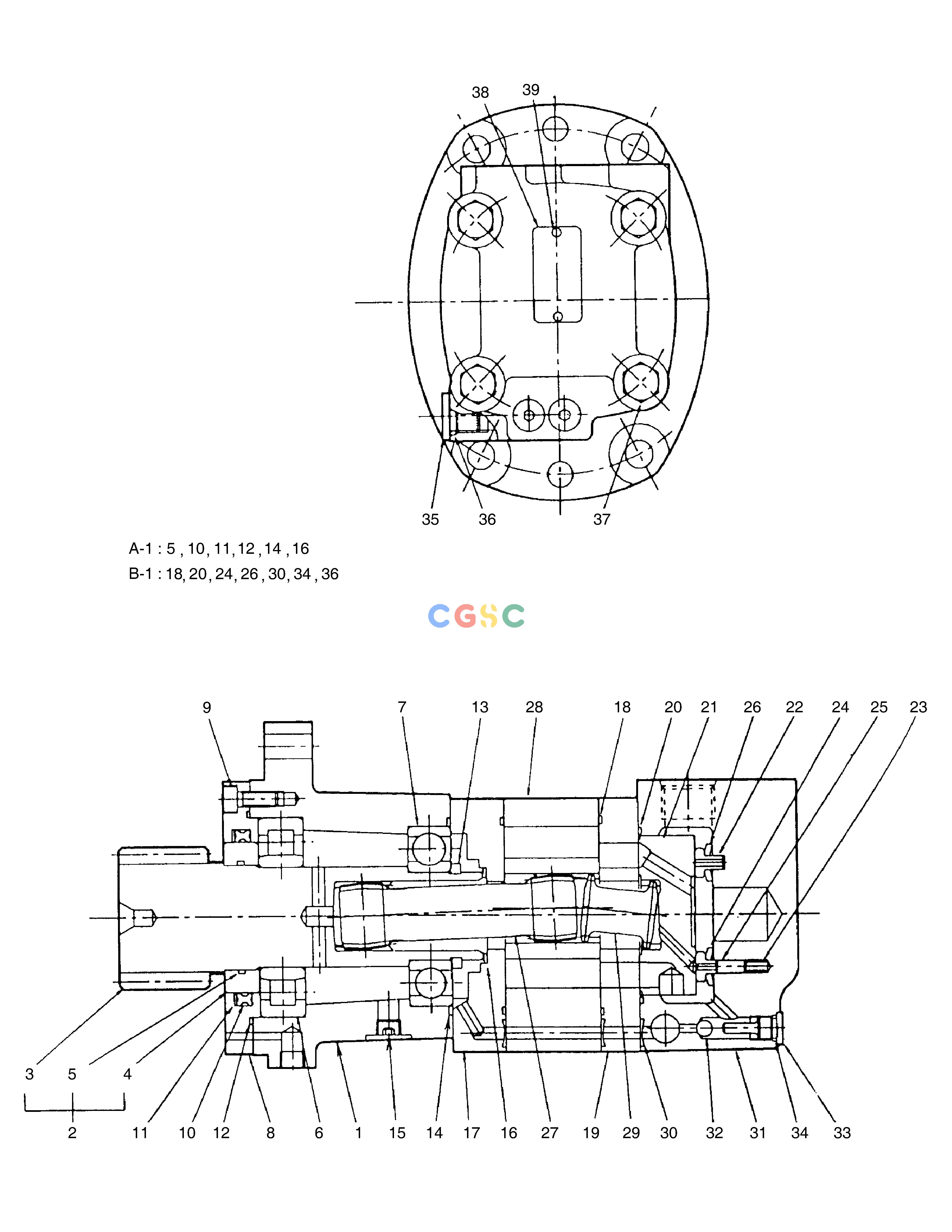

斗山零件查询SWING DEVICE SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
540 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-9169
|
[1] |
MOTOR;SWING
|
|
| 1. |
AD0171C-2
|
[1] |
HOUSING;BEARING
|
|
| 10. |
AD0281A
|
[1] |
X-RING
|
|
| 11. |
AD0104A
|
[1] |
RING;BACK UP
|
|
| 12. |
AD0167A
|
[1] |
O-RING
|
|
| 13. |
7384-3
|
[1] |
RING;RETAINING
|
|
| 14. |
9022S-6
|
[1] |
O-RING
|
|
| 15. |
A42041
|
[1] |
PLUG;SOCKET
|
|
| 16. |
9050
|
[1] |
SEAL
|
|
| 17. |
7390
|
[1] |
PLATE;WEAR
|
|
| 18. |
9022S-6
|
[2] |
O-RING
|
|
| 19. |
8432
|
[1] |
PLATE;VALVE
|
|
| 2. |
AD0400A
|
[1] |
SUB;PINION
|
|
| 20. |
9022S-2
|
[1] |
O-RING
|
|
| 21. |
8435S
|
[1] |
VALVE
|
|
| 22. |
8915
|
[1] |
PLATE;BALANCING
|
|
| 23. |
7383
|
[2] |
SPRING
|
|
| 24. |
9135-1
|
[1] |
SEAL;INNER FACE
|
|
| 25. |
14351
|
[2] |
PIN
|
|
| 26. |
9135-2
|
[1] |
SEAL;OUTER FACE
|
|
| 27. |
8434S-5
|
[1] |
DRIVE
|
|
| 28. |
7403-501
|
[1] |
GEROLLER
|
|
| 29. |
8433
|
[1] |
DRIVE;VALVE
|
|
| 3. |
AD0399B
|
[1] |
GEAR;PINION
|
|
| 30. |
9022S-12
|
[3] |
O-RING
|
|
| 31. |
8355S
|
[1] |
HOUSING;VALVE
|
|
| 32. |
18026
|
[2] |
BALL;STEEL
|
|
| 33. |
8349
|
[2] |
PLUG
|
|
| 34. |
250003-903
|
[2] |
O-RING
|
|
| 35. |
14236S
|
[1] |
PLUG
|
|
| 36. |
15073S
|
[1] |
O-RING
|
|
| 37. |
14303
|
[4] |
BOLT;SOCKET
|
|
| 38. |
NA00602
|
[1] |
|
|
| 39. |
NA00994
|
[2] |
RIVET
|
|
| 4. |
AD0105A
|
[1] |
COLLAR
|
|
| 5. |
AD0107A
|
[1] |
O-RING
|
|
| 6. |
AD0164A
|
[1] |
BEARING;ROLLER
|
|
| 7. |
AD0160A
|
[1] |
BEARING;BALL
|
|
| 8. |
AD0169B-2
|
[1] |
RETAINER
|
|
| 9. |
AD0159A
|
[8] |
BOLT;SOCKET
|
|
| A. |
AD0398B
|
[1] |
PINION GEAR ASS'Y
|
|
| A-1. |
MA5503
|
[1] |
SEAL KIT;DEVICE
|
|
| B. |
2-200D0V2-13
|
[1] |
MOTOR
|
|
| B-1. |
61090S
|
[1] |
SEAL KIT;MOTOR
|
|
