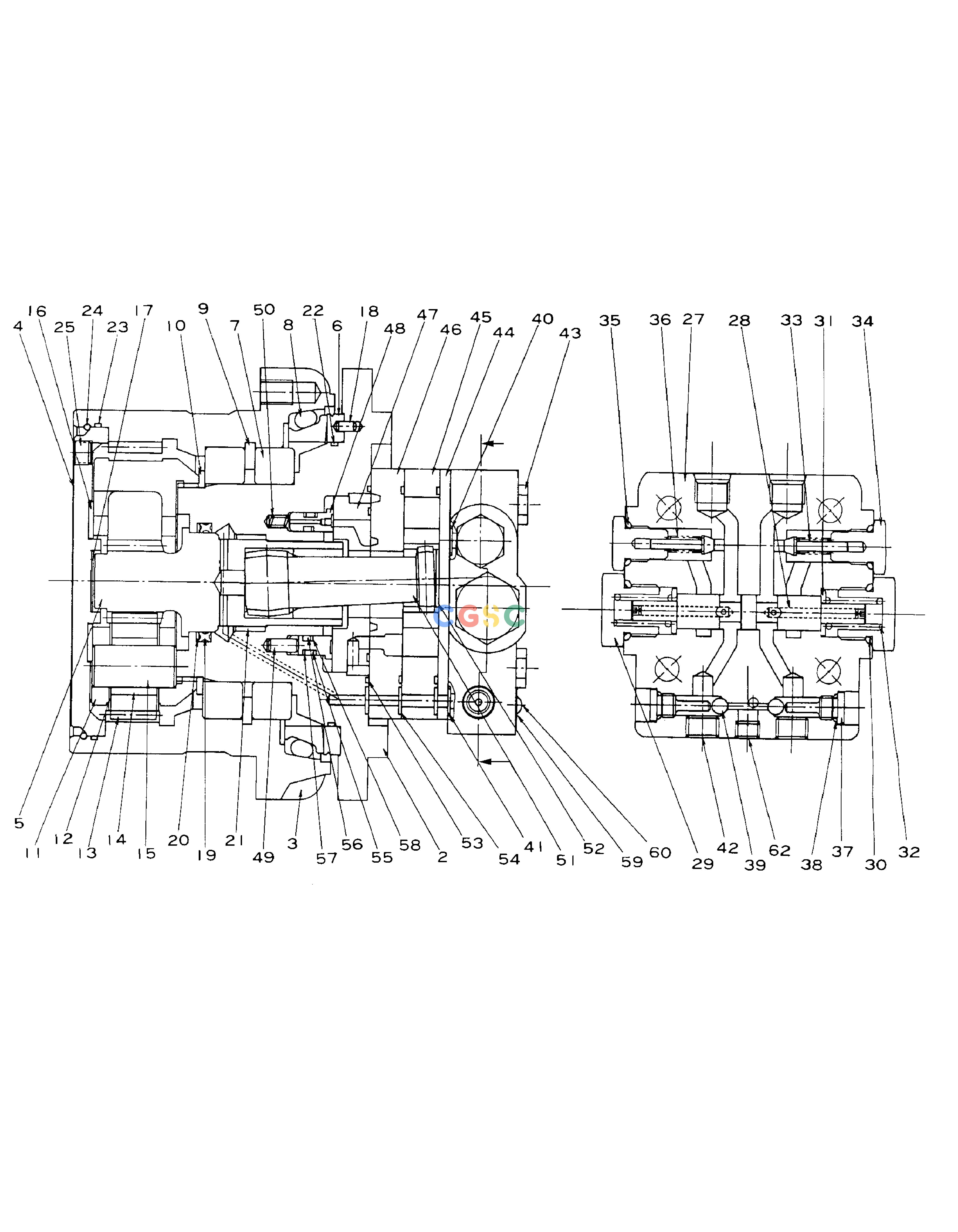

斗山零件查询TRAVEL DEVICE SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
637 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
AK0056A
|
[-] |
SEAL KIT(19,20,22,23)
|
|
| . |
AK0069A
|
[-] |
SEAL KIT(30,35,38,40,41)
|
|
| . |
AK0040A
|
[-] |
SEAL KIT(53,54,55,56,57,58)
|
|
| -. |
2401-9170
|
[2] |
MOTOR;TRAVEL
|
|
| 1. |
AK0045A
|
[1] |
GRAR;REDUCTION
|
|
| 10. |
NA00414
|
[1] |
|
|
| 11. |
NA00322
|
[1] |
|
|
| 12. |
NA01153
|
[6] |
SPACER
|
|
| 13. |
NA00490
|
[3] |
|
|
| 14. |
NA00058
|
[3] |
BALL
|
|
| 15. |
NA00752
|
[3] |
PIN
|
|
| 16. |
NA01153
|
[1] |
SPACER
|
|
| 17. |
NA01153
|
[1] |
SPACER
|
|
| 18. |
NA00752
|
[1] |
PIN
|
|
| 19. |
AK0041A
|
[1] |
X-RING
|
|
| 2. |
NA00332
|
[1] |
CASE
|
|
| 20. |
AK0042A
|
[1] |
RING;BACK UP
|
|
| 21. |
NA00258
|
[1] |
BUSH
|
|
| 22. |
AK0057A
|
[1] |
O-RING
|
|
| 23. |
AK0058A
|
[1] |
O-RING
|
|
| 24. |
NA00414
|
[1] |
|
|
| 25. |
NA00843
|
[2] |
PLUG
|
|
| 26. |
AK0059C
|
[1] |
END COVER ASS'Y
|
|
| 27. |
NA00398
|
[1] |
|
|
| 28. |
NA01161
|
[1] |
. SPOOL
|
|
| 29. |
NA00843
|
[2] |
PLUG
|
|
| 3. |
NA01343
|
[1] |
|
|
| 30. |
A40001-18
|
[2] |
O-RING
|
|
| 31. |
NA01315
|
[2] |
RONDELLE
|
|
| 32. |
NA01182
|
[2] |
. SPRING
|
|
| 33. |
NA00894
|
[2] |
|
|
| 34. |
NA00843
|
[2] |
PLUG
|
|
| 35. |
250003-906
|
[2] |
O-RING
|
|
| 36. |
NA01182
|
[2] |
. SPRING
|
|
| 37. |
NA00843
|
[2] |
PLUG
|
|
| 38. |
250003-903
|
[2] |
O-RING
|
|
| 39. |
NA00018
|
[2] |
BALL
|
|
| 4. |
NA00392
|
[1] |
COUVERCLE
|
|
| 40. |
A40001-8
|
[2] |
O-RING
|
|
| 41. |
A40002-8
|
[1] |
O-RING
|
|
| 42. |
A45019
|
[2] |
PLUG
|
|
| 43. |
AK0031B-1
|
[4] |
BOLT;SOCKET
|
|
| 44. |
AK0018B
|
[1] |
SPACER
|
|
| 45. |
AK0003C-1
|
[1] |
GEROLLER
|
|
| 46. |
AK0015C
|
[1] |
PLATE;VALVE
|
|
| 47. |
AK0013C
|
[1] |
VALVE
|
|
| 48. |
AK0016B
|
[1] |
PLATE;BALANCING
|
|
| 49. |
14351
|
[2] |
PIN
|
|
| 5. |
NA01124
|
[1] |
SHAFT
|
|
| 50. |
7383
|
[2] |
SPRING
|
|
| 51. |
8434S-2
|
[1] |
DRIVE
|
|
| 52. |
6901S-20
|
[1] |
SPACER
|
|
| 53. |
9022S-6
|
[3] |
O-RING
|
|
| 54. |
9022S-12
|
[3] |
O-RING
|
|
| 55. |
AK0019A
|
[1] |
O-RING
|
|
| 56. |
AK0021A
|
[1] |
O-RING
|
|
| 57. |
AK0020A
|
[2] |
RING;BACK UP
|
|
| 58. |
AK0022A
|
[1] |
RING;BACK UP
|
|
| 59. |
9029S-1
|
[1] |
PLATE;NAME
|
|
| 6. |
AK0049A
|
[1] |
PLATE;SEAL
|
|
| 60. |
14334
|
[2] |
RIVET
|
|
| 61. |
AA0020A-002
|
[2] |
CAP
|
|
| 62. |
BJ0027A
|
[1] |
PLUG
|
|
| 7. |
NA00053
|
[2] |
BEARING;BALL
|
|
| 8. |
AK0048A
|
[1] |
SEAL;FLOATING
|
|
| 9. |
NA00414
|
[1] |
|
|
