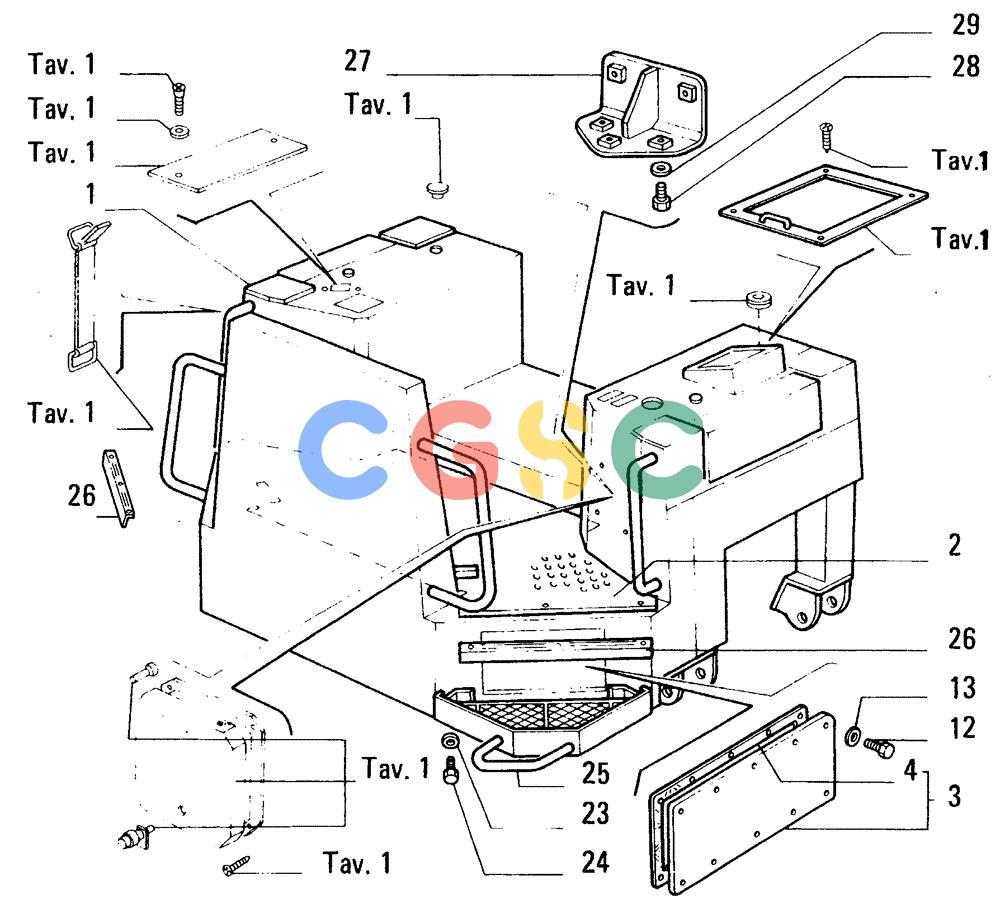

纽荷兰零件查询(FD14E) - CRAWLER DOZER (5.6690[001A]) - OPERATORS COMPARTMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
417 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 79100748 | [1] | GUARD | LECROPS CANOPY D2745 |
| 2. | 79101717 | [1] | MAT | LECD2745 |
| 3. | 79102065 | [1] | COVER | LEC-ASSEMBLY D2745 Superseded by part number: 79102067, 79102066 |
| 4. | 79102067 | [1] | GASKET | LECSEAL D2745 |
| 13. | 14496431 | [10] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LECD2745 M6.4 x 12.5 x 1.6 Thk Superseded by part number: 86588450 |
| 23. | 11112231 | [8] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LECSCREW 12x1,75x22 D2745 Superseded by part number: 398792 |
| 24. | 14496731 | [8] | WASHER,M12 x 24 x 2.5 Thk | LECD2745 M12 x 24 x 2.5 Thk Superseded by part number: 895-11012 |
| 25. | 79101596 | [1] | FOOTREST | LEC-LEFT D2745 Superseded by part number: 79107734 |
| 25. | 79101607 | [1] | FOOTREST | LEC-RIGHT D2745 Superseded by part number: 79107741 |
| 25. | 79101720 | [1] | BRACKET | LEC-LEFT D2745 |
| 26. | 79101721 | [1] | BRACKET | LEC-RIGHT D2745 |
| 27. | 79101722 | [1] | SUPPORT | LECD2745 |
| 28. | 16043431 | [3] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHBD2745 Hex, M8 x 20, 10.9 Superseded by part number: 16605534 |
| 29. | 79011527 | [3] | WASHER,8.6mm ID x 22mm OD x 5mm Thk | LECD2745 M8.6 x 22 x 5 Thk, HT |
| 12. | 14305221 | [10] | HEX SOC SCREW,M6 x 16mm, Cl 12.9 | IMOD2745 Hex Soc Hd, M6 x 16, 8.8 |
