纽荷兰零件查询(FD14E) - CRAWLER DOZER (5.6690[002]) - OPERATORS COMPARTMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
492 次

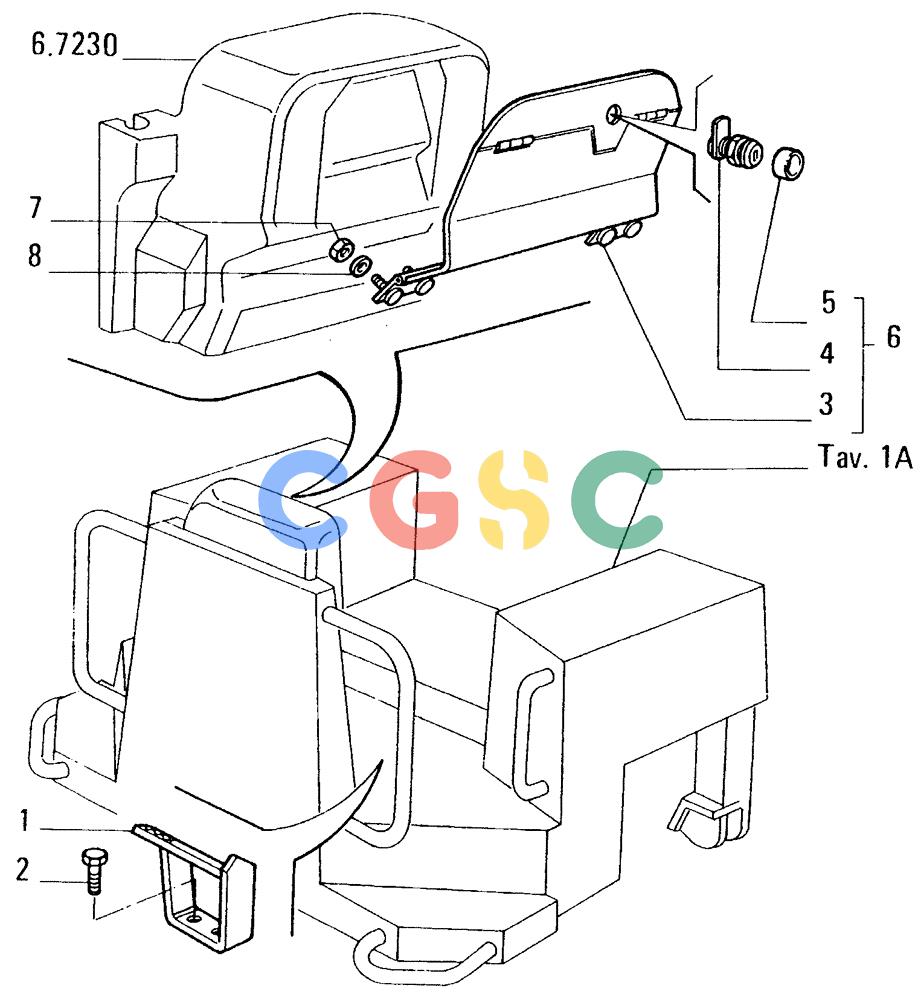

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79091365 | [1] | FOOTREST | LEC- RIGHT |
| 1. | 79091368 | [1] | FOOTREST | LEC- LEFT |
| 2. | 16043231 | [4] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LECSCREW 8x1,25x16 |
| 3. | 79092131 | [1] | COVER | LEC Superseded by part number: 79098274 |
| 4. | 79092129 | [1] | LOCK | LEC Superseded by part number: 73163461, 73162564, 73162563 |
| 5. | 79094691 | [1] | SPACER | LEC |
| 6. | 79095887 | [1] | COVER | LEC- ASSEMBLY |
| 8. | 12637801 | [4] | WASHER,5.15mm ID x 11mm OD x 1mm Thk | MOD5.15x12 Superseded by part number: 12637821 |
| 7. | 86639241 | [4] | NUT,M5 x .8, Cl 8 | FARNUT, LOCK, M5 x .8, Cl 8 |
