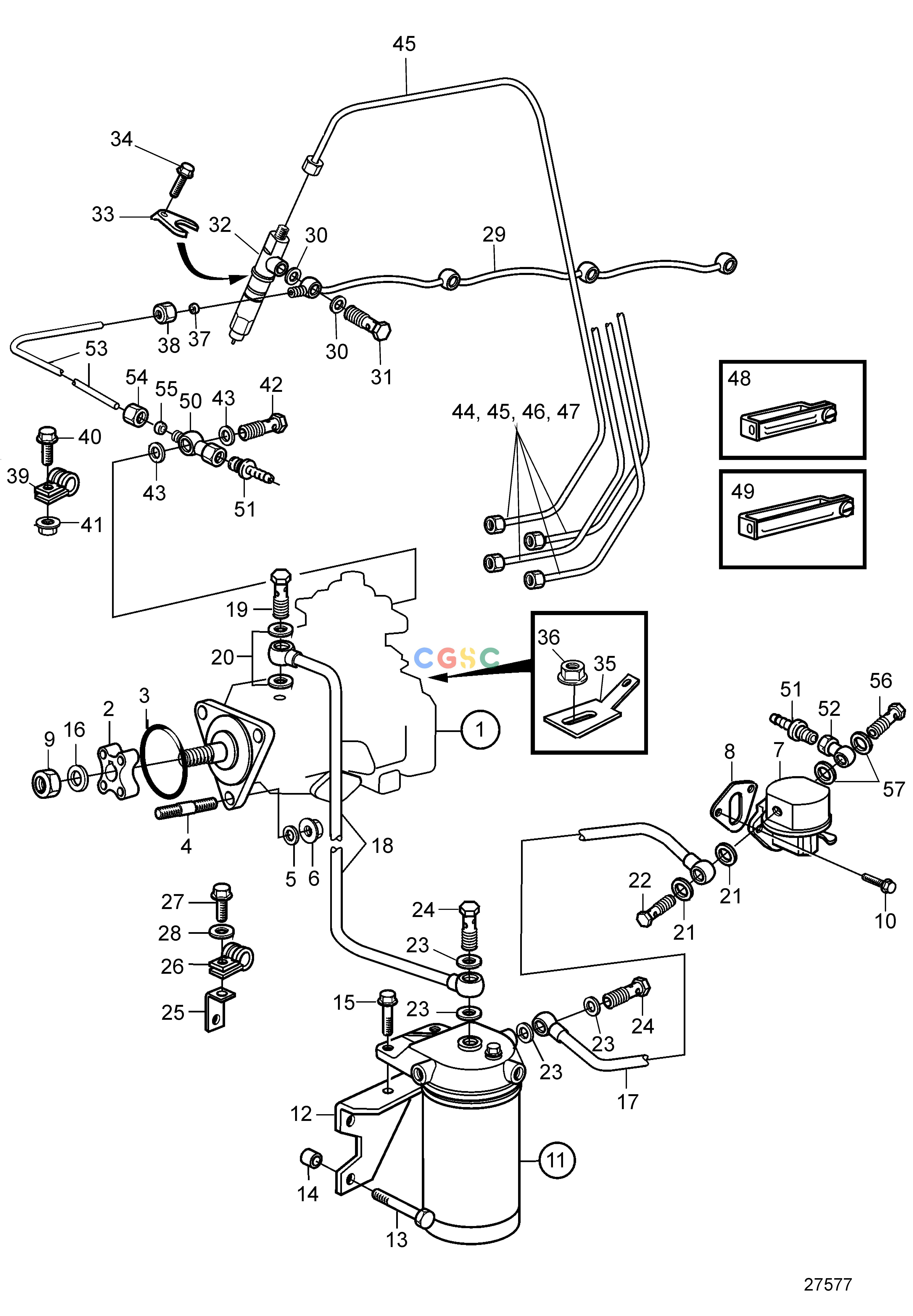

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EFuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
792 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581451
|
[1] |
Injection pump
|
Repl by 3581917
|
| 1. |
|
|
|
|
| 1. |
3581917
|
[1] |
Injection pump
|
|
| 2. |
859601
|
[1] |
Hub
|
For 3581451
|
| 3. |
968971
|
[1] |
O-ring
|
|
| 4. |
980225
|
[3] |
Stud
|
|
| 5. |
191172
|
[3] |
Washer
|
|
| 6. |
945408
|
[3] |
Flange nut
|
|
| 7. |
3582310
|
[1] |
Feed pump
|
(860320)
|
| 8. |
3501530
|
[1] |
Gasket
|
|
| 9. |
|
|
|
Included in fuel injection pump.
|
| 10. |
946173
|
[2] |
Flange screw
|
|
| 11. |
840531
|
[1] |
Fuel filter
|
|
| 11. |
|
|
|
|
| 12. |
3581698
|
[1] |
Bracket
|
(838583)
|
| 13. |
965193
|
[2] |
Flange screw
|
|
| 14. |
843122
|
[2] |
Spacer sleeve
|
|
| 15. |
946329
|
[2] |
Flange screw
|
|
| 16. |
|
|
|
Included in fuel injection pump.
|
| 17. |
860447
|
[1] |
Fuel pipe
|
|
| 18. |
838722
|
[1] |
Fuel pipe
|
|
| 19. |
969299
|
[1] |
Hollow screw
|
|
| 20. |
11994
|
[2] |
Gasket
|
|
| 21. |
11994
|
[2] |
Gasket
|
|
| 22. |
969299
|
[1] |
Hollow screw
|
|
| 23. |
969011
|
[4] |
Gasket
|
|
| 24. |
25167
|
[2] |
Hollow screw
|
|
| 25. |
846780
|
[1] |
Bracket
|
|
| 26. |
952624
|
[1] |
Clamp
|
|
| 27. |
948746
|
[1] |
Flange screw
|
(968855)
|
| 28. |
955893
|
[1] |
Washer
|
|
| 29. |
838666
|
[1] |
Leak-off line
|
|
| 30. |
947620
|
[8] |
Gasket
|
|
| 31. |
74033
|
[4] |
Hollow screw
|
|
| 32. |
861103
|
[4] |
Injector
|
SN-2203201022, M12x1,5
|
| 32. |
3803238
|
[4] |
Injector
|
SN-2203201022, M12x1,5
|
| 32. |
3803372
|
[4] |
Injector, exch
|
SN2203201023-, M14x1,5
|
| 32. |
3581696
|
[4] |
Injector
|
SN2203201023-, M14x1,5
|
| 33. |
861728
|
[4] |
Yoke
|
|
| 34. |
946470
|
[4] |
Flange screw
|
|
| 35. |
944485
|
[1] |
Cable terminal
|
|
| 36. |
965483
|
[1] |
Flange nut
|
|
| 37. |
956966
|
[1] |
Ferrule
|
|
| 38. |
956980
|
[1] |
Fitting nut
|
|
| 39. |
121563
|
[1] |
Clamp
|
|
| 40. |
946544
|
[1] |
Flange screw
|
|
| 41. |
945407
|
[1] |
Flange nut
|
|
| 42. |
861514
|
[1] |
Hollow screw
|
|
| 43. |
11994
|
[2] |
Gasket
|
|
| 44. |
838873
|
[1] |
Delivery pipe
|
Cyl 1, SN-2203201022, Injector M14x1,5-M12x1,5 pump
|
| 44. |
3581763
|
[1] |
Delivery pipe
|
Cyl 1, SN2203201023-, Injector M14x1,5-M12x1,5 pump
|
| 45. |
838874
|
[1] |
Delivery pipe
|
Cyl 2, SN-2203201022, M12x1,5-M12x1,5
|
| 45. |
3581764
|
[1] |
Delivery pipe
|
Cyl 2, SN2203201023-, Injector M14x1,5-M12x1,5 pump
|
| 46. |
838875
|
[1] |
Delivery pipe
|
Cyl 3, SN-2203201022, M12x1,5-M12x1,5
|
| 46. |
3581765
|
[1] |
Delivery pipe
|
Cyl 3, SN2203201023-, Injector M14x1,5-M12x1,5 pump
|
| 47. |
838876
|
[1] |
Delivery pipe
|
Cyl 4, SN-2203201022, M12x1,5-M12x1,5
|
| 47. |
3581766
|
[1] |
Delivery pipe
|
Cyl 4, SN2203201023-, Injector M14x1,5-M12x1,5 pump
|
| 48. |
8194351
|
[2] |
Attaching clamp
|
2-pipe
|
| 49. |
8194353
|
[2] |
Attaching clamp
|
4-pipe
|
| 50. |
861080
|
[1] |
Banjo nipple
|
|
| 51. |
3825000
|
[2] |
Hose nipple
|
(834781)
|
| 52. |
861079
|
[1] |
Banjo nipple
|
|
| 53. |
3581450
|
[1] |
Return line
|
|
| 54. |
956980
|
[1] |
Fitting nut
|
|
| 55. |
956966
|
[1] |
Ferrule
|
|
| 56. |
969299
|
[1] |
Hollow screw
|
|
| 57. |
11994
|
[2] |
Gasket
|
|
