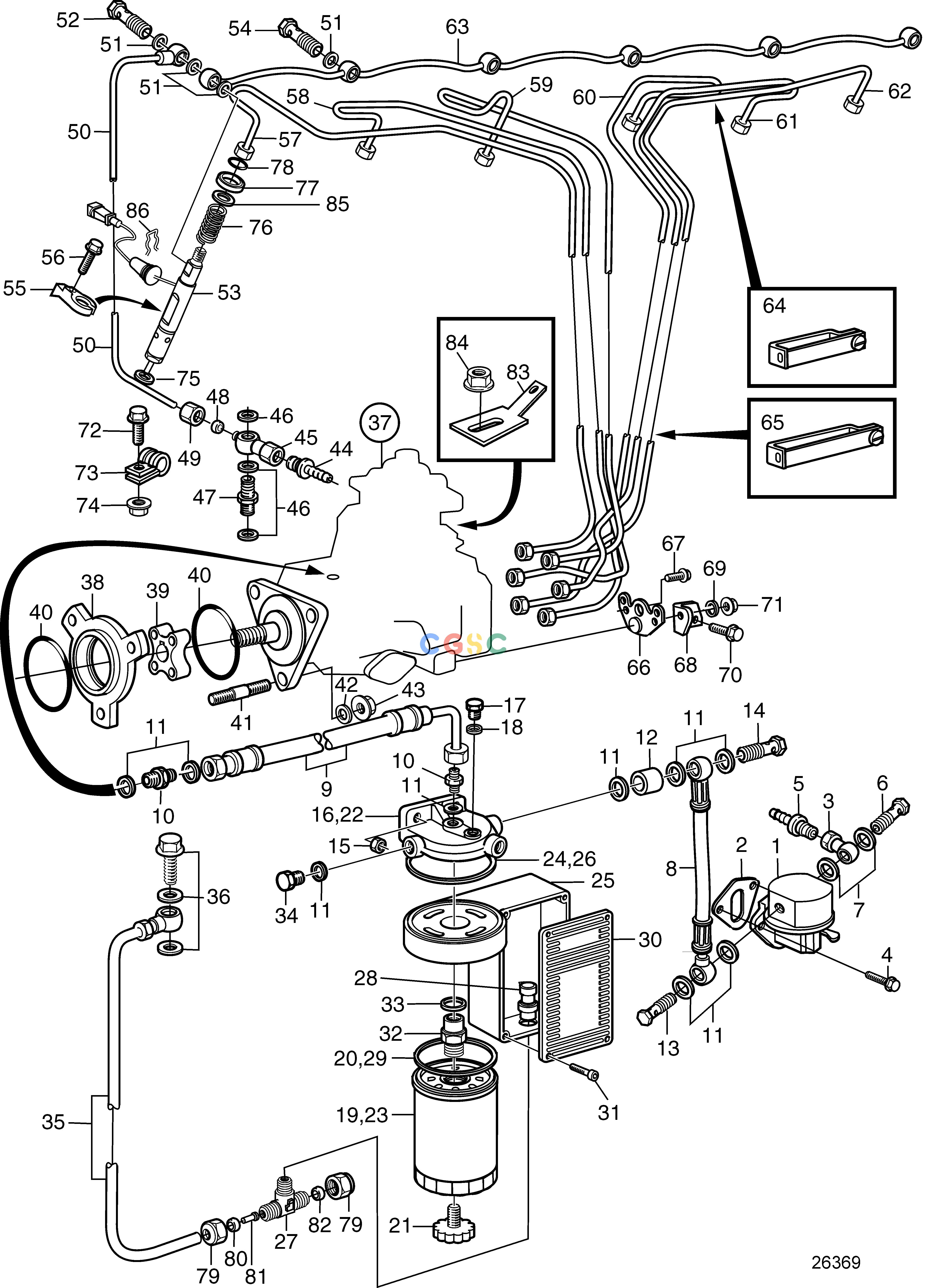

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EFuel SystemFuel System: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
485 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3582310
|
[1] |
Feed pump
|
(860320)
|
| 2. |
3501530
|
[1] |
Gasket
|
|
| 3. |
861079
|
[1] |
Banjo nipple
|
|
| 4. |
946173
|
[1] |
Flange screw
|
L=20mm
|
| 4. |
946470
|
[1] |
Flange screw
|
L=35mm
|
| 5. |
3825000
|
[1] |
Hose nipple
|
(834781)
|
| 6. |
969299
|
[1] |
Hollow screw
|
|
| 7. |
11994
|
[2] |
Gasket
|
|
| 8. |
3582708
|
[1] |
Fuel hose
|
(3581716)
|
| 9. |
3582707
|
[1] |
Fuel hose
|
(3581373)
|
| 10. |
190132
|
[2] |
Nipple
|
|
| 11. |
11994
|
[8] |
Gasket
|
|
| 12. |
3581717
|
[1] |
Spacer sleeve
|
|
| 13. |
969299
|
[1] |
Hollow screw
|
|
| 14. |
947975
|
[1] |
Hollow screw
|
|
| 15. |
971095
|
[2] |
Flange nut
|
|
| 16. |
3581542
|
[1] |
Fuel filter
|
Repl by 3588380
|
| 17. |
843956
|
[1] |
Plug
|
|
| 18. |
25534
|
[1] |
Gasket
|
|
| 19. |
860874
|
[1] |
Fuel filter
|
Repl by 3588378
|
| 20. |
3582285
|
[1] |
Sealing ring
|
|
| 21. |
838594
|
[1] |
Screw
|
|
| 22. |
3588380
|
[1] |
Fuel filter
|
|
| 22. |
|
|
|
|
| 23. |
3588378
|
[1] |
Fuel filter
|
|
| 23. |
3840335
|
[1] |
Fuel filter
|
|
| 24. |
6638088
|
[1] |
Gasket
|
|
| 25. |
874040
|
[1] |
Control unit
|
KAMD
|
| 25. |
874081
|
[1] |
Control unit
|
KAD
|
| 26. |
6638088
|
[1] |
Gasket
|
|
| 27. |
946082
|
[1] |
T-nipple
|
|
| 28. |
881708
|
[1] |
Pressure sensor
|
|
| 29. |
3582285
|
[1] |
Sealing ring
|
|
| 30. |
|
|
|
|
| 31. |
969456
|
[4] |
Six point socket scr
|
|
| 32. |
3835801
|
[1] |
Nipple
|
(3825333)
|
| 33. |
955904
|
[1] |
Washer
|
|
| 34. |
960629
|
[1] |
Plug
|
|
| 35. |
3581375
|
[1] |
Air hose
|
|
| 36. |
7738870_050
|
|
Connector
|
|
| 37. |
3581334
|
[1] |
Injection pump
|
|
| 37. |
|
|
|
|
| 38. |
3581393
|
[1] |
Spacer flange
|
|
| 39. |
859601
|
[1] |
Hub
|
|
| 40. |
968971
|
[2] |
O-ring
|
|
| 41. |
953053
|
[3] |
Stud
|
|
| 42. |
191172
|
[3] |
Washer
|
|
| 43. |
945408
|
[2] |
Flange nut
|
|
| 44. |
|
|
|
|
| 45. |
3825000
|
[1] |
Hose nipple
|
(834781)
|
| 45. |
861080
|
[1] |
Banjo nipple
|
|
| 46. |
11994
|
[3] |
Gasket
|
|
| 47. |
|
|
|
Included in fuel injection pump.
|
| 48. |
956966
|
[1] |
Ferrule
|
|
| 49. |
956980
|
[1] |
Fitting nut
|
|
| 50. |
861723
|
[1] |
Return line
|
|
| 51. |
981183
|
[13] |
Gasket
|
|
| 52. |
990036
|
[1] |
Hollow screw
|
|
| 53. |
861725
|
[6] |
Injector
|
E.U=3803373
|
| 53. |
3803373
|
[6] |
Injector
|
E.U=3803373
|
| 53. |
|
|
|
|
| 54. |
243487
|
[5] |
Hollow screw
|
|
| 55. |
3581376
|
[6] |
Yoke
|
|
| 56. |
946470
|
[6] |
Flange screw
|
|
| 57. |
3580985
|
[1] |
Delivery pipe
|
Cyl no 1
|
| 58. |
3580986
|
[1] |
Delivery pipe
|
Cyl no 2
|
| 59. |
3580987
|
[1] |
Delivery pipe
|
Cyl no 3
|
| 60. |
3580988
|
[1] |
Delivery pipe
|
Cyl no 4
|
| 61. |
3580989
|
[1] |
Delivery pipe
|
Cyl no 5
|
| 62. |
3580990
|
[1] |
Delivery pipe
|
Cyl no 6
|
| 63. |
861722
|
[1] |
Leak-off line
|
|
| 64. |
8194327
|
[4] |
Attaching clamp
|
2-pipe
|
| 65. |
3582372
|
[2] |
Clamp
|
6-pipe (8194331)
|
| 66. |
3583982
|
[1] |
Bracket
|
|
| 67. |
947542
|
[3] |
Flange screw
|
|
| 68. |
3583981
|
[1] |
Bracket
|
|
| 69. |
191172
|
[1] |
Washer
|
|
| 70. |
946440
|
[2] |
Flange screw
|
|
| 71. |
948645
|
[1] |
Flange lock nut
|
|
| 72. |
946544
|
[1] |
Flange screw
|
|
| 73. |
121563
|
[1] |
Clamp
|
|
| 74. |
945407
|
[1] |
Flange nut
|
|
| 75. |
976018
|
[6] |
O-ring
|
|
| 76. |
3580933
|
[6] |
Spring
|
For 861725
|
| 77. |
3580934
|
[6] |
Washer
|
For 861725
|
| 78. |
944988
|
[6] |
O-ring
|
|
| 79. |
954356
|
[2] |
Fitting nut
|
|
| 80. |
954364
|
[1] |
Sleeve
|
|
| 81. |
944717
|
[1] |
Support sleeve
|
|
| 82. |
943006
|
[1] |
Plug
|
|
| 83. |
944485
|
[1] |
Cable terminal
|
|
| 84. |
965483
|
[1] |
Flange nut
|
|
| 85. |
982122
|
[1] |
Washer
|
|
| 86. |
3581947
|
[1] |
Lock spring
|
|
