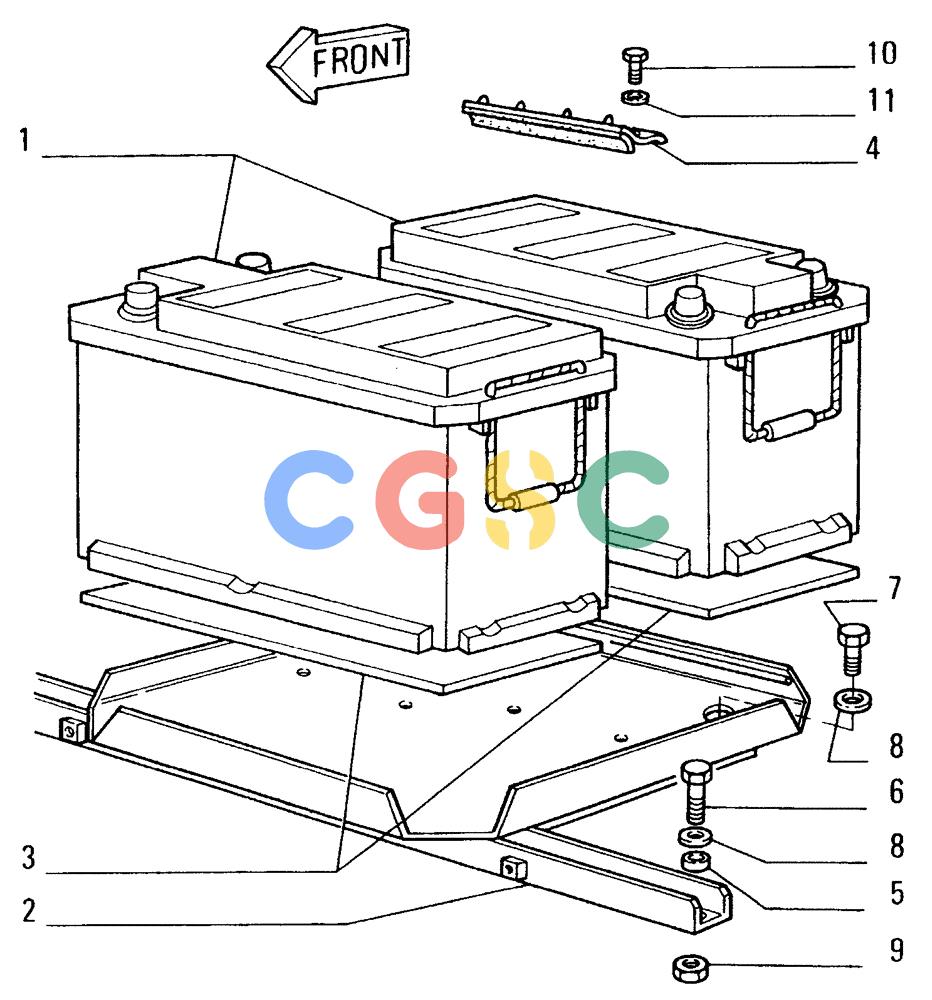

纽荷兰零件查询(FD14E) - CRAWLER DOZER (6.7010[001]) - BATTERY, SEAT AND SUPPORT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
119 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79062587 | [2] | DRY BATTERY | LECBATTERY Superseded by part number: 75128468 |
| 2. | 79088092 | [1] | CONTAINER | LEC |
| 3. | 79010787 | [2] | PLATE | LEC |
| 4. | 79084347 | [2] | BRACKET | LEC |
| 5. | 79014057 | [2] | SPACER | LEC |
| 6. | 11106631 | [2] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 7. | 11106031 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LECBOLT, Hex, M10 x 20, 10.9, Full Thd |
| 8. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 9. | 11701721 | [2] | NUT,M10, Cl 10 | LEC10x1,5x8 Superseded by part number: 17038131 |
| 10. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB8x1,25x17 Superseded by part number: 43234 |
| 11. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
