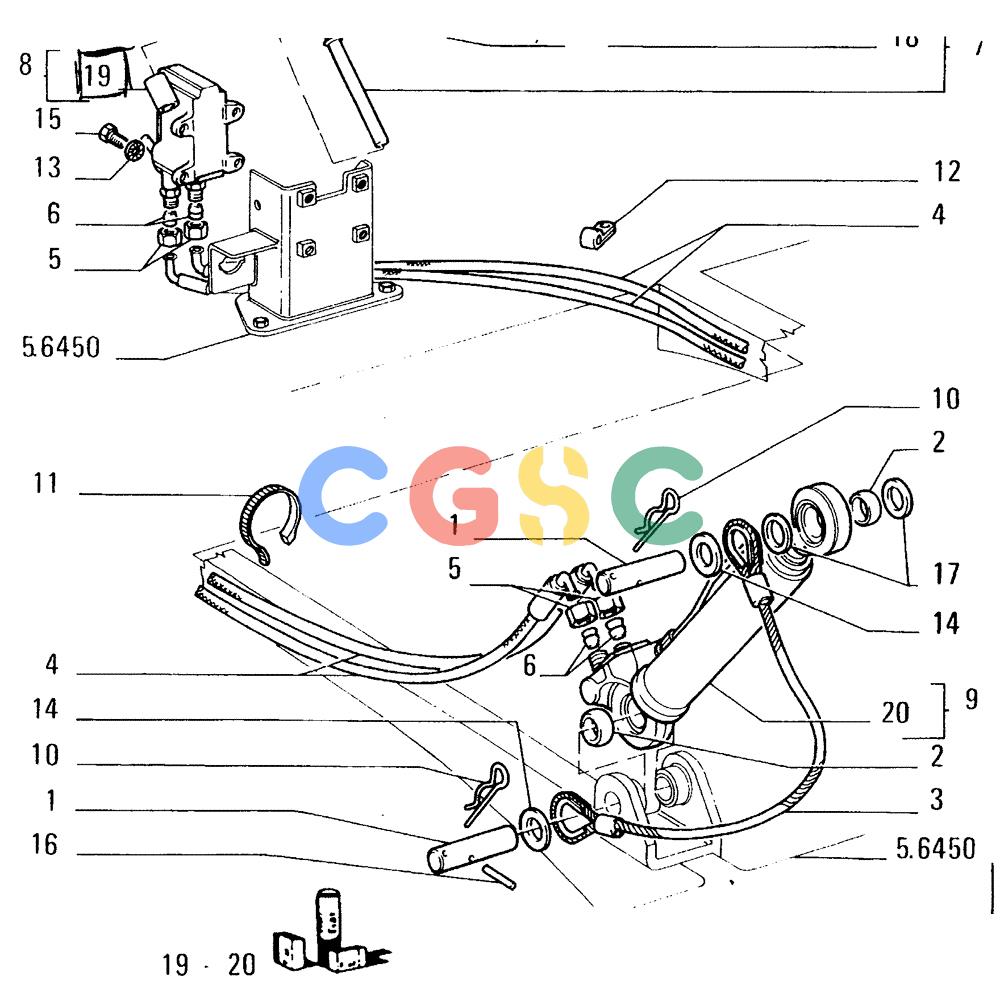

纽荷兰零件查询(FD14E) - CRAWLER DOZER (5.6780[001]) - HYDRAULIC JACK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
243 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79083656 | [2] | PIN | LEC |
| 2. | 79082636 | [1] | BUSHING | LEC |
| 3. | 79093006 | [1] | CABLE | LECTIE ROD |
| 4. | 79084977 | [2] | HYDRAULIC HOSE | LECHOSE |
| 5. | 79085567 | [4] | NUT | LEC Superseded by part number: 11260211 |
| 6. | 79085568 | [4] | BUSHING | LEC Superseded by part number: 11266411 |
| 7. | 79084830 | [1] | LEVER | LEC-ASSEMBLY |
| 8. | 79078711 | [1] | HYDRAULIC PUMP | LECPUMP-ASSEMBLY Superseded by part number: 76074723 |
| 9. | 79078594 | [1] | CYLINDER | LEC-ASSEMBLY Superseded by part number: 79102080 |
| 10. | 8287007 | [2] | LOCK PIN,11.8mm x 94.6mm L | LEC270C PIN, LOCK |
| 11. | 4982514 | [1] | CABLE TIE | LEC31F Superseded by part number: 87615202 |
| 12. | 79011405 | [1] | CLAMP | LECCLIP Superseded by part number: 86637995 |
| 13. | 10615779 | [4] | LOCK WASHER,Ext Tooth, M10 | MKTWASHER, LOCK, Ext Tooth, M10 Superseded by part number: 12605671 |
| 14. | 14497331 | [2] | WASHER,25mm ID x 44mm OD x 4mm Thk | LEC24,4x44 Superseded by part number: 86511328 |
| 15. | 11106234 | [4] | BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd | BURSCREW Superseded by part number: 11106231 |
| 16. | 14164470 | [2] | LOCK PIN,M4 x 32, Slotted | JESSPRING PIN 4,4x32 |
| 17. | 79068258 | [4] | WASHER | LEC |
| 18. | 578159 | [1] | HANDLE GRIP | MODHANDGRIP Superseded by part number: 86516720, 86516720, 9966943 |
| 19. | 79088025 | [1] | KIT | LEC |
| 20. | 79096730 | [1] | GASKET KIT | LEC |
