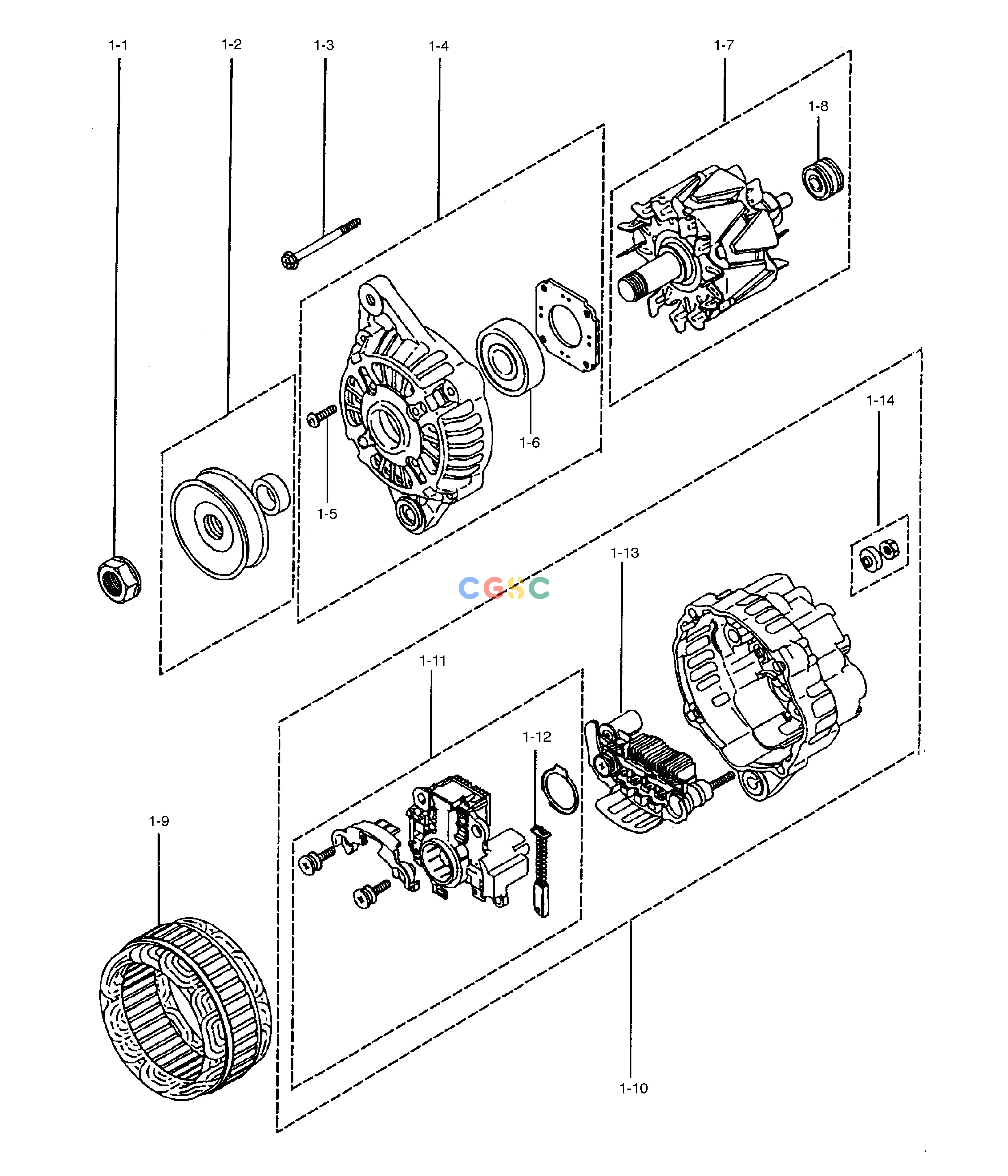

斗山零件查询ALTERNATOR SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30A68-00801
|
[1] |
ALTERNATOR 12V-40A
|
|
| 1-1. |
A981X-20771
|
[1] |
NUT;SET
|
|
| 1-10. |
A642X-33770
|
[1] |
REAR BRACKET ASS'Y
|
|
| 1-11. |
A866X-44682
|
[1] |
REGULATOR SET
|
|
| 1-12. |
A647X-50170
|
[2] |
BRUSH;SET
|
|
| 1-13. |
A860X-52870
|
[1] |
RECTIFIER ASS'Y
|
|
| 1-14. |
A529X-05571
|
[1] |
NUT;SET
|
|
| 1-2. |
A628T-62170
|
[1] |
PULLEY ASS'Y
|
|
| 1-3. |
A414X-19271
|
[1] |
BOLT;SET
|
|
| 1-4. |
A640X-67270
|
[1] |
FRONT BRACKET ASS'Y
|
|
| 1-5. |
A414X-21271
|
[1] |
SCREW;SET
|
|
| 1-6. |
A930X-94570
|
[1] |
BEARING;FRONT
|
|
| 1-7. |
A880X-83670
|
[1] |
ROTOR ASS'Y
|
|
| 1-8. |
S930P-63670
|
[1] |
BEARING;REAR
|
|
| 1-9. |
A383T-37470
|
[1] |
STATOR ASS'Y
|
|
