斗山零件查询COOLING PARTS SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
683 次

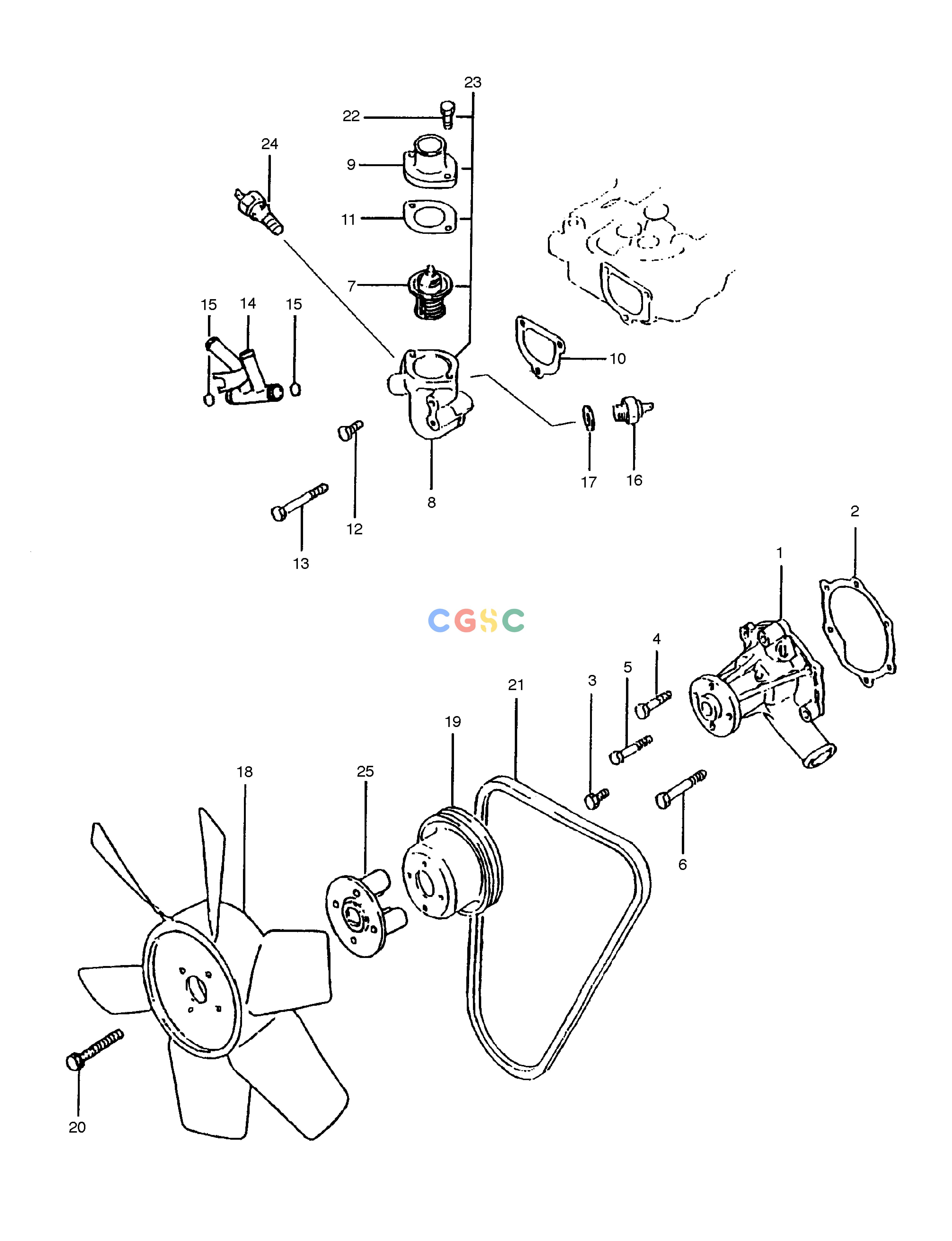

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
MM433-17001
|
[1] |
WATER PUMP ASS'Y
|
|
| 10. |
30L46-05100
|
[1] |
GASKET;THERMO FITTING
|
|
| 11. |
MM432-13502
|
[1] |
GASKET;THERMOSTAT
|
|
| 12. |
MF101228
|
[2] |
BOLT
|
|
| 13. |
MF101241
|
[1] |
BOLT
|
|
| 14. |
30L46-04200
|
[1] |
BYPASS PIPE ASS'Y
|
|
| 15. |
MF520004
|
[2] |
O-RING
|
|
| 16. |
MM432104
|
[1] |
SWITCH ASS'Y
|
|
| 17. |
30636-25901
|
[1] |
GASKET
|
|
| 18. |
MM409-350
|
[1] |
FAN;COOLING
|
|
| 19. |
K9674-051
|
[1] |
PULLEY;WATER PUMP
|
|
| 2. |
30L45-05100
|
[1] |
GASKET;WATER PUMP
|
|
| 20. |
MF241229
|
[4] |
BOLT;WITH WASHER
|
|
| 21. |
MD079696
|
[1] |
V-BELT
|
|
| 22. |
30L46-03501
|
[1] |
BOLT
|
|
| 23. |
30L46-03082
|
[2] |
THERMOSTAT ASS'Y
|
|
| 24. |
05204-50300
|
[1] |
UNIT;THERMO
|
|
| 25. |
MM434-493
|
[1] |
SPACER;FAN
|
|
| 3. |
MF101228
|
[2] |
BOLT
|
|
| 4. |
MF101235
|
[1] |
BOLT
|
|
| 5. |
MF101238
|
[1] |
BOLT
|
|
| 6. |
MF101240
|
[2] |
BOLT
|
|
| 7. |
MM433-54801
|
[1] |
THERMOSTAT
|
|
| 8. |
MM435-02901
|
[1] |
FITTING;THERMOST
|
|
| 9. |
MM432-08201
|
[1] |
FITTING;WATER OUTLET
|
|
