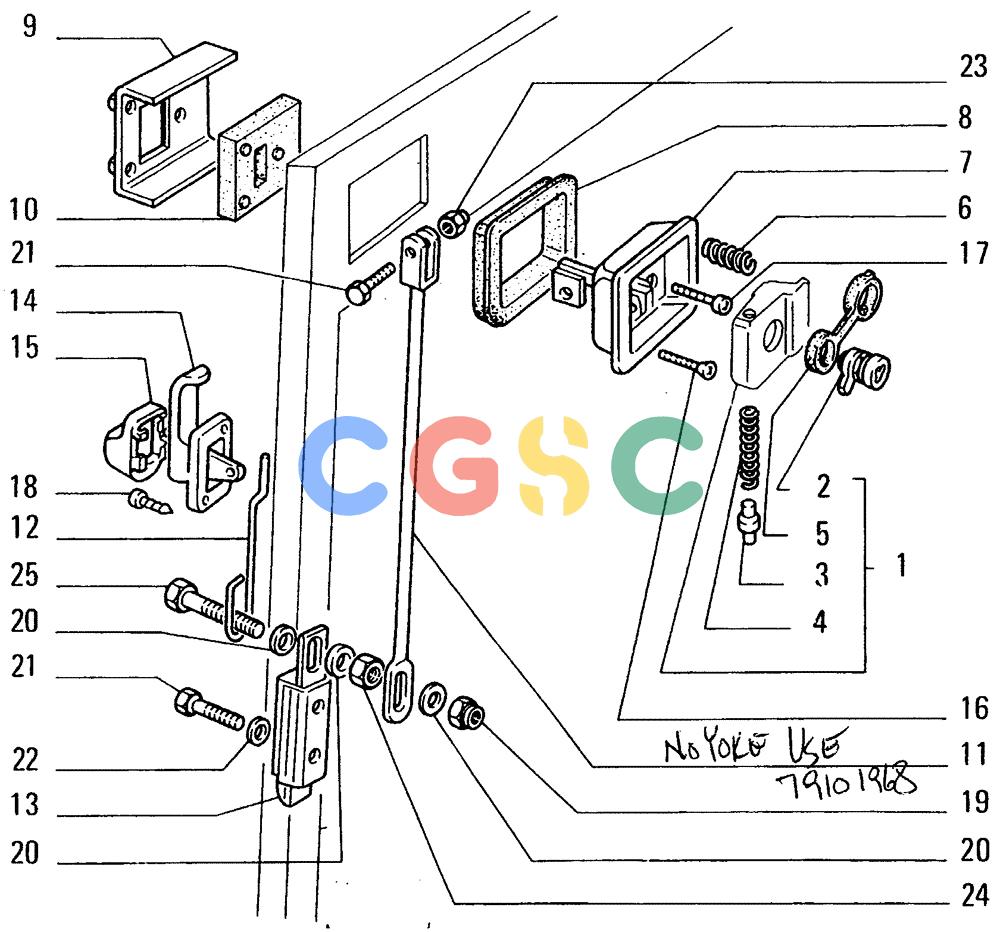

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6520[008]) - ROPS CAB-LOCK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
977 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79079632 | [1] | HANDLE | LEC- ASSEMBLY RIGHT |
| 1. | 79079636 | [1] | HANDLE | LEC- ASSEMBLY LEFT |
| 2. | 79076867 | [1] | LOCK CYLINDER | LEC |
| 3. | 79079634 | [2] | PIN | LEC |
| 4. | 79079635 | [1] | SPRING | LEC |
| 5. | 79091287 | [1] | PLUG | LEC |
| 6. | 76011544 | [2] | SPRING | LEC |
| 7. | 79076801 | [1] | HANDLE | LECBODY - RIGHT |
| 7. | 79076808 | [1] | BODY | LEC- LEFT |
| 8. | 79031814 | [2] | GASKET | LECSEAL |
| 9. | 79097433 | [2] | RETAINER | LEC Superseded by part number: 79101654 |
| 10. | 79096046 | [2] | GASKET | LECSEAL |
| 11. | 79097434 | [2] | TIE-ROD | LECTIEROD |
| 12. | 79097435 | [1] | TIE-ROD | LECTIEROD |
| 12. | 79097436 | [1] | TIE-ROD | LECTIEROD Superseded by part number: 79097435 |
| 13. | 79073382 | [2] | LOCK | LEC Superseded by part number: 87352215 |
| 14. | 93918461 | [2] | LOCKING HANDLE | LECHANDLE |
| 15. | 93918448 | [2] | PLATE | LEC |
| 16. | 13313417 | [2] | SCREW,Pozidriv Oval Hd, Csk, M6 x 25mm, Cl 5.8, Full Thd | IMO |
| 17. | 13276617 | [4] | SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd | IMO |
| 18. | 13274417 | [4] | SCREW,Pozidriv Pan Hd, M5 x 20mm, Cl 5.8 | LEC Superseded by part number: 86511827 |
| 19. | 16104121 | [2] | NUT,M8 x 1.25, Cl 10 | LECNUT, LOCK, M8 x 1.25, Cl 10 Superseded by part number: 17152821 |
| 20. | 14496531 | [6] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 21. | 10902631 | [6] | BOLT,Hex, M6 x 25mm, Cl 10.9 | BHB Superseded by part number: 10902633 |
| 22. | 14496431 | [4] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 23. | 12574221 | [2] | NUT,M6 x 1, Cl 10 | LECNUT, LOCK, M6 x 1, Cl 10 |
| 24. | 16100821 | [2] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 25. | 14238421 | [2] | SCREW | LEC8x1,25x30 |
