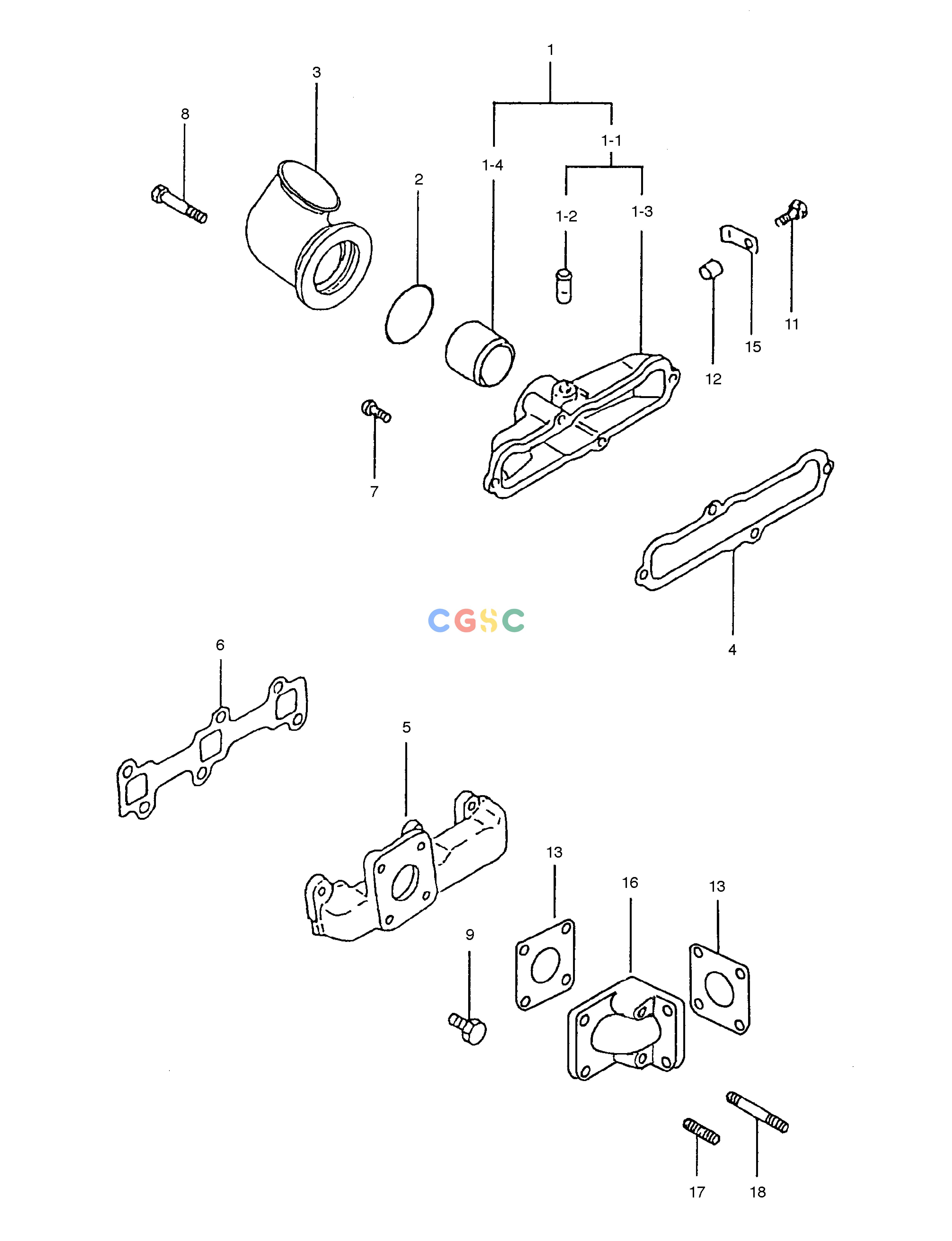

斗山零件查询INTAKE & EXHAUST PARTS SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
124 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30L30-00020
|
[1] |
INTAKE COVER ASS'Y
|
|
| 1-1. |
MM433139
|
[1] |
INTAKE COVER SUB ASS'Y
|
|
| 1-2. |
NA00793
|
[1] |
|
|
| 1-3. |
NA00392
|
[1] |
COUVERCLE
|
|
| 1-4. |
30L30-02200
|
[1] |
PIPE;INTAKE
|
|
| 11. |
MF240-024
|
[1] |
BOLT;WITH WASHER
|
|
| 12. |
30L30-02500
|
[1] |
SPACER
|
|
| 13. |
30A30-00100
|
[3] |
GASKET
|
|
| 15. |
30L30-02400
|
[1] |
PLATE
|
|
| 16. |
MM315-745
|
[1] |
ELBOW;EXHAUST
|
|
| 17. |
MM401-934
|
[2] |
STUD
|
|
| 18. |
MM402-574
|
[2] |
STUD
|
|
| 2. |
F3150-04200
|
[1] |
O-RING
|
|
| 3. |
30L30-02900
|
[1] |
PIPE;INTAKE
|
|
| 4. |
30L30-05200
|
[1] |
GASKET;INLET MANIFOLD
|
|
| 5. |
MM433547
|
[1] |
EXHAUST MANIFOLD ASS'Y
|
|
| 6. |
MM432-12901
|
[1] |
GASKET;EXHAUST
|
|
| 7. |
MF101228
|
[2] |
BOLT
|
|
| 8. |
MF101238
|
[2] |
BOLT
|
|
| 9. |
MF101257
|
[6] |
BOLT
|
|
