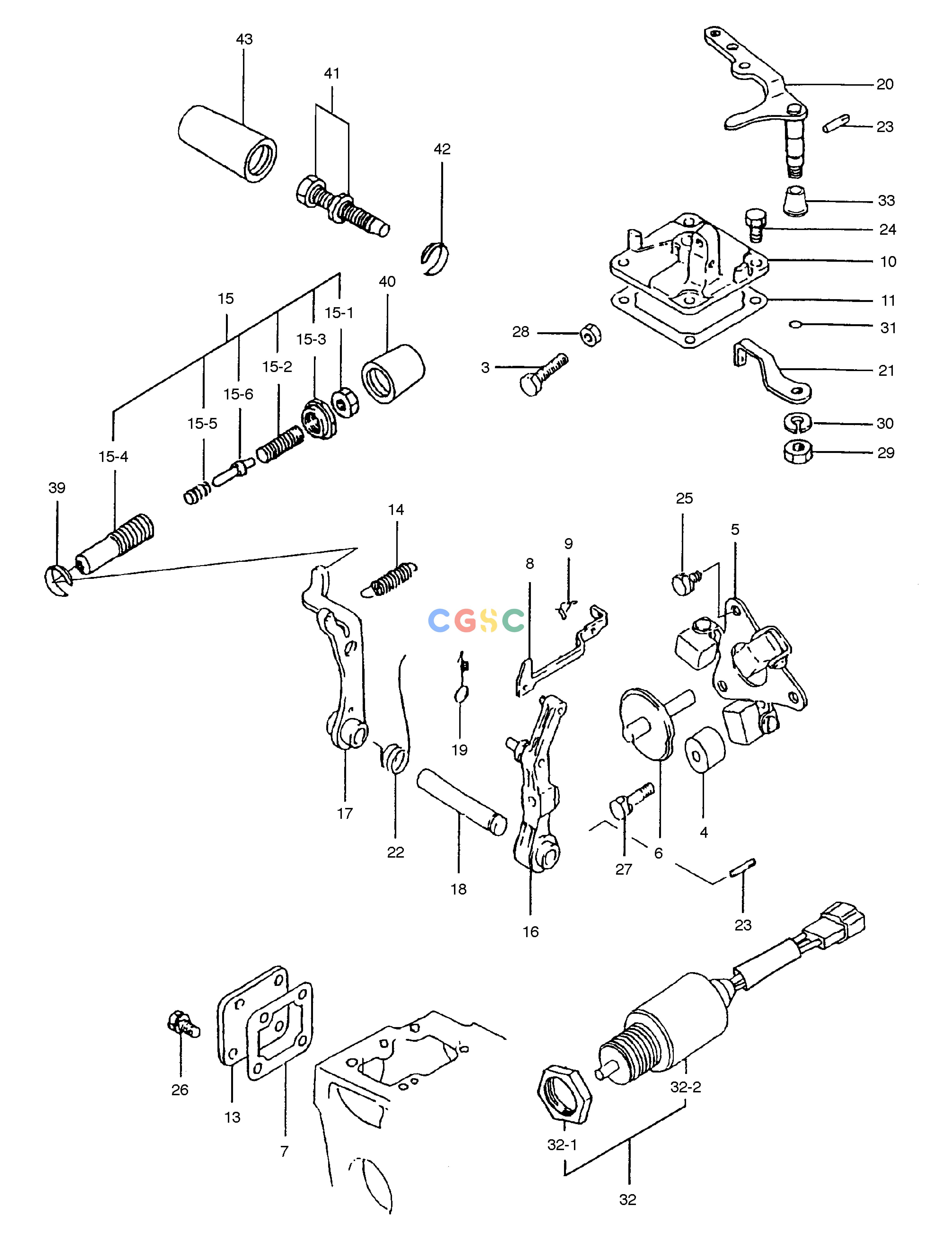

斗山零件查询GOVERNOR PARTS SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
968 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
30L63-01500
|
[1] |
COVER;GOVERNOR
|
|
| 11. |
30L63-05100
|
[1] |
GASKET;GOV COVER
|
|
| 13. |
MM433627
|
[1] |
COVER;TIE ROD
|
|
| 14. |
MM434-585
|
[1] |
SPRING;GOVERNOR
|
|
| 15. |
30L63-01600
|
[1] |
SPRING SET;TORQUE
|
|
| 15-1. |
HD000961
|
[1] |
NUT
|
|
| 15-2. |
MD019845
|
[1] |
SCREW;ADJUSTING
|
|
| 15-3. |
30L63-00600
|
[1] |
NUT
|
|
| 15-4. |
MM434542
|
[1] |
CASE
|
|
| 15-5. |
MM435203
|
[1] |
SPRING
|
|
| 15-6. |
MM435-785
|
[1] |
STOPPER
|
|
| 16. |
MM434830
|
[1] |
GOVERNOR LEVER ASS'Y
|
|
| 17. |
MM434832
|
[1] |
TENSION LEVER ASS'Y
|
|
| 18. |
MM434872
|
[1] |
SHAFT;GOVERNOR
|
|
| 19. |
MM435-19801
|
[1] |
SPRING;TIE ROD
|
|
| 20. |
MM435889
|
[1] |
LEVER ASS'Y
|
|
| 21. |
MM437431
|
[1] |
LEVER;GOVERNOR
|
|
| 22. |
MM437-659
|
[1] |
SPRING;START
|
|
| 23. |
MM409239
|
[2] |
PIN;GROOVED
|
|
| 24. |
MF101225
|
[4] |
BOLT
|
|
| 25. |
MF241222
|
[2] |
BOLT;WITH WASHER
|
|
| 26. |
MF241224
|
[4] |
BOLT;WITH WASHER
|
|
| 27. |
MF241229
|
[1] |
BOLT;WITH WASHER
|
|
| 28. |
MF430004
|
[1] |
NUT
|
|
| 29. |
MF430725
|
[1] |
NUT;JAM
|
|
| 3. |
MM401080
|
[1] |
BOLT;HIGH SPEED SET
|
|
| 30. |
MF450405
|
[1] |
WASHER;SPRING
|
|
| 31. |
MF520002
|
[1] |
O-RING
|
|
| 32. |
30L87-01010
|
[1] |
SOLENOID & NUT SET
|
|
| 32-1. |
MM409671
|
[1] |
NUT
|
|
| 32-2. |
30L87-01100
|
[1] |
SOLENOID ASS'Y
|
|
| 33. |
MM438-721
|
[1] |
COVER;GOVERNOR SHAFT
|
|
| 39. |
30L63-00700
|
[1] |
C-RING;TORQUE SET
|
|
| 4. |
MM403988
|
[1] |
STOPPER
|
|
| 40. |
30L63-00800
|
[1] |
COVER;TORQUE SET
|
|
| 41. |
30L63-00030
|
[1] |
BOLT;HIGH SPEED SET
|
|
| 42. |
30L63-02600
|
[1] |
C-RING;HIGH SPEED SET
|
|
| 43. |
30L63-02400
|
[1] |
COVER;TORQUE SET
|
|
| 5. |
30L63-00050
|
[1] |
GOVERNOR WEIGHT ASS'Y
|
|
| 6. |
MM409-138
|
[1] |
SLIDING SHAFT ASS'Y
|
|
| 7. |
30L63-05200
|
[1] |
GASKET;TIE ROD COVER
|
|
| 8. |
MM433220
|
[1] |
ROD;TIE
|
|
| 9. |
30L63-03700
|
[1] |
CLIP;TIE ROD
|
|
