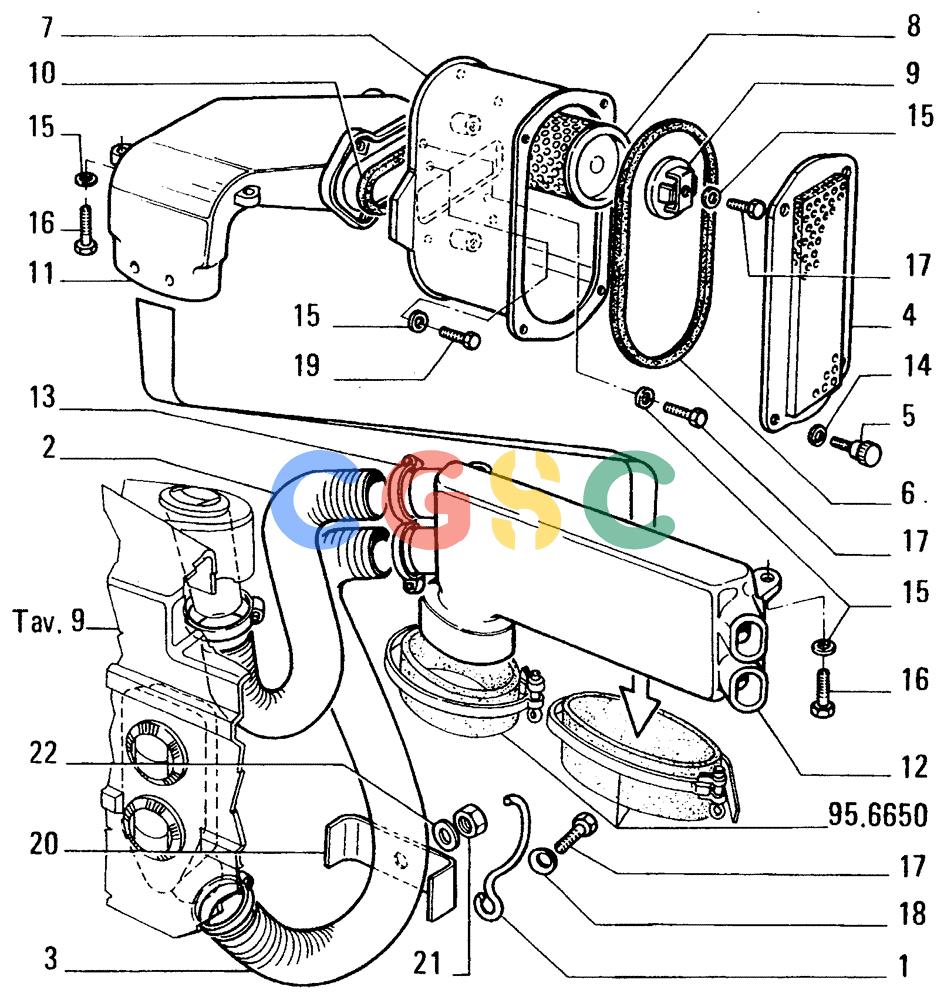

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6520[011]) - ROPS CAB-AIR DUCT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
428 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79095965 | [1] | HOOK | LEC |
| 2. | 79095999 | [2] | FLEXIBLE HOSE | LECSLEEVE |
| 3. | 79096000 | [2] | FLEXIBLE HOSE | LECSLEEVE |
| 4. | 79093945 | [1] | COVER | LEC |
| 5. | 76012988 | [4] | KNOB | LEC |
| 6. | 79093982 | [1] | BRAKE LINING | LECSEAL |
| 7. | 79093950 | [1] | ENVELOPE | LECHOLDER |
| 8. | 79079496 | [2] | FILTER | LEC Superseded by part number: 1930732 |
| 9. | 79093972 | [2] | BRACKET | LEC |
| 10. | 79093983 | [1] | BRAKE LINING | LECSEAL |
| 11. | 79085212 | [1] | CONVEYOR | LECSHROUD |
| 12. | 79085213 | [1] | CONVEYOR | LECSHROUD |
| 13. | 79083849 | [8] | HOSE CLAMP,M70-90 | LECCLAMP, HOSE, M70-90 Superseded by part number: 71404504 |
| 14. | 11065471 | [4] | SNAP RING,M6, Ext | LECRING, LOCKING, M6, Ext Superseded by part number: 86507012 |
| 15. | 14496431 | [4] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 15. | 14496531 | [10] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 16. | 16043931 | [5] | SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043934 |
| 17. | 16043231 | [7] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LECSCREW 8x1,25x16 |
| 18. | 12645031 | [2] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 19. | 10902231 | [4] | SCREW,Hex, M6 x 16mm, Cl 10.9 | LECBOLT, Hex, M6 x 16, 10.9 Superseded by part number: 86639037 |
| 20. | 79100343 | [1] | PLATE | LECD2709 |
| 21. | 11701721 | [1] | NUT,M10, Cl 10 | LEC10x1,5x8 D2709 Superseded by part number: 17038131 |
| 22. | 14496631 | [1] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LECD2709 M10 x 21 x 2 Superseded by part number: 14496621 |
