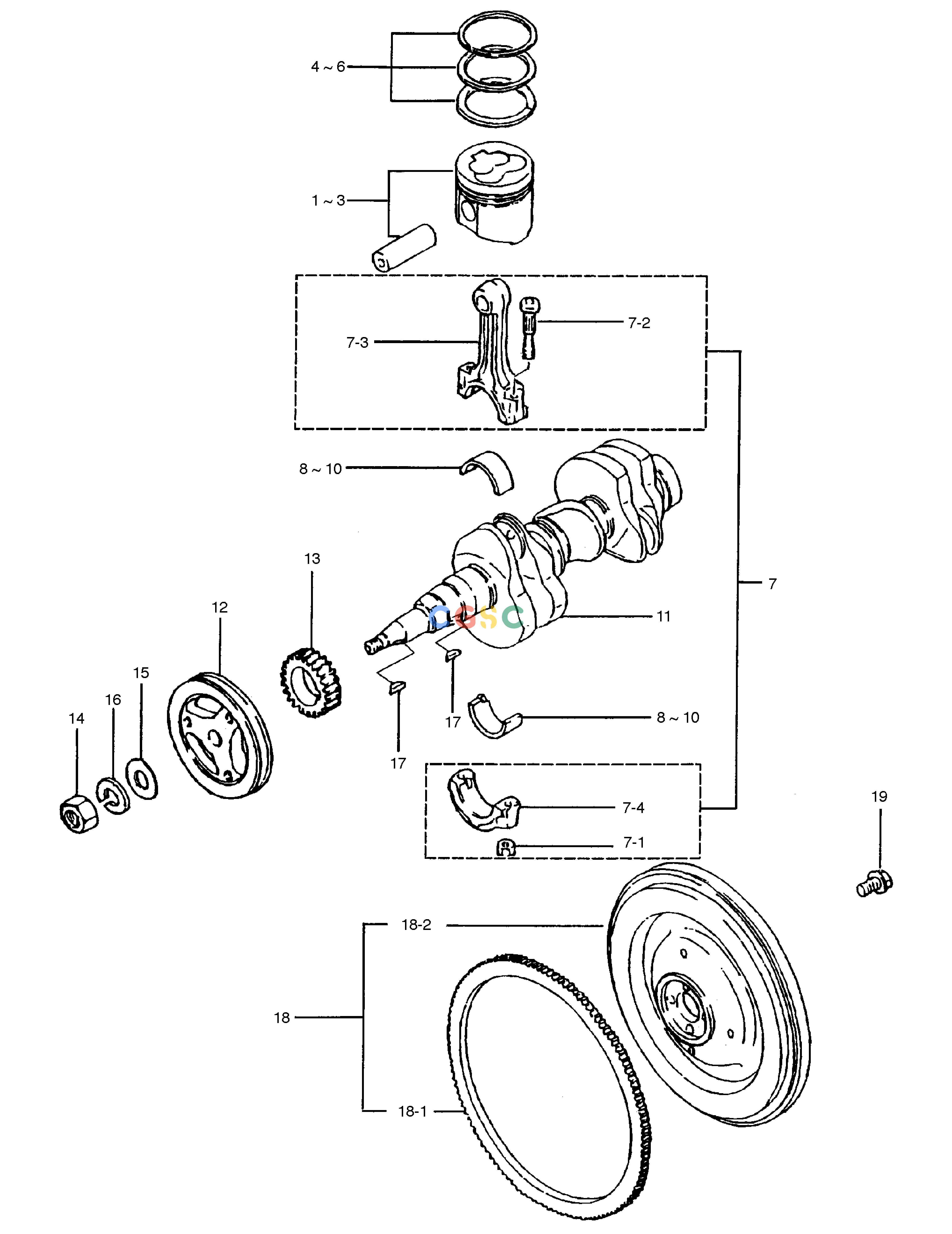

斗山零件查询MAIN MOVING PARTS SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
835 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30L17-00010
|
[3] |
PISTON STD
|
|
| 10. |
MM438-80801
|
[3] |
METAL SET;CON-ROD 0.50
|
|
| 11. |
30L20-00500
|
[1] |
CRANK;SHAFT
|
|
| 12. |
30L20-00700
|
[1] |
PULLEY;CRANK SHAFT
|
|
| 13. |
MM432887
|
[1] |
GEAR;CRANK SHAFT
|
|
| 14. |
MF430845
|
[1] |
NUT;JAM
|
|
| 15. |
MF450009
|
[1] |
WASHER;PLAIN
|
|
| 16. |
MF450409
|
[1] |
WASHER;SPRING
|
|
| 17. |
MF476214
|
[2] |
KEY;WOODRUFF
|
|
| 18. |
MM437-477
|
[1] |
FLYWHEEL ASS'Y
|
|
| 18-1. |
MD030629
|
[1] |
GEAR;RING
|
|
| 18-2. |
NA00463
|
[1] |
|
|
| 19. |
MD075878
|
[4] |
BOLT;FLYWHEEL
|
|
| 2. |
30L17-00020
|
[3] |
PISTON 0.25
|
|
| 3. |
30L17-00030
|
[3] |
PISTON 0.50
|
|
| 4. |
MM433713
|
[3] |
RING SET;PISTON STD
|
|
| 5. |
MM434344
|
[3] |
RING SET;PISTON 0.25
|
|
| 6. |
MM434345
|
[3] |
RING SET;PISTON 0.50
|
|
| 7. |
30L19-00051
|
[3] |
CONNECTING ROD ASS'Y
|
|
| 7-1. |
MD000704
|
[6] |
NUT
|
|
| 7-2. |
MD000-705
|
[6] |
BOLT;CONNECTING
|
|
| 7-3. |
NA01004
|
[3] |
|
|
| 7-4. |
NA00308
|
[3] |
|
|
| 8. |
MM438-80601
|
[3] |
METAL SET;CON-ROD STD
|
|
| 9. |
MM438-80701
|
[3] |
METAL SET;CON-ROD 0.25
|
|
