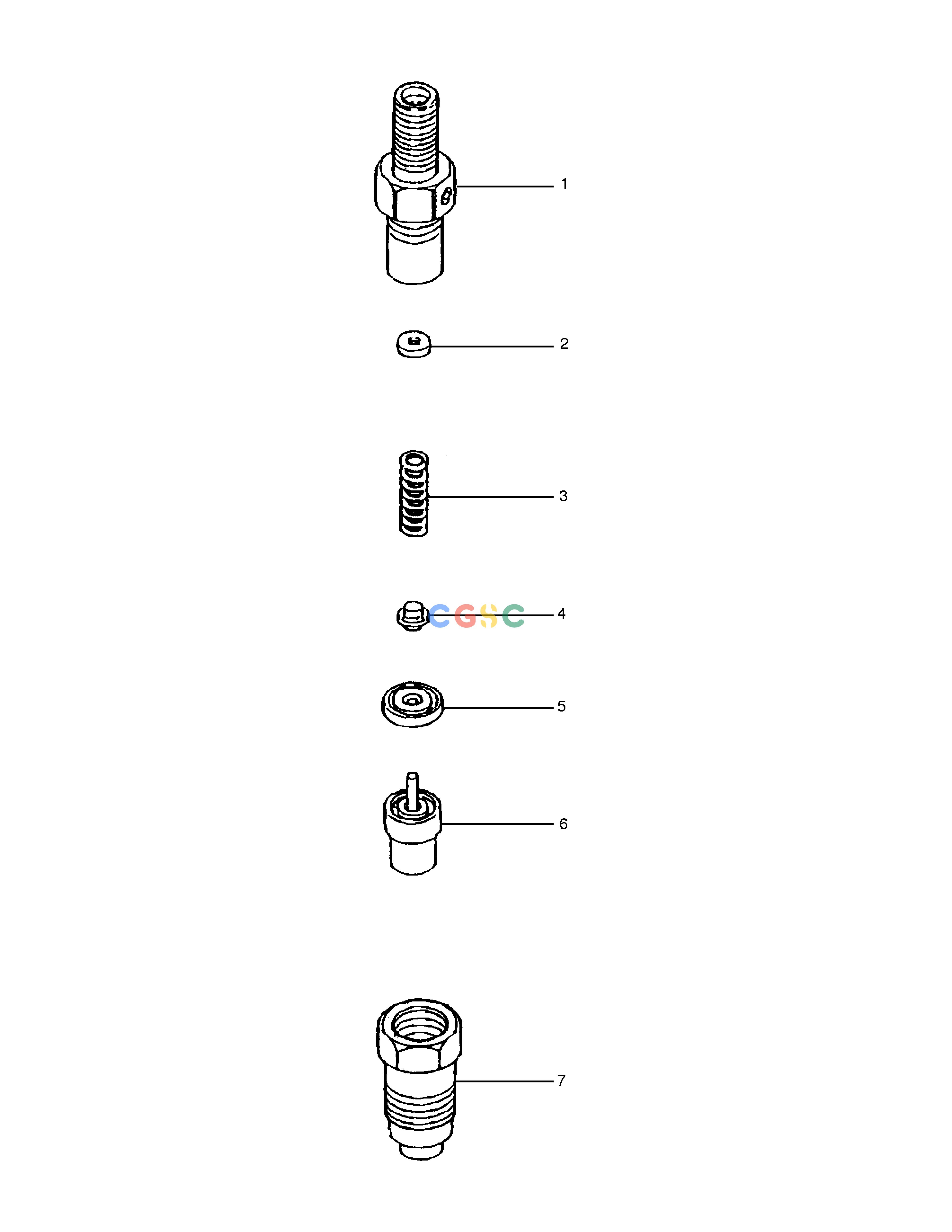

斗山零件查询NOZZLE & NOZZLE HOLDER SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
573 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
MM435-94101
|
[3] |
NOZZLE & HOLDER ASS'Y
|
|
| 1. |
09311-03840
|
[3] |
BODY SUB ASS'Y
|
|
| 2. |
09317-51810
|
[AR] |
WASHER T=1.25
|
|
| 2. |
09317-51830
|
[AR] |
WASHER T=1.30
|
|
| 2. |
09317-51850
|
[AR] |
WASHER T=1.35
|
|
| 2. |
09317-51870
|
[AR] |
WASHER T=1.40
|
|
| 2. |
09317-51890
|
[AR] |
WASHER T=1.45
|
|
| 2. |
09317-51910
|
[AR] |
WASHER T=1.50
|
|
| 2. |
09317-51930
|
[AR] |
WASHER T=1.55
|
|
| 2. |
09317-51950
|
[AR] |
WASHER T=1.60
|
|
| 2. |
09317-51970
|
[AR] |
WASHER T=1.65
|
|
| 2. |
09317-51990
|
[AR] |
WASHER T=1.70
|
|
| 3. |
09312-70310
|
[3] |
SPRING;PRESSURE
|
|
| 4. |
09312-10380
|
[3] |
PIN;PRESSURE
|
|
| 5. |
09317-40070
|
[3] |
PIECE;DISTANCE
|
|
| 6. |
09340-05060
|
[3] |
NOZZLE ASS'Y
|
|
| 7. |
09316-41351
|
[3] |
NUT;RETAINING
|
|
