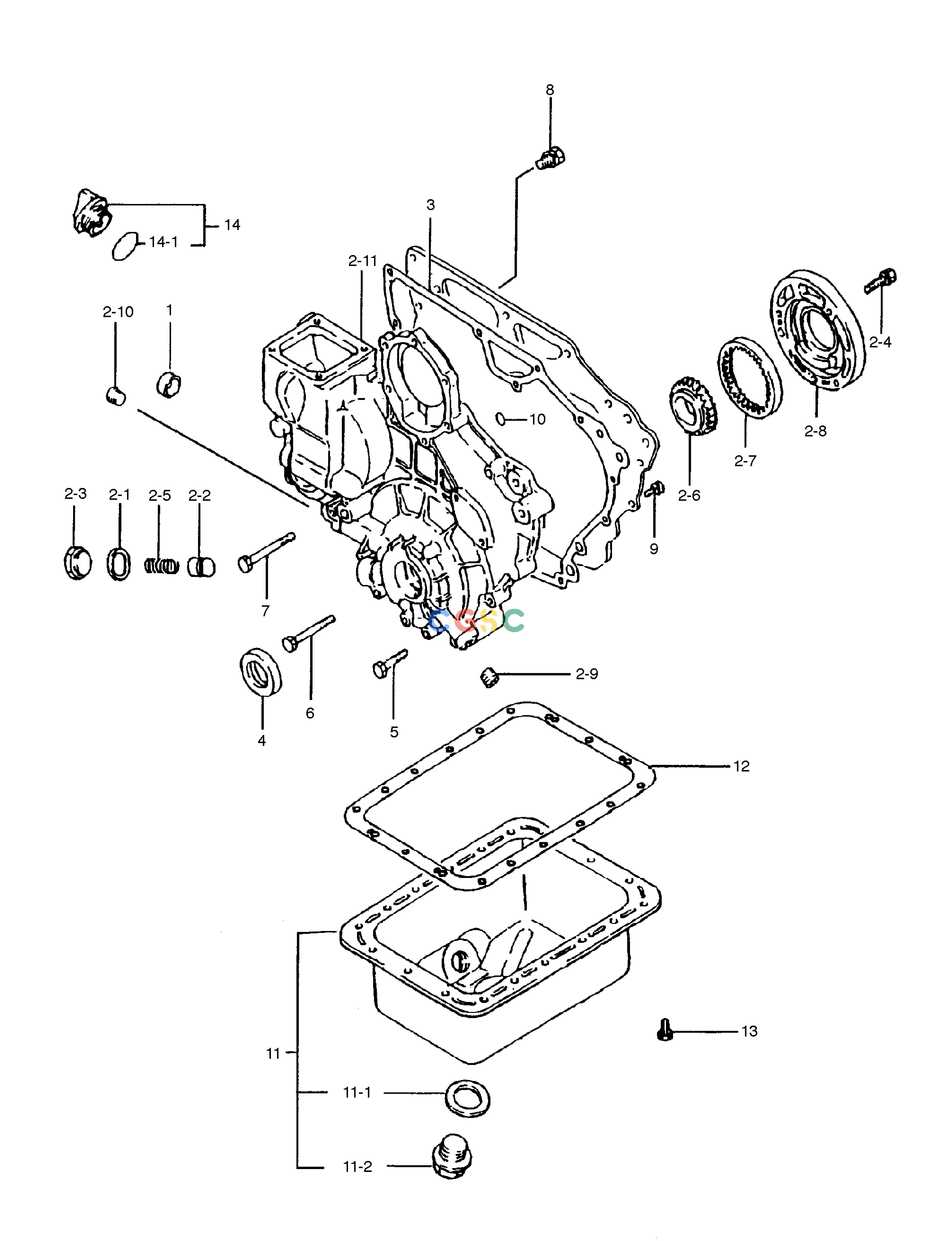

斗山零件查询OIL PAN & GEAR CASE SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
727 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
MM432235
|
[1] |
CAP;SEALING
|
|
| 10. |
MF520007
|
[2] |
O-RING
|
|
| 11. |
MM437065
|
[1] |
OIL PAN ASS'Y
|
|
| 11-1. |
MD000312
|
[1] |
GASKET
|
|
| 11-2. |
MD000318
|
[1] |
PLUG;OIL DRAIN
|
|
| 12. |
30L13-05200
|
[1] |
GASKET;OIL PAN
|
|
| 13. |
MF241223
|
[18] |
BOLT;WITH WASHER
|
|
| 14. |
MM300540
|
[1] |
OIL FILTER CAP ASS'Y
|
|
| 14-1. |
MF520402
|
[1] |
O-RING
|
|
| 2. |
30L11-00040
|
[1] |
GEAR CASE ASS'Y
|
|
| 2-1. |
MD000312
|
[1] |
GASKET
|
|
| 2-10. |
MS661140
|
[1] |
PLUG;TAPER
|
|
| 2-11. |
30L11-00020
|
[1] |
GEAR CASE SUB ASS'Y
|
|
| 2-2. |
MD001402
|
[1] |
PLUNGER
|
|
| 2-3. |
MD001404
|
[1] |
PLUG
|
|
| 2-4. |
MF241231
|
[3] |
BOLT;WITH WASHER
|
|
| 2-5. |
MM433353
|
[1] |
SPRING;RELIEF
|
|
| 2-6. |
MM433793
|
[1] |
GEAR;OIL PUMP INNER
|
|
| 2-7. |
MM433794
|
[1] |
GEAR;OIL PUMP OUTER
|
|
| 2-8. |
MM434466
|
[1] |
HOUSING;OIL PUMP
|
|
| 2-9. |
MS661121
|
[1] |
PLUG;TAPER
|
|
| 3. |
30L11-05100
|
[1] |
GASKET;GEAR CASE
|
|
| 4. |
MD008883
|
[1] |
SEAL;OIL
|
|
| 5. |
MF101235
|
[3] |
BOLT
|
|
| 6. |
MF101240
|
[4] |
BOLT
|
|
| 7. |
MF101242
|
[1] |
BOLT
|
|
| 8. |
MF240051
|
[3] |
BOLT;WITH WASHER
|
|
| 9. |
MF241224
|
[4] |
BOLT;WITH WASHER
|
|
