纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6520[015]) - ROPS CAB-ELECTRICAL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
309 次

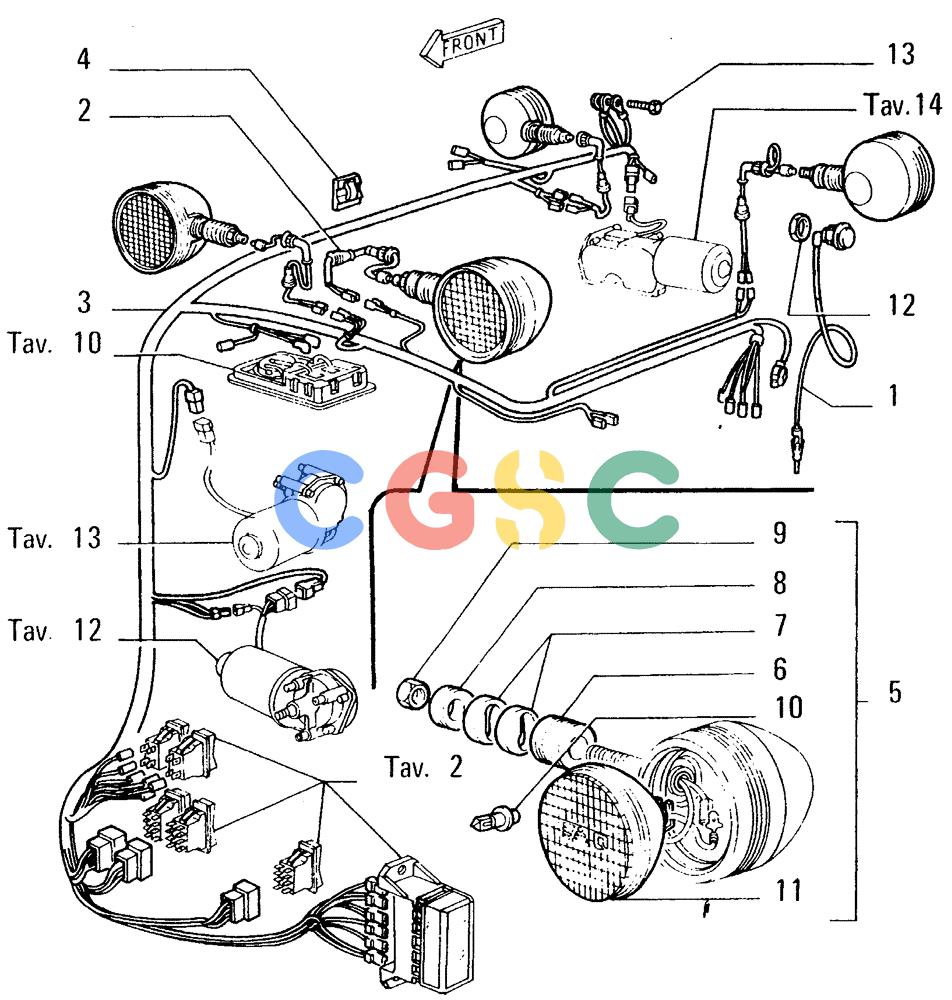

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79089196 | [1] | ELECTRIC CABLE | LECCABLE Superseded by part number: 71480988 |
| 2. | 79087249 | [4] | ELECTRIC CABLE | LECCABLE |
| 3. | 79096068 | [1] | ELECTRIC CABLE | LECCABLE |
| 4. | 76008277 | [14] | CLAMP | LEC |
| 5. | 79073816 | [4] | HEADLAMP | LECFLOODLIGHT - ASSEMBLY Superseded by part number: 79073819 |
| 5. | 79094051 | [2] | HEADLAMP | LECFLOODLIGHT - RIGHT ASSEMBLY Superseded by part number: 79093993, 14151690 |
| 5. | 79097886 | [2] | HEADLAMP | LECFLOODLIGHT - LEFT ASSEMBLY Superseded by part number: 79097888 |
| 6. | 79073822 | [1] | SPACER | LEC |
| 7. | 79073823 | [2] | PAD | LECBLOCK |
| 8. | 79073824 | [1] | WASHER | LEC |
| 9. | 79073825 | [1] | NUT | LEC Superseded by part number: 10726711 |
| 10. | 79069460 | [1] | BULB | LECLAMP Superseded by part number: 14151690 |
| 11. | 79080111 | [1] | HEADLAMP LENS | LECREFLECTOR Superseded by part number: 79102125 |
| 12. | 10727720 | [1] | NUT,Thin, M20 x 1.5, Cl 05, LH | LEC |
| 13. | 16043031 | [1] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
