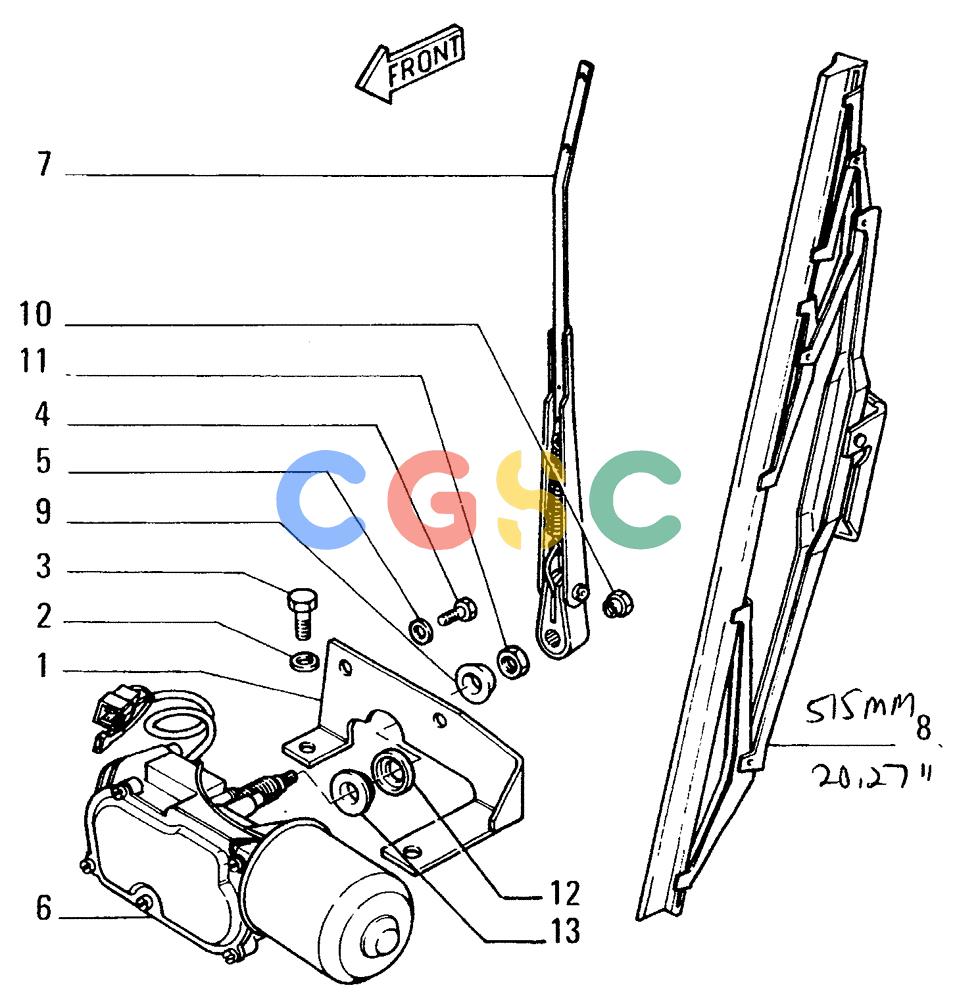

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6520[014]) - ROPS CAB-REAR WINDSHIELD WIPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79084413 | [1] | BRACKET | LEC Superseded by part number: 79089016 |
| 2. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 3. | 16043031 | [2] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 4. | 10902231 | [2] | SCREW,Hex, M6 x 16mm, Cl 10.9 | LECBOLT, Hex, M6 x 16, 10.9 Superseded by part number: 86639037 |
| 5. | 12640621 | [2] | WASHER,6.15mm ID x 25mm OD x 2mm Thk | LEC Superseded by part number: 12640601 |
| 6. | 79087780 | [1] | SMALL ELECTRIC MOTOR | LECELECTRIC MOTOR |
| 7. | 79080886 | [1] | WIPER ARM | LECARM |
| 8. | 79073503 | [1] | COMMUTATOR BRUSH | LECBRUSH |
| 9. | 79020836 | [1] | WASHER | LECSPACER |
| 10. | 79089198 | [1] | NUT | LEC |
| 11. | 10790921 | [1] | THIN NUT,Thin, M16 x 1.5, Cl 05 | LECThin, M16 x 1.5. Cl 05 |
| 12. | 79026139 | [1] | CUP | LEC |
| 13. | 79020834 | [1] | RING | LEC |
