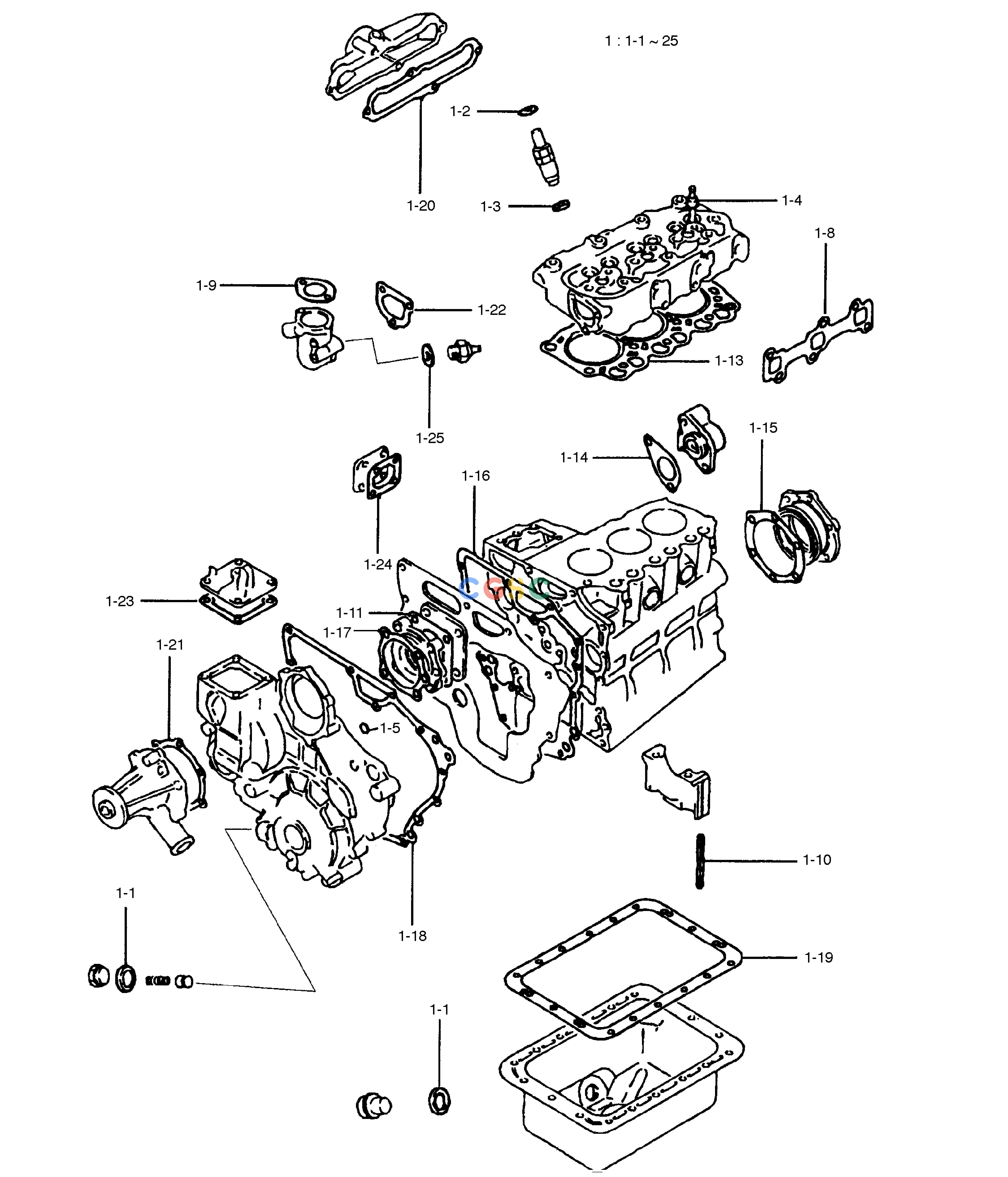

斗山零件查询REPAIR GASKET KIT SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30194-06031
|
[1] |
GASKET KIT
|
|
| 1-1. |
MD000312
|
[2] |
GASKET
|
|
| 1-10. |
MM432214
|
[4] |
SEAL;SIDE
|
|
| 1-11. |
30A11-00101
|
[1] |
GASKET;O/PUMP COVER
|
|
| 1-12. |
30A30-00100
|
[1] |
GASKET
|
|
| 1-13. |
30L01-01102
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 1-14. |
30L07-05100
|
[1] |
GASKET
|
|
| 1-15. |
30L07-05200
|
[1] |
GASKET;OIL SEAL CASE
|
|
| 1-16. |
30L07-05300
|
[1] |
GASKET;FRONT PLATE
|
|
| 1-17. |
30L11-01200
|
[1] |
GASKET;HOUSING
|
|
| 1-18. |
30L11-05100
|
[1] |
GASKET;GEAR CASE
|
|
| 1-19. |
30L13-05200
|
[1] |
GASKET;OIL PAN
|
|
| 1-2. |
MD068355
|
[3] |
GASKET;FUEL RETURN
|
|
| 1-20. |
30L30-05200
|
[1] |
GASKET;INLET MANIFOLD
|
|
| 1-21. |
30L45-05100
|
[1] |
GASKET;WATER PUMP
|
|
| 1-22. |
30L46-05100
|
[1] |
GASKET;THERMO FITTING
|
|
| 1-23. |
30L63-05100
|
[1] |
GASKET;GOV COVER
|
|
| 1-24. |
30L63-05200
|
[1] |
GASKET;TIE ROD COVER
|
|
| 1-25. |
30636-25901
|
[1] |
GASKET
|
|
| 1-3. |
MD070717
|
[3] |
GASKET;HOLDER
|
|
| 1-4. |
MD115472
|
[6] |
SEAL;VALVE STEM
|
|
| 1-5. |
MF520007
|
[2] |
O-RING
|
|
| 1-6. |
MM404878
|
[1] |
O-RING;FILTER CUP
|
|
| 1-7. |
MM404881
|
[1] |
O-RING;ELEMENT
|
|
| 1-8. |
MM432-12901
|
[1] |
GASKET;EXHAUST
|
|
| 1-9. |
MM432-13502
|
[1] |
GASKET;THERMOSTAT
|
|
