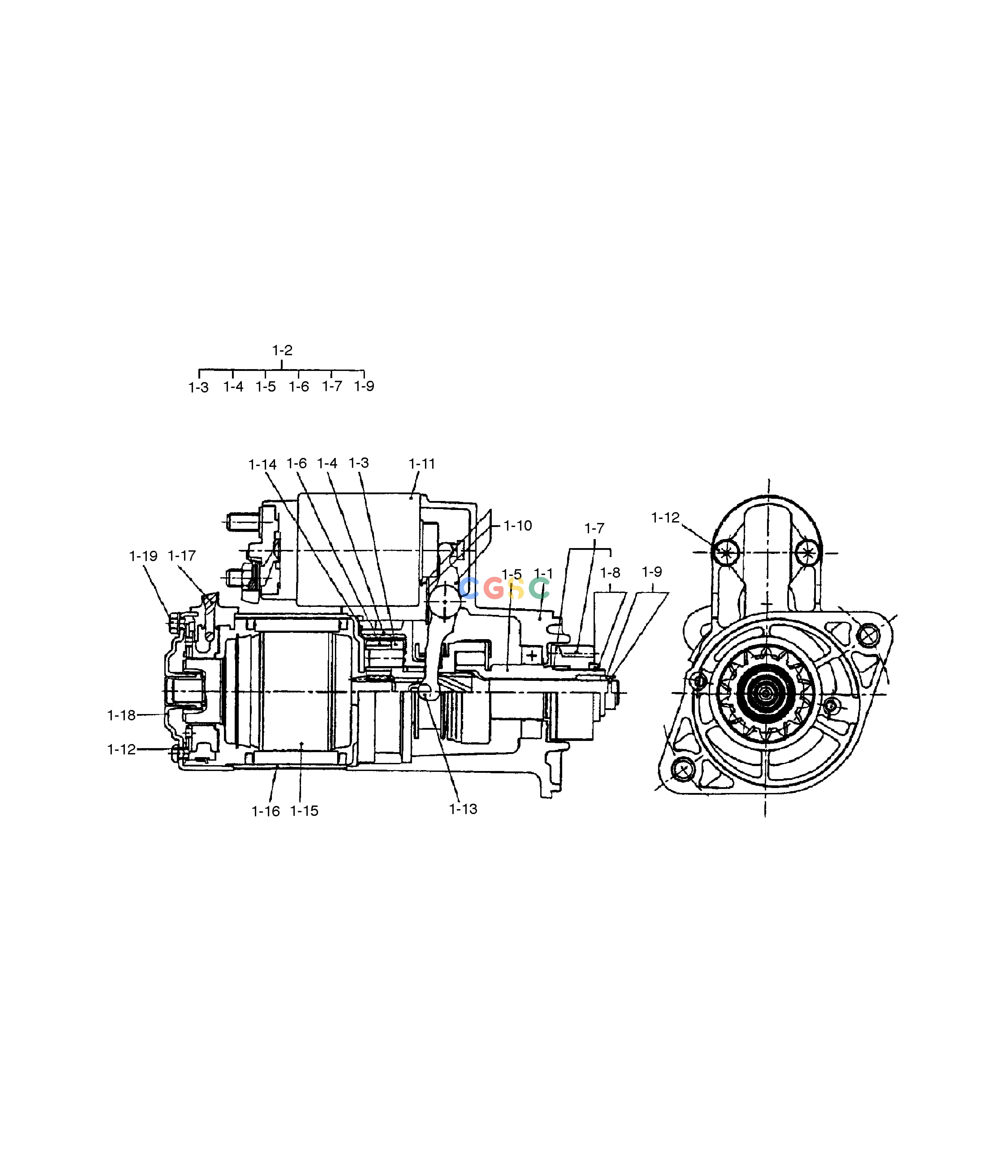

斗山零件查询STARTER SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30L66-10600
|
[1] |
STARTER ASS'Y
|
|
| 1-1. |
47X11-02280
|
[1] |
FRONT BRACKET ASS'Y
|
|
| 1-10. |
47X11-02337
|
[1] |
LEVER;SET
|
|
| 1-11. |
47X11-02319
|
[1] |
SWITCH ASS'Y
|
|
| 1-12. |
47X11-02237
|
[1] |
SCREW SET
|
|
| 1-13. |
47X11-02213
|
[1] |
BALL
|
|
| 1-14. |
47X11-02320
|
[1] |
PACKING
|
|
| 1-15. |
47X11-02285
|
[1] |
ARMATURE
|
|
| 1-16. |
47X11-02326
|
[1] |
YOKE ASS'Y
|
|
| 1-17. |
47X11-02287
|
[1] |
CONNECTOR BRUSH HOLD
|
|
| 1-18. |
47X11-02327
|
[1] |
REAR BRACKET ASS'Y
|
|
| 1-19. |
47X11-02289
|
[2] |
BOLT
|
|
| 1-2. |
47X11-02329
|
[1] |
CLUTCH SHAFT ASS'Y
|
|
| 1-3. |
47X11-02228
|
[1] |
GEAR SHAFT ASS'Y
|
|
| 1-4. |
47X11-02290
|
[1] |
INTERNAL GEAR ASS'Y
|
|
| 1-5. |
47X11-02330
|
[1] |
CLUTCH;OVER RUNNING
|
|
| 1-6. |
47X11-02207
|
[3] |
GEAR ASS'Y
|
|
| 1-7. |
47X11-02331
|
[1] |
PISTON ASS'Y
|
|
| 1-8. |
47X11-02233
|
[1] |
STOPPER;SET
|
|
| 1-9. |
47X11-02333
|
[1] |
STOPPER;SET
|
|
