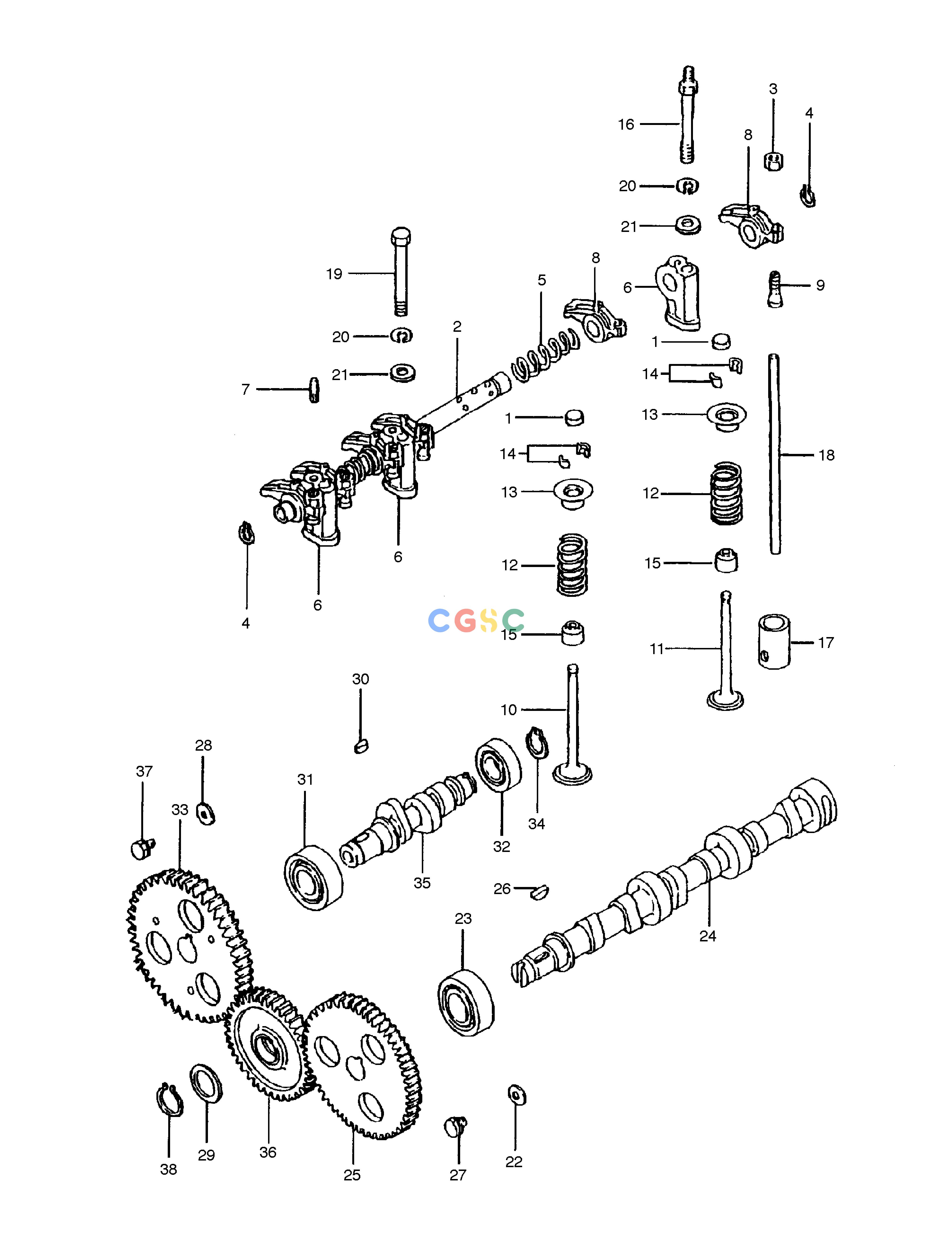

斗山零件查询TIMING PARTS SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
883 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
31A04-00700
|
[6] |
CAP;VALVE STEM
|
|
| 10. |
MM432143
|
[3] |
VALVE;INTAKE
|
|
| 11. |
MM432144
|
[3] |
VALVE;EXHAUST
|
|
| 12. |
MM432668
|
[6] |
SPRING;VALVE
|
|
| 13. |
MM433306
|
[6] |
RETAINER;VALVE
|
|
| 14. |
MD016483
|
[12] |
VALVE;LOCK STEM
|
|
| 15. |
MD115472
|
[6] |
SEAL;VALVE STEM
|
|
| 16. |
MM433848
|
[2] |
BOLT;ROCKER STAY
|
|
| 17. |
MM434222
|
[6] |
TAPPET
|
|
| 18. |
MM433307
|
[6] |
ROD;PUSH
|
|
| 19. |
MF101267
|
[1] |
BOLT
|
|
| 2. |
30L04-00071
|
[1] |
ROCKER SHAFT ASS'Y
|
|
| 20. |
MF450405
|
[3] |
WASHER;SPRING
|
|
| 21. |
MS450035
|
[3] |
WASHER;PLAIN
|
|
| 22. |
MM432306
|
[1] |
WASHER;CAM SHAFT STOP
|
|
| 23. |
MM432105
|
[1] |
BEARING;BALL
|
|
| 24. |
MM433-19701
|
[1] |
SHAFT;CAM
|
|
| 25. |
MM432890
|
[1] |
GEAR;CAM SHART
|
|
| 26. |
MF476214
|
[1] |
KEY;WOODRUFF
|
|
| 27. |
MF241223
|
[1] |
BOLT;WITH WASHER
|
|
| 28. |
MM432306
|
[1] |
WASHER;CAM SHAFT STOP
|
|
| 29. |
MM432567
|
[1] |
PLATE;DISTANCE
|
|
| 3. |
MF430724
|
[6] |
NUT;JAM
|
|
| 30. |
MF476018
|
[1] |
KEY;SUNK
|
|
| 31. |
MM432105
|
[1] |
BEARING;BALL
|
|
| 32. |
MM432106
|
[1] |
BEARING;BALL
|
|
| 33. |
MM433127
|
[1] |
GEAR;FUEL INJ PUMP
|
|
| 34. |
MF522007
|
[1] |
RING;SNAP
|
|
| 35. |
MF435144
|
[1] |
SHAFT;FUEL INJ PUMP
|
|
| 36. |
MM433236
|
[1] |
IDLER GEAR ASS'Y
|
|
| 37. |
MF241223
|
[1] |
BOLT;WITH WASHER
|
|
| 38. |
MF522011
|
[1] |
RING;SNAP
|
|
| 4. |
MF522003
|
[2] |
RING;SNAP
|
|
| 5. |
MM318768
|
[2] |
SPRING;ROCKER SHAFT
|
|
| 6. |
MM318772
|
[3] |
STAY;ROCKER
|
|
| 7. |
MM432145
|
[1] |
PIN;GROOVED
|
|
| 8. |
MM433308
|
[6] |
ARM;ROCKER
|
|
| 9. |
MM433312
|
[6] |
SCREW;ADJUSTING
|
|
