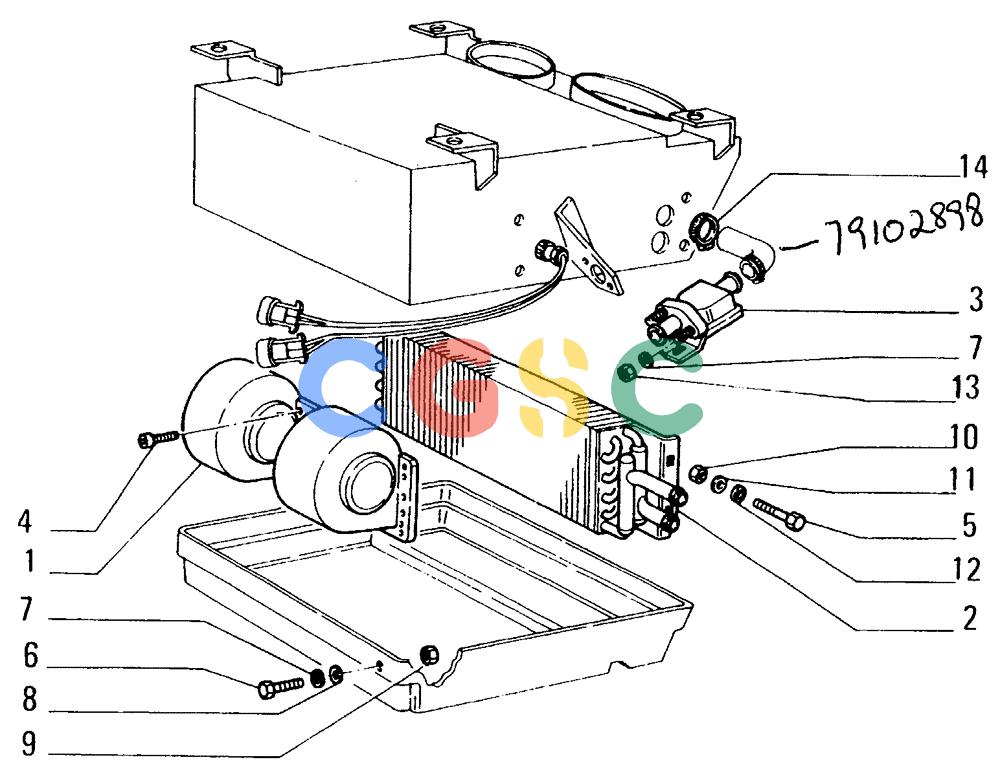

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6560[003]) - HEATER-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
332 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79096050 | [1] | FAN | LEC Superseded by part number: 76027756 |
| 2. | 79096051 | [1] | CORE | LECBATTERY |
| 3. | 79089649 | [1] | DRAINCOCK/TAP SUPPLY | LECCOCK |
| 4. | 14304221 | [5] | HEX SOC SCREW,M5 x 16mm, Cl 8.8, Full Thd | LEC Superseded by part number: 14304220 |
| 5. | 10902221 | [4] | BOLT,Hex, M6 x 16mm, CL 8.8 | BHBBOLT, Hex, M6 x 16, 8.8 Superseded by part number: |
| 6. | 10977821 | [10] | BOLT,M5 x 19.65mm OAL, Cl 8.8 | IMOHex, M5 x 16, 8.8, Full Thd Superseded by part number: 75226650, 86050276 |
| 7. | 10571479 | [12] | LOCK WASHER,M5 | LECWASHER, LOCK, M5 Superseded by part number: |
| 8. | 14496321 | [10] | WASHER | LEC |
| 9. | 14197890 | [10] | NUT | LEC5x1,8 Superseded by part number: 14197894 |
| 10. | 14194090 | [4] | NUT,M6 x 1, Cage | TTF6x1,2 |
| 11. | 10516479 | [4] | LOCK WASHER | BHBLOCKWASHER 6,1x1,8 Superseded by part number: 10516471 |
| 12. | 10519421 | [4] | WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk | TTFM6 x 11.95 x 1.6 Superseded by part number: 17094724 |
| 13. | 15896421 | [2] | NUT,M5, Cl 10 | TTF Superseded by part number: 1112803 |
| 14. | 79083842 | [2] | HOSE CLAMP,M16-27 | LECCLAMP, HOSE, M16-27 Superseded by part number: 18088392 |
