纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6650[001]) - AIR CONDITIONING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
187 次

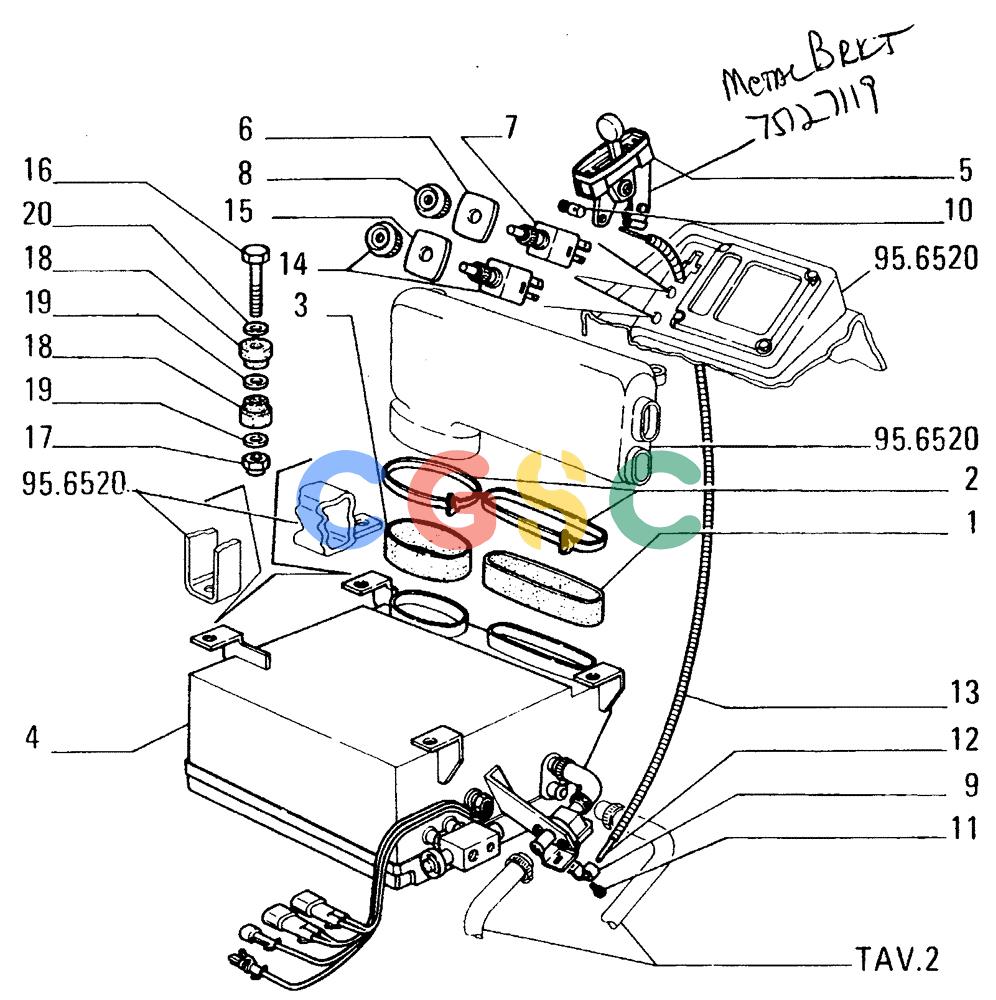

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79091782 | [1] | SLEEVE | LECC2715 Superseded by part number: 79102238 |
| 1. | 79102238 | [1] | HOSE | LECSLEEVE D2715 |
| 2. | 79094008 | [4] | COLLAR | LEC |
| 3. | 79091781 | [1] | SLEEVE | LECC2715 Superseded by part number: 79102237 |
| 3. | 79102237 | [1] | HOSE | LECSLEEVE D2715 |
| 4. | 79093089 | [1] | HEATER | LEC- ASSEMBLY SEE TAV.5 |
| 5. | 79076389 | [1] | LEVER | LEC |
| 6. | 79092755 | [1] | DECAL | LEC |
| 7. | 79079424 | [1] | CLIMATE CONTROL SWITCH | LECSWITCH |
| 8. | 79089651 | [1] | KNOB | LEC |
| 9. | 79084392 | [1] | SPRING CLIP | LECSPRING FASTENER |
| 10. | 79038002 | [1] | CLIP | LEC |
| 11. | 15903806 | [1] | SCREW | LEC4,8x13 Superseded by part number: 15903804 |
| 12. | 19150570 | [1] | WIRE | LECSTEEL WIRE C2722 |
| 12. | 79100917 | [1] | WIRE | LECSTEEL WIRE D2722 |
| 13. | 19151190 | [1] | SHEET METAL | LECSHEATH |
| 14. | 79092152 | [1] | SWITCH | LEC |
| 15. | 79092153 | [1] | DECAL | LEC |
| 16. | 16044031 | [4] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 17. | 16104121 | [5] | NUT,M8 x 1.25, Cl 10 | LECNUT, LOCK, M8 x 1.25, Cl 10 Superseded by part number: 17152821 |
| 18. | 79089658 | [8] | PAD | BHBBLOCK |
| 19. | 14496531 | [10] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8.15x17 Superseded by part number: 86624184 |
| 20. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
