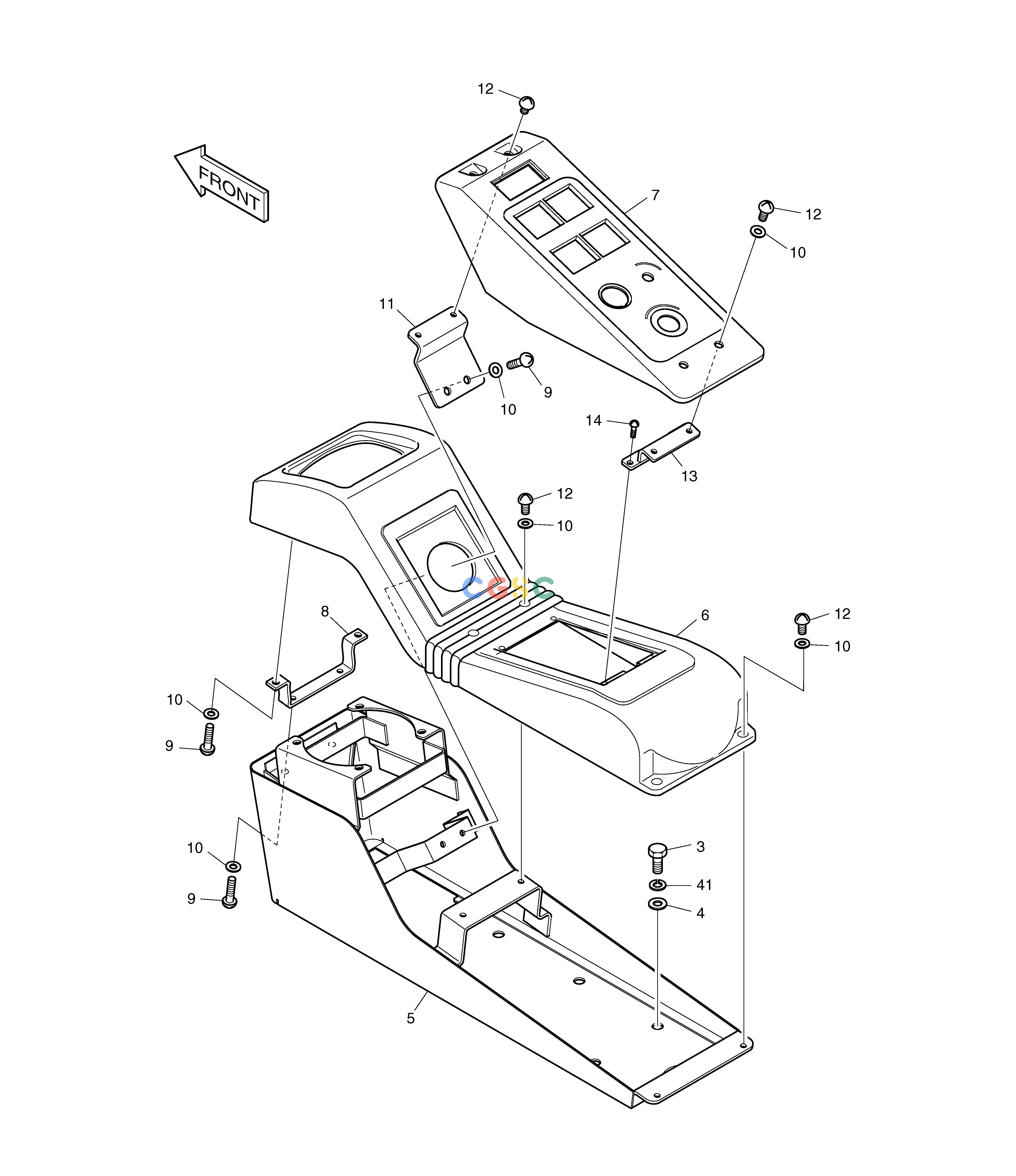

斗山零件查询CONTROL STAND-R.H SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
695 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-01095G
|
[-] |
STAND ASS'Y
|
|
| 10. |
2114-1898D4
|
[12] |
WASHER
|
|
| 11. |
195-01102A
|
[1] |
BRACKET
|
|
| 12. |
2120-2166D18
|
[8] |
SCREW
|
|
| 13. |
195-01103A
|
[1] |
BRACKET
|
|
| 14. |
2120-2166D22
|
[2] |
SCREW M3X0.5X12
|
|
| 3. |
2120-2166D5
|
[6] |
BOLT
|
|
| 4. |
2114-1898D2
|
[6] |
WASHER
|
|
| 41. |
2114-2031D4
|
[6] |
WASHER
|
|
| 5. |
195-01056A
|
[1] |
BRACKET;STAND(RH)
|
|
| 6. |
2125-1078B
|
[1] |
CASE;UPPER
|
|
| 7. |
621-01083A
|
[1] |
COVER;SWITCH(R.H)
|
|
| 8. |
195-01057A
|
[1] |
BRACKET
|
|
| 9. |
2120-2166D23
|
[4] |
SCREW
|
|
