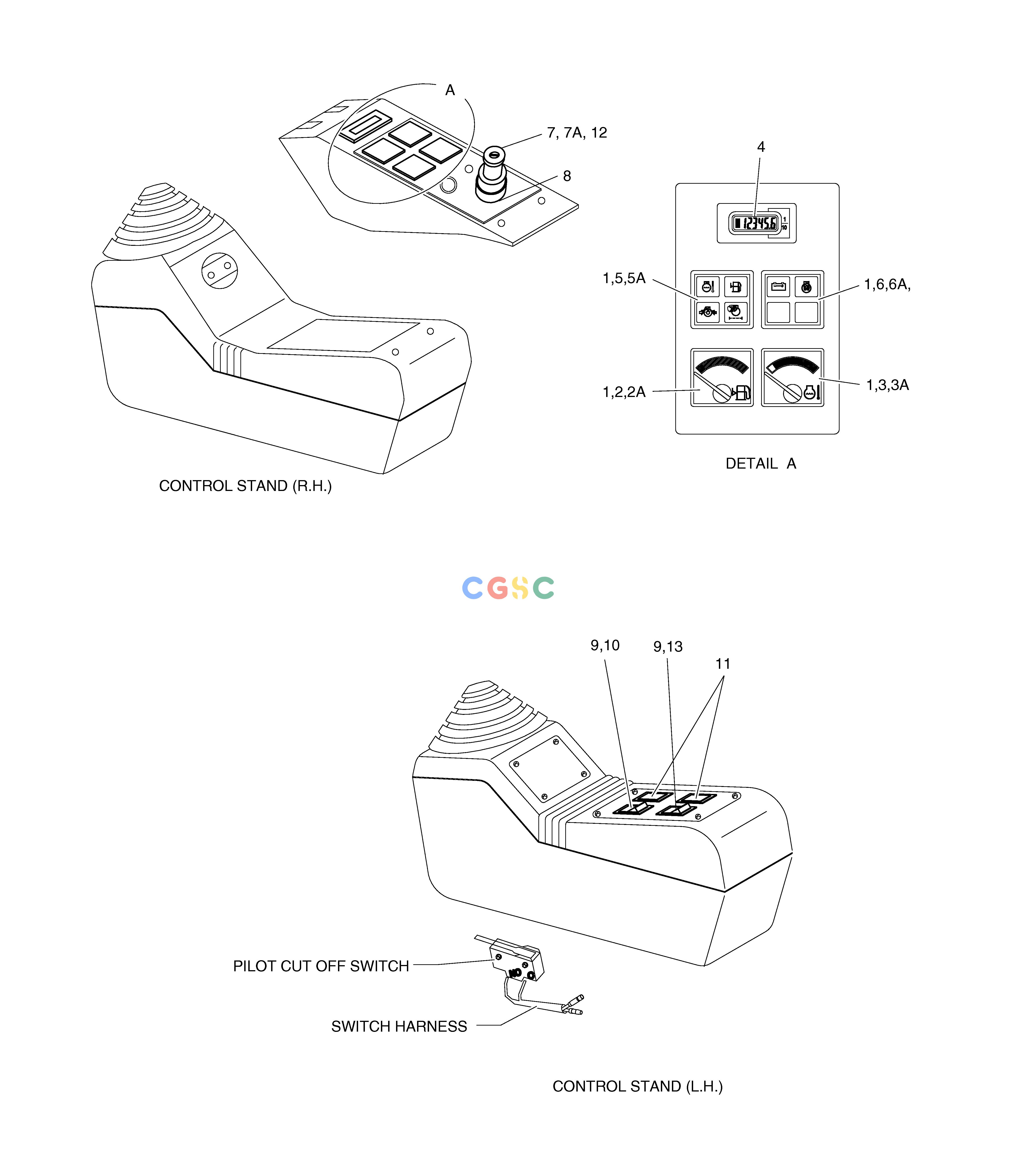

斗山零件查询ELECTRIC PARTS(1)-STAND SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
144 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00097
|
[-] |
ELECTRIC PARTS
|
|
| 1. |
120-00261
|
[8] |
SCREW
|
|
| 10. |
2190-2036D5
|
[1] |
INSERT;WORKING LAMP
|
|
| 11. |
2621-9002
|
[2] |
COVER
|
|
| 12. |
2160-1218
|
[1] |
CAP
|
|
| 13. |
2190-2036D13
|
[1] |
INSERT;HIGH SPEED
|
|
| 2. |
528-00017
|
[1] |
GAUGE;FUEL
|
|
| 2A. |
515-00001
|
[1] |
BULB 12V 1.2W
|
|
| 3. |
528-00018
|
[1] |
GAUGE;W/T
|
|
| 3A. |
515-00001
|
[1] |
BULB 12V 1.2W
|
|
| 4. |
2528-9040
|
[1] |
METER;HOUR
|
|
| 5. |
534-00017
|
[1] |
LAMP;PILOT(1)
|
|
| 5A. |
515-00001
|
[4] |
BULB 12V 1.2W
|
|
| 6. |
534-00018
|
[1] |
LAMP;PILOT(2)
|
|
| 6A. |
515-00001
|
[4] |
BULB 12V 1.2W
|
|
| 7. |
2549-1152
|
[1] |
SWITCH;STARTER
|
|
| 7A. |
2172-1134
|
[1] |
KEY;STARTER SWITCH
|
|
| 8. |
530-00134A
|
[1] |
HARNESS;KEY SWITCH
|
|
| 9. |
2549-9115
|
[2] |
SWITCH;ROCKER(12V)
|
|
