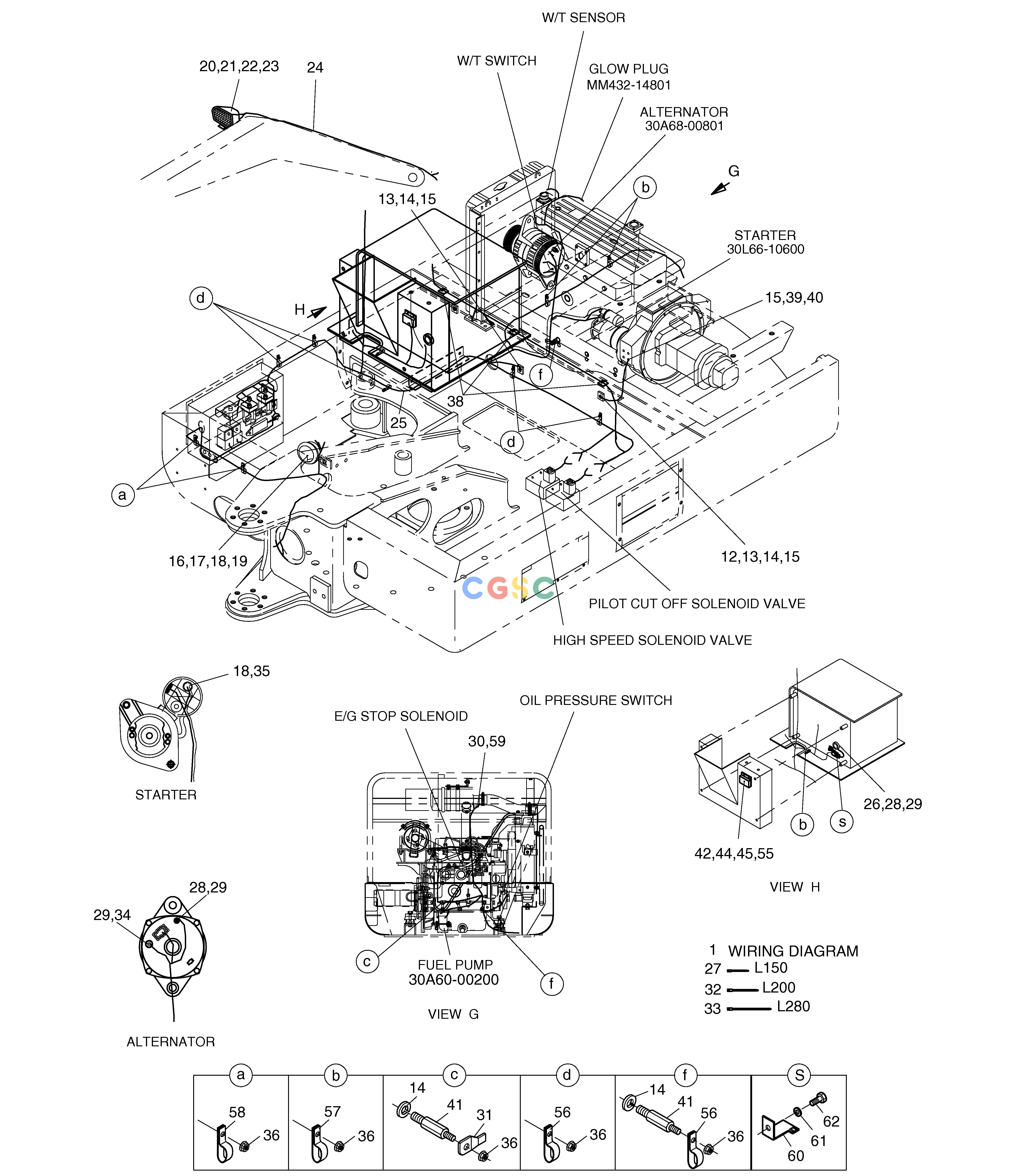

斗山零件查询ELECTRIC PARTS(4)-THE OTHERS SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
661 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00079
|
[-] |
ELECTRIC PARTS
|
|
| 1. |
599-00028B
|
[1] |
WIRING DIAGRAM
|
|
| 12. |
2553-1275D12
|
[1] |
CABLE;EARTH
|
|
| 13. |
S0511553
|
[2] |
BOLT M10X1.5X14
|
|
| 14. |
S5102603
|
[5] |
. WASHER
|
|
| 15. |
S5010613
|
[3] |
WASHER
|
|
| 16. |
2516-1121
|
[1] |
HORN
|
|
| 17. |
S0508553
|
[1] |
BOLT
|
|
| 18. |
S5102503
|
[2] |
. WASHER
|
|
| 19. |
S5010513
|
[1] |
WASHER
|
|
| 20. |
534-00029
|
[1] |
LAMP;WORKING
|
|
| 20A. |
2515-1016D2
|
[1] |
BULB
|
|
| 21. |
2197-1237A
|
[1] |
BRACKET
|
|
| 22. |
S0514853
|
[1] |
BOLT
|
|
| 23. |
S5102703
|
[1] |
WASHER
|
|
| 24. |
530-00186
|
[1] |
HARNESS;WORKING LAMP
|
|
| 25. |
530-00133G
|
[1] |
HARNESS;MAIN
|
|
| 25A. |
2548-1027
|
[9] |
DIODE
|
|
| 26. |
547-00020
|
[1] |
SENDER;FUEL
|
|
| 27. |
2124-1622D1
|
[10] |
CLIP,BAND
|
|
| 28. |
S3450833
|
[6] |
BOLT
|
|
| 29. |
S5100203
|
[7] |
WASHER
|
|
| 30. |
2170-1003
|
[1] |
INDICATOR
|
|
| 31. |
2197-1660
|
[1] |
BRACKET
|
|
| 32. |
2124-1622D2
|
[20] |
CLIP
|
|
| 33. |
2124-1622D3
|
[10] |
CLIP;BAND 280L
|
|
| 34. |
S4012233
|
[1] |
NUT
|
|
| 35. |
S4012533
|
[1] |
NUT
|
|
| 36. |
2121-1305
|
[13] |
NUT
|
|
| 38. |
2128-1209D1
|
[3] |
CLAMP;METAL
|
|
| 39. |
S0711653
|
[1] |
BOLT M10X1.25X16
|
|
| 40. |
S5102603
|
[1] |
. WASHER
|
|
| 41. |
2120-2235
|
[3] |
BOLT;STUD
|
|
| 42. |
2510-1008
|
[1] |
BOX;FUSE
|
|
| 42A. |
2527-1016
|
[10] |
FUSE,BLADE 10A
|
|
| 42B. |
2527-1017
|
[5] |
FUSE,BLADE 15A
|
|
| 42C. |
2527-1018
|
[3] |
FUSE,BLADE 20A
|
|
| 44. |
S5102303
|
[2] |
. WASHER
|
|
| 45. |
190-00771A
|
[1] |
PLATE;NAME(FUSE BOX)
|
|
| 55. |
S3450983
|
[2] |
SCREW
|
|
| 56. |
2124-1509D3
|
[7] |
CLIP D24/M8
|
|
| 57. |
2124-1509D2
|
[3] |
CLIP
|
|
| 58. |
2124-1509D1
|
[2] |
CLIP
|
|
| 59. |
181-00670A
|
[1] |
ADAPTER
|
|
| 60. |
2195-3500
|
[1] |
BRACKET
|
|
| 61. |
S3452953
|
[1] |
SCREW
|
|
| 62. |
S5102303
|
[1] |
. WASHER
|
|
