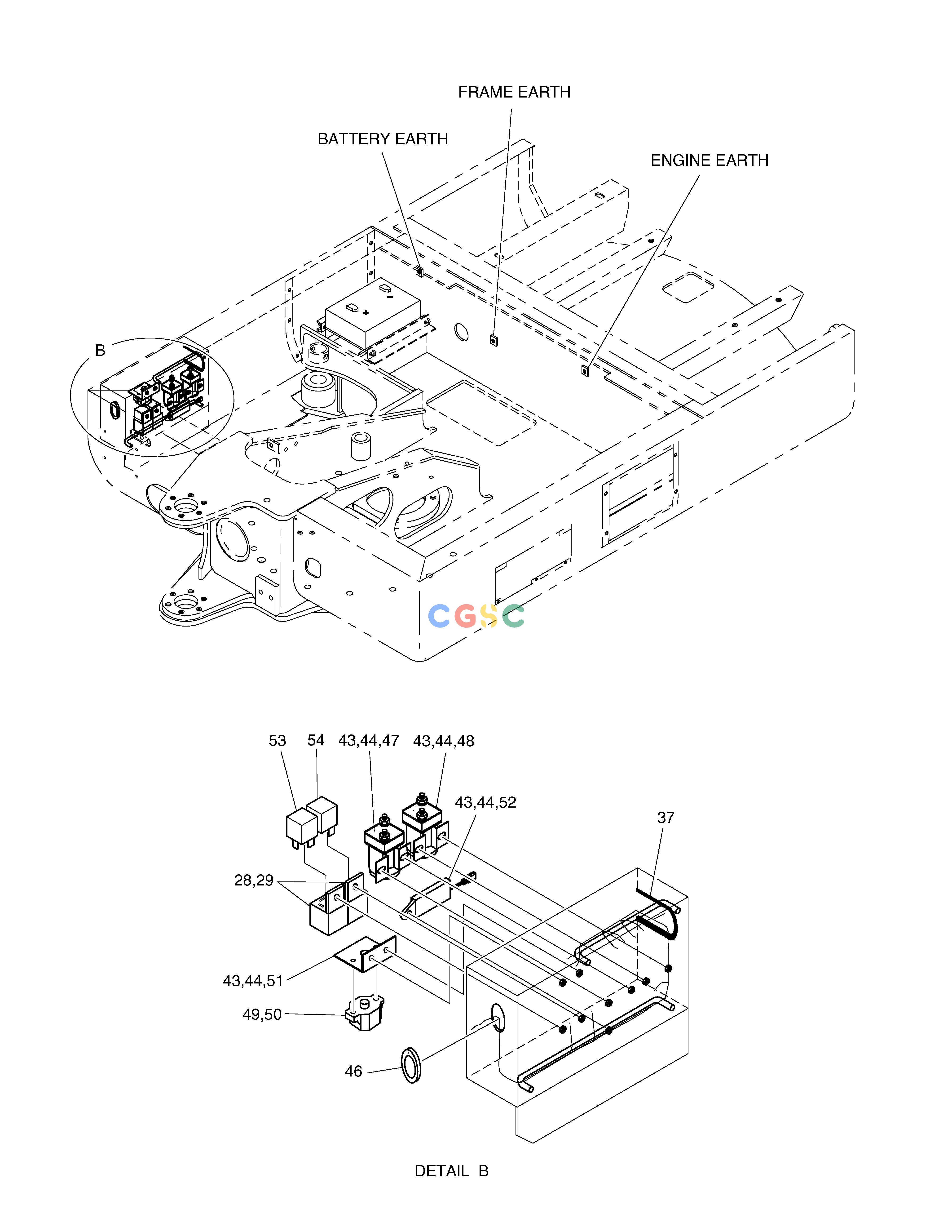

斗山零件查询ELECTRIC PARTS(3)-ELECTRIC PARTS SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00079
|
[-] |
ELECTRIC PARTS
|
|
| 28. |
S3450833
|
[2] |
BOLT
|
|
| 29. |
S5100203
|
[2] |
WASHER
|
|
| 37. |
161-00260
|
[1] |
RUBBER;TRIM
|
|
| 43. |
S3450953
|
[7] |
SCREW
|
|
| 44. |
S5102303
|
[7] |
. WASHER
|
|
| 46. |
2160-1004D16
|
[1] |
BUSHING;RUBBER
|
|
| 47. |
2544-1023
|
[1] |
RELAY;STARTER
|
|
| 48. |
2544-1023
|
[1] |
RELAY;STARTER
|
|
| 49. |
2527-9004
|
[1] |
BREAKER;CIRCUIT
|
|
| 50. |
2120-1354
|
[2] |
SCREW
|
|
| 51. |
195-01341
|
[1] |
BRACKET;CIRCUIT BREAKER
|
|
| 52. |
537-00030
|
[1] |
TIMER;PREHEAT
|
|
| 53. |
2544-9032
|
[1] |
RELAY
|
|
| 54. |
2544-9032
|
[1] |
RELAY
|
|
