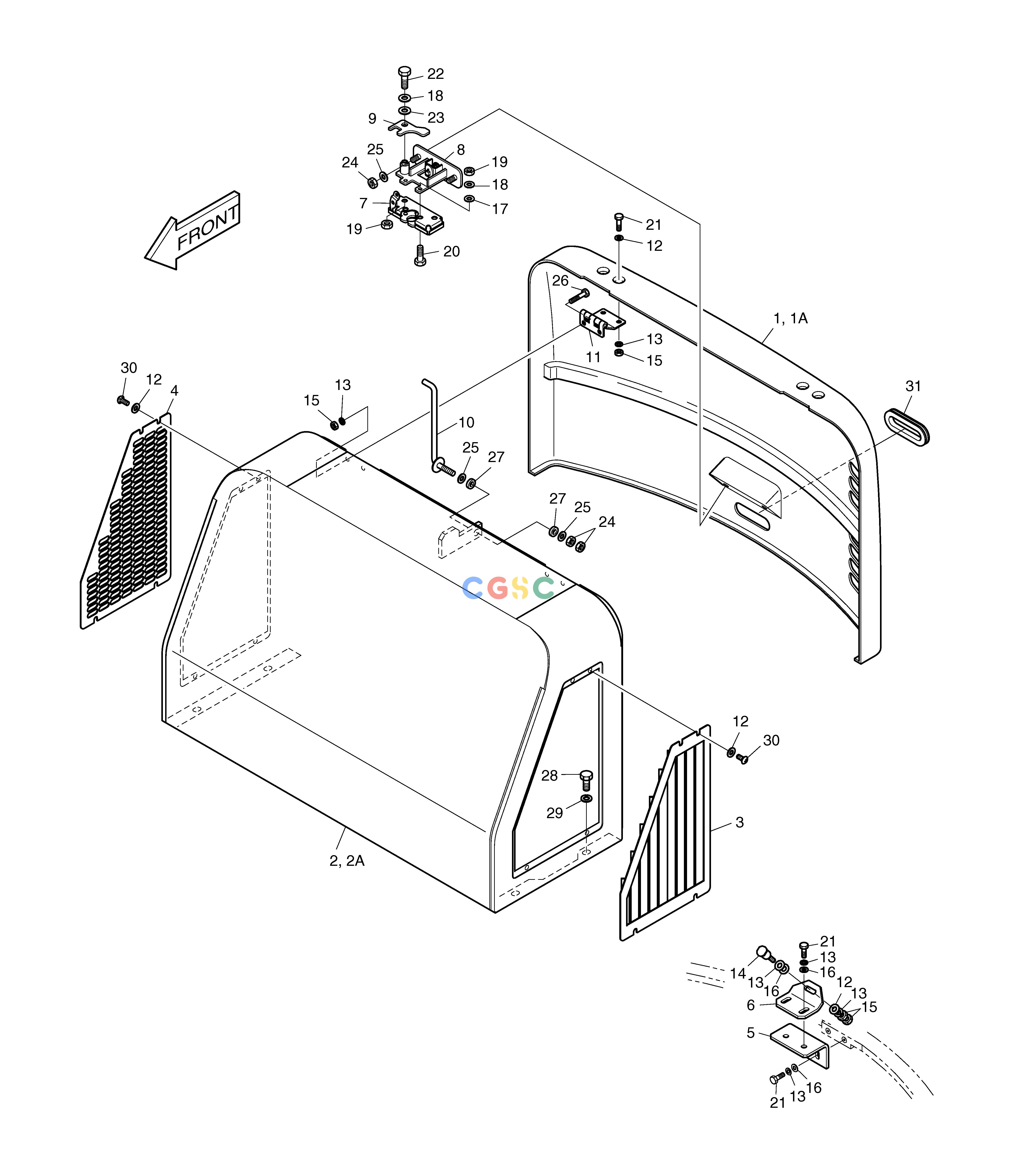

斗山零件查询ENGINE COVER SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
355 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-00883
|
[-] |
ENGINE COVER ASS'Y
|
|
| 1. |
621-00780B
|
[1] |
COVER;ENGINE
|
|
| 10. |
312-00021A
|
[1] |
ROD
|
|
| 11. |
171-00009A
|
[2] |
HINGE
|
|
| 12. |
S5010513
|
[14] |
WASHER
|
|
| 13. |
S5102503
|
[13] |
. WASHER
|
|
| 14. |
2142-1094
|
[1] |
STRIKER
|
|
| 15. |
S4012533
|
[10] |
NUT
|
|
| 16. |
2114-1058D29
|
[5] |
WASHER
|
|
| 17. |
S5010313
|
[2] |
WASHER
|
|
| 18. |
S5102303
|
[2] |
. WASHER
|
|
| 19. |
S4012333
|
[2] |
NUT
|
|
| 1A. |
1.162-00001
|
[1] |
RUBBER;CUSHION
|
|
| 2. |
621-00740B
|
[1] |
COVER;ENGINE
|
|
| 20. |
S0505353
|
[2] |
BOLT M6X1.0X35
|
|
| 21. |
S0509253
|
[8] |
BOLT M8X1.25X30
|
|
| 22. |
S0553853
|
[1] |
BOLT M6X1.0X60
|
|
| 23. |
2114-1058D69
|
[1] |
WASHER
|
|
| 24. |
S4012633
|
[3] |
NUT
|
|
| 25. |
S5010613
|
[4] |
WASHER
|
|
| 26. |
S0556153
|
[4] |
BOLT M8X1.25X40
|
|
| 27. |
2160-1004D4
|
[2] |
GROMMET
|
|
| 28. |
S0515253
|
[4] |
. BOLT
|
|
| 29. |
S5102703
|
[4] |
WASHER
|
|
| 2A. |
1.162-00001
|
[1] |
RUBBER;CUSHION
|
|
| 3. |
621-00885A
|
[1] |
COVER;ENGINE(L.H)
|
|
| 30. |
S3457113
|
[8] |
SCREW M8X1.25X20
|
|
| 31. |
2160-1201D21
|
[1] |
BUSH;RUBBER
|
|
| 4. |
621-00886A
|
[1] |
COVER;ENGINE(R.H)
|
|
| 5. |
195-00824A
|
[1] |
BRACKET
|
|
| 6. |
2197-2661
|
[1] |
BRACKET;LATCH
|
|
| 7. |
2143-1003
|
[1] |
LATCH
|
|
| 8. |
195-01460
|
[1] |
BRACKET
|
|
| 9. |
195-00280
|
[1] |
BRACKET
|
|
