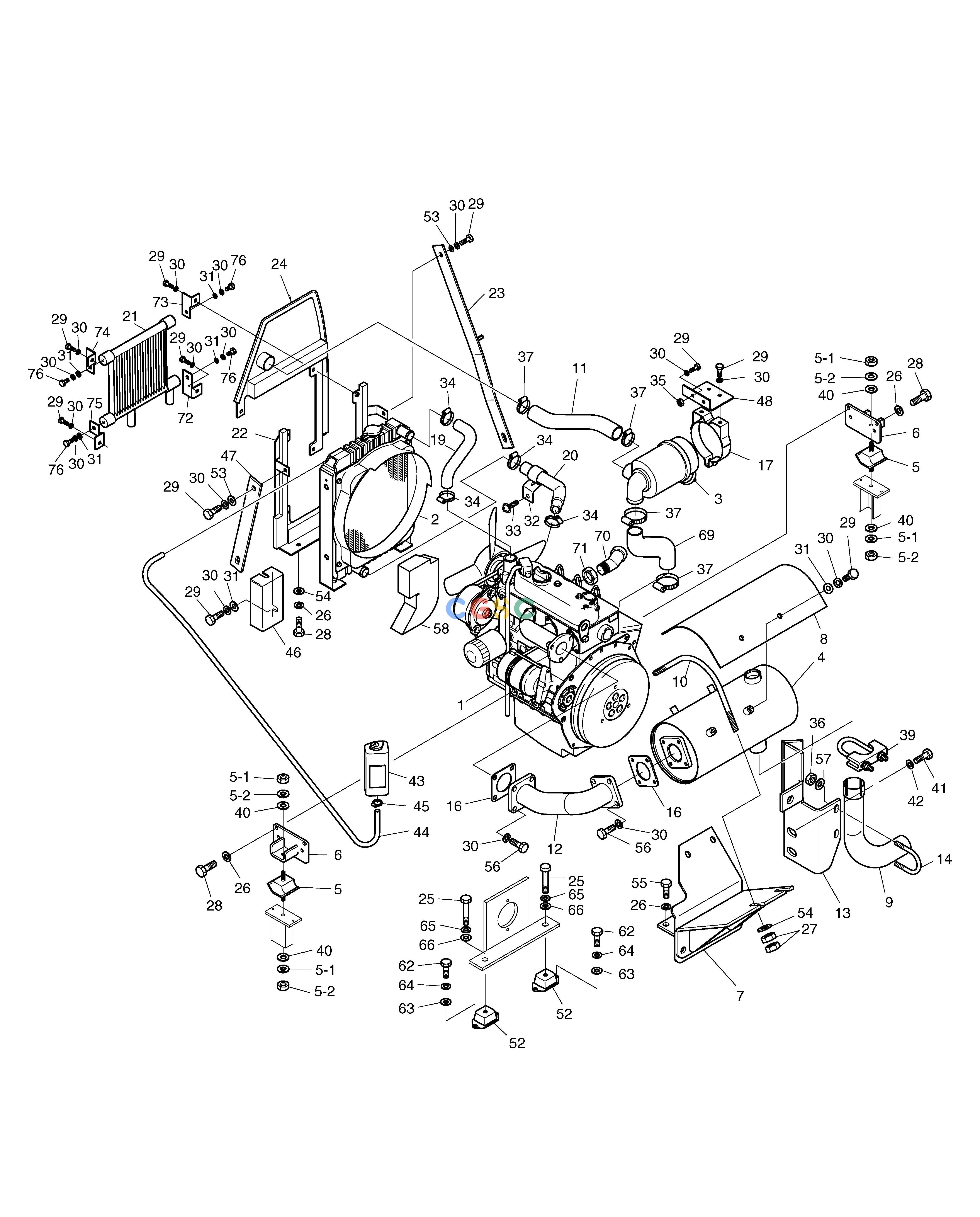

斗山零件查询ENGINE MOUNTING SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
600 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
201-00038
|
[-] |
ENGINE ASS'Y
|
|
| 1. |
201-00039
|
[1] |
ENGINE
|
|
| 10. |
120-00148
|
[2] |
BOLT;U
|
|
| 11. |
185-00002B
|
[1] |
HOSE;AIR CLEANER
|
|
| 12. |
193-00191
|
[1] |
PIPE;EXHAUST
|
|
| 13. |
195-00531
|
[1] |
BRACKET
|
|
| 14. |
2120-2161
|
[1] |
BOLT;U
|
|
| 16. |
30A30-00100
|
[1] |
GASKET
|
|
| 17. |
124-00190
|
[1] |
BAND;AIR CLEANER
|
|
| 19. |
30L47-00800
|
[1] |
HOSE;UPPER
|
|
| 2. |
30L47-00601
|
[1] |
RADIATOR
|
|
| 20. |
30L47-00900
|
[1] |
HOSE;LOWER
|
|
| 21. |
202-00130
|
[1] |
COOLER;OIL
|
|
| 22. |
195-00571B
|
[1] |
BRACKET
|
|
| 23. |
191-00377B
|
[1] |
STAY
|
|
| 24. |
195-01370B
|
[1] |
BAFFLE
|
|
| 25. |
S0515453
|
[2] |
BOLT
|
|
| 26. |
S5102603
|
[10] |
. WASHER
|
|
| 27. |
S4012633
|
[8] |
NUT
|
|
| 28. |
S0712063
|
[10] |
BOLT M10X1.25X25
|
|
| 29. |
S0508853
|
[20] |
. BOLT
|
|
| 3. |
204-00034
|
[1] |
AIR CLEANER ASS'Y
|
|
| 30. |
S5102503
|
[34] |
. WASHER
|
|
| 31. |
S5010513
|
[10] |
WASHER
|
|
| 32. |
MM434-427
|
[1] |
SUPPORT;HOSE
|
|
| 33. |
MS350-029
|
[1] |
SCREW
|
|
| 34. |
MF661019
|
[4] |
CLAMP;HOSE
|
|
| 35. |
S4012533
|
[6] |
NUT
|
|
| 36. |
S4012333
|
[4] |
NUT
|
|
| 37. |
S8450053
|
[4] |
CLAMP;HOSE
|
|
| 39. |
124-00264
|
[1] |
CLAMP
|
|
| 4. |
203-00030C
|
[1] |
MUFFLER
|
|
| 40. |
S5010613
|
[6] |
WASHER
|
|
| 41. |
S0504353
|
[2] |
BOLT M6X1.0X10
|
|
| 42. |
S5102303
|
[2] |
. WASHER
|
|
| 43. |
MM301-607
|
[1] |
TANK;RESERVIER
|
|
| 44. |
2185-1247D4
|
[1] |
HOSE
|
|
| 45. |
S8450012
|
[1] |
CLAMP
|
|
| 46. |
195-00603
|
[1] |
BRACKET
|
|
| 47. |
191-00475A
|
[1] |
STAY
|
|
| 48. |
195-00697A
|
[1] |
BRACKET
|
|
| 5. |
161-00387
|
[2] |
RUBBER;MOUNTING
|
|
| 5-1. |
NA00609
|
[1] |
.
|
|
| 5-2. |
NA01315
|
[1] |
RONDELLE
|
|
| 52. |
161-00124
|
[2] |
RUBBER;MOUNTING
|
|
| 53. |
2114-1058D29
|
[4] |
WASHER
|
|
| 54. |
2114-1058D62
|
[6] |
WASHER
|
|
| 55. |
S0711853
|
[2] |
BOLT M10X1.25X20
|
|
| 56. |
S0509053
|
[4] |
. BOLT
|
|
| 57. |
S5010313
|
[2] |
WASHER
|
|
| 58. |
161-00303
|
[1] |
SPONGE
|
|
| 6. |
195-01739A
|
[2] |
BRACKET;MOUNTING
|
|
| 62. |
S0508853
|
[4] |
. BOLT
|
|
| 63. |
S5010513
|
[4] |
WASHER
|
|
| 64. |
S5102503
|
[4] |
. WASHER
|
|
| 65. |
S5102703
|
[2] |
WASHER
|
|
| 66. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 69. |
185-00289B
|
[1] |
HOSE
|
|
| 7. |
195-00529A
|
[1] |
BRACKET;MUFFLER
|
|
| 70. |
193-00679A
|
[1] |
PIPE;OIL FILLER
|
|
| 71. |
121-00070
|
[1] |
NUT;OIL FILLER PIPE
|
|
| 72. |
195-02759
|
[1] |
BRACKET
|
|
| 73. |
195-02756
|
[1] |
BRACKET
|
|
| 74. |
195-02757
|
[1] |
BRACKET
|
|
| 75. |
195-02758
|
[1] |
BRACKET
|
|
| 76. |
S0508653
|
[4] |
BOLT
|
|
| 8. |
621-00723
|
[1] |
COVER;MUFFLER
|
|
| 9. |
193-00192C
|
[1] |
PIPE;EXHAUST
|
|
