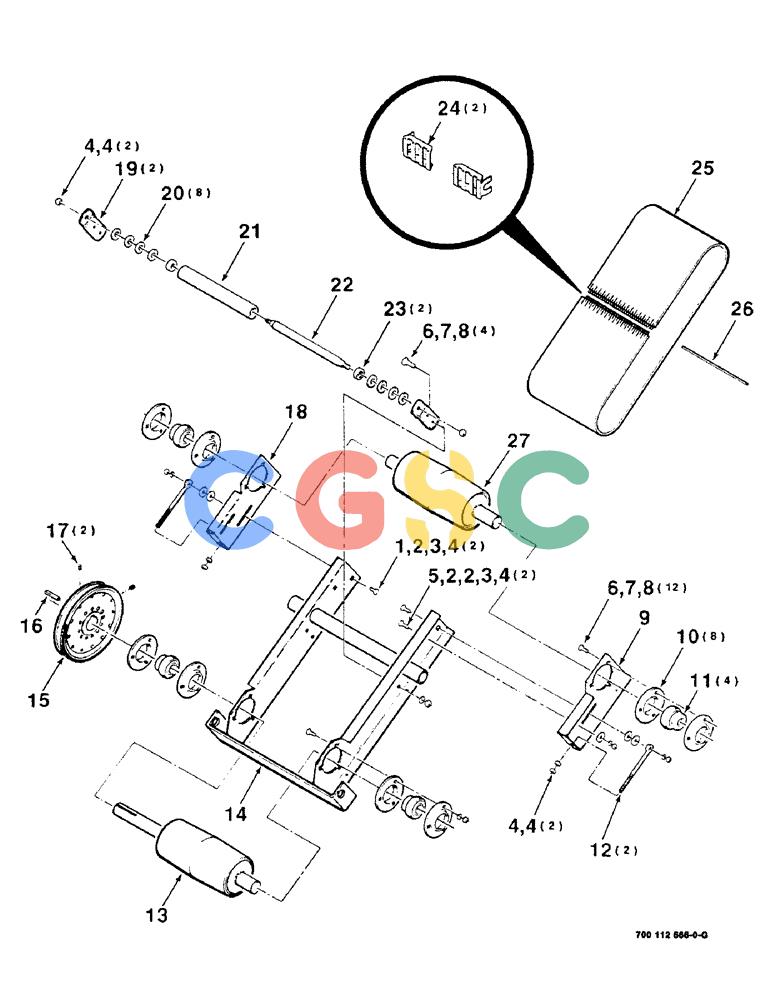

| 1. |
433-816
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
1/2-13 X 1 RHSNB Superseded by part number: 280486
|
| 2. |
495-21056
|
[6] |
WASHER,1/2"
|
CAS
1/2 HARDENED PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 3. |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 4. |
425-108
|
[8] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 5. |
433-828
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
|
CAS
1/2-13 X 1-3/4 RHSNB Superseded by part number: 88530
|
| 6. |
434-616
|
[16] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 7. |
492-11038
|
[16] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 8. |
425-106
|
[16] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 9. |
700112634
|
[1] |
SUPPORT
|
CAS
- bearing, left
|
| 10. |
T27207
|
[8] |
FLANGED BEARING
|
CAS
FLANGE - bearing Superseded by part number: 617863R1
|
| 11. |
565672R92
|
[4] |
SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"
|
IH
BEARING - spherical Superseded by part number: 84330041
|
| 12. |
51200338
|
[2] |
BOLT
|
CAS
1/2-13 DRAWBOLT
|
| 13. |
700121569
|
[1] |
ROLLER
|
CAS
- belt, lower
|
| 14. |
700112645
|
[1] |
FRAME
|
CAS
WA - thrower, lower
|
| 15. |
700706359
|
[1] |
PULLEY
|
HFI
SHEAVE - drive
|
| 16. |
Q53
|
[1] |
KEY,1/4" Sq x 1", Par
|
IH
|
| 17. |
485-1388
|
[2] |
SET SCREW,Sq Hd, 3/8"-16 x 1/2"
|
CAS
3/8-16 X 1/2 CPSQHSS Superseded by part number: 83984714
|
| 18. |
700112661
|
[1] |
SUPPORT
|
CAS
- bearing, right
|
| 19. |
700110303
|
[2] |
SUPPORT
|
CAS
- mounting, tube
|
| 20. |
95-81101
|
[8] |
WASHER,0.52" ID x 0.88" OD x 0.07" Thk
|
CAS
1/2 X 14 GA. NRMB
|
| 21. |
700121907
|
[1] |
PLUG,44.45 mm OD, 330.2 mm Length
|
CAS
ROLLER WA - tube
|
| 22. |
6556898
|
[1] |
SHAFT
|
CAS
- roller
|
| 23. |
465004R91
|
[2] |
BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"
|
IH
- radial Superseded by part number: 87302841
|
| 24. |
700707322
|
[2] |
LATCH ASSY.
|
L
FASTENER - smartloc
|
| 25. |
828194
|
[1] |
BELT,12.0" W
|
HFI
Conveyor 12.0" W
|
| 26. |
700711329
|
[1] |
PIN
|
CAS
- lacing
|
| 27. |
700121568
|
[1] |
ROLLER
|
CAS
WA - driven, upper
|
