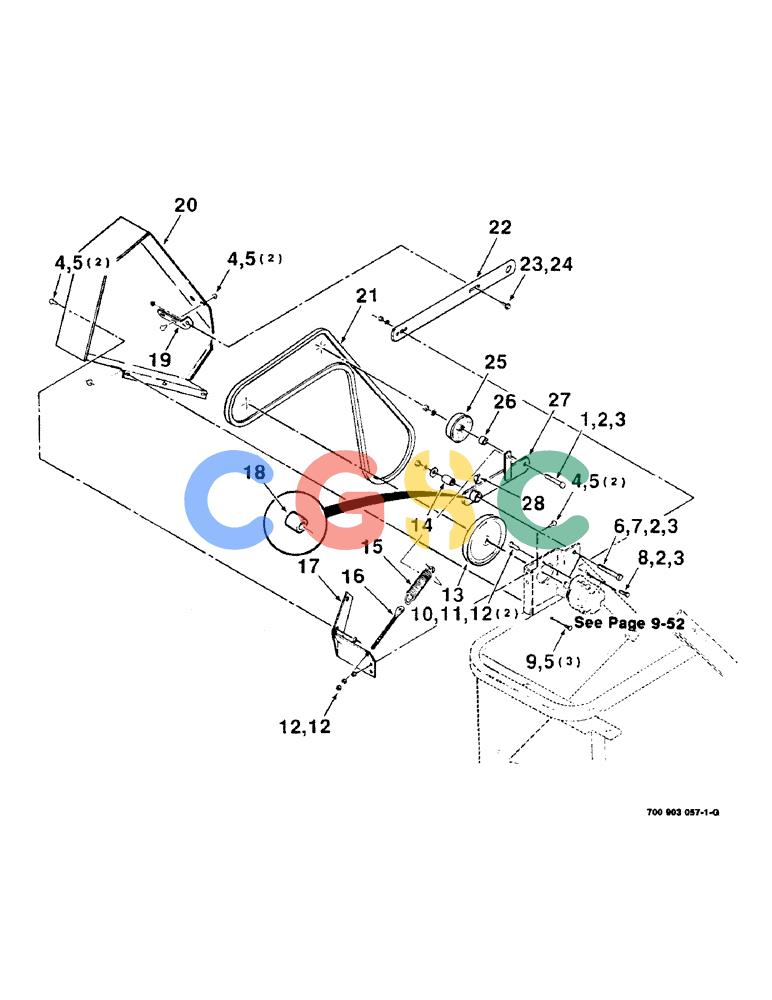

| 1. |
413-836
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
|
CAS
- hex, 1/2 NC x 2-1/4 inch Superseded by part number: 87975
|
| 2. |
80679
|
[3] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 3. |
425-108
|
[3] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 4. |
121-115
|
[6] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 5. |
231-5145
|
[9] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 6. |
413-840
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
|
CAS
.5 X 2.5 UNC GR5 YZD Superseded by part number: 87972
|
| 7. |
495-21056
|
[1] |
WASHER,1/2"
|
CAS
1/2 WIDE PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 8. |
413-816
|
[1] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5
|
CAS
Superseded by part number: 87909, BN50282
|
| 9. |
433-512
|
[3] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 10. |
413-616
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 11. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 12. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 13. |
7053325
|
[1] |
SHEAVE
|
CAS
- drive
|
| 14. |
700111508
|
[1] |
BUSHING
|
CAS
|
| 15. |
758102
|
[1] |
SPRING
|
CAS
- tension
|
| 16. |
263350
|
[1] |
BOLT
|
CAS
3/8-126 DRAWBOLT Superseded by part number: 51200342
|
| 17. |
700112729
|
[1] |
SUPPORT
|
CAS
BRACKET - shield
|
| 18. |
740217
|
[1] |
BUSHING
|
CAS
|
| 19. |
700112668
|
[1] |
SUPPORT
|
CAS
BRACKET - mounting
|
| 20. |
700112627
|
[1] |
SHIELD
|
CAS
|
| 21. |
57158
|
[1] |
V-BELT,107.90" L
|
HFI
107.90" L
|
| 22. |
700112341
|
[1] |
STRAP
|
CAS
- mounting
|
| 23. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 24. |
231-5146
|
[1] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 25. |
53553
|
[1] |
SHAFT
|
IH
V-IDLER Superseded by part number: 053553, 053553, NLS
|
| 26. |
6507388
|
[1] |
SPACER
|
CAS
|
| 27. |
700112669
|
[1] |
ARM
|
CAS
TIGHTENER - belt (Includes item 18)
|
| 28. |
219-90
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
1/4-28 X 45 DEGREE ZERK Superseded by part number: 87569
|
