| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

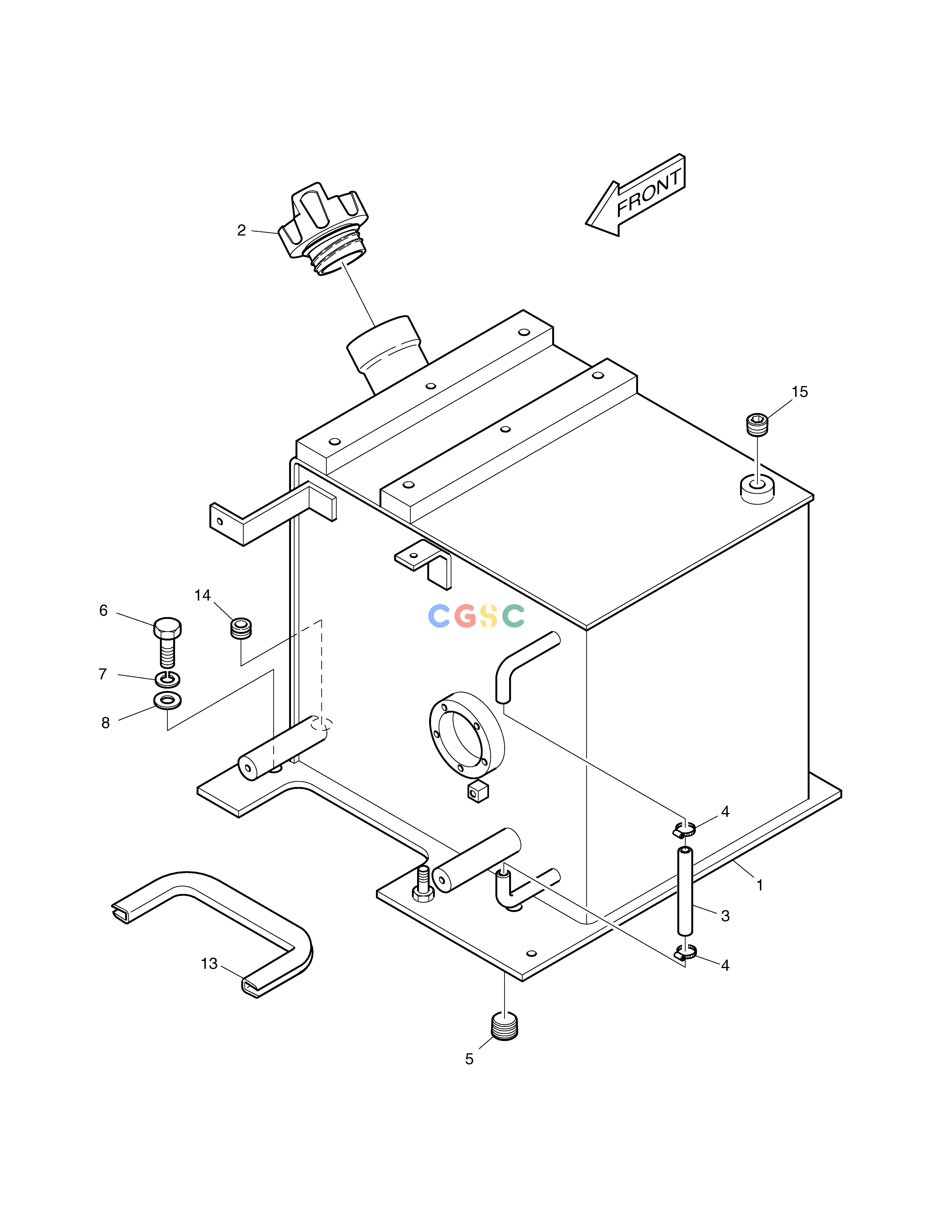

| -. | 470-00051 | [-] | FUEL TANK ASS'Y | |
| 1. | 470-00050C | [1] | TANK;FUEL | |
| 13. | 2161-1744 | [1] | RUBBER | |
| 14. | 2160-1004D2 | [1] | BUSHING;RUBBER | |
| 15. | 2181-1116D9 | [1] | PLUG PT1/4 | |
| 2. | 188-00006 | [1] | CAP;FILLER | |
| 3. | 2185-1006D55 | [1] | HOSE;FUEL | |
| 4. | S8450006 | [2] | CLAMP | |
| 5. | 2181-1116D3 | [1] | PLUG;HEX. SOCKET | |
| 6. | S0511853 | [4] | BOLT | |
| 7. | S5102603 | [4] | . WASHER | |
| 8. | S5010613 | [4] | WASHER |
