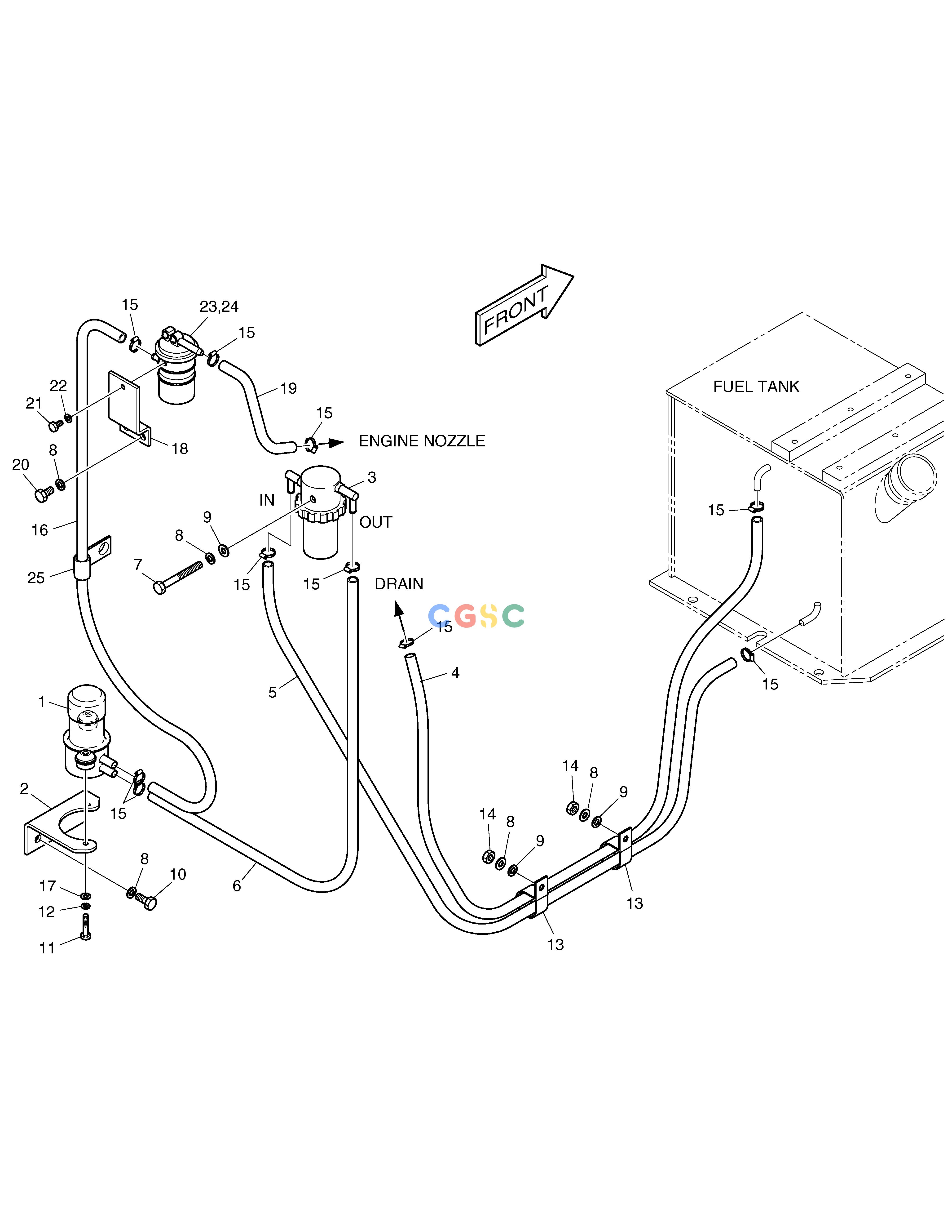

斗山零件查询FUEL PIPING SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
987 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00333
|
[-] |
FUEL PIPING ASS'Y
|
|
| 1. |
30A60-00200
|
[1] |
FUEL PUMP ASS'Y
|
|
| 10. |
S0508853
|
[2] |
. BOLT
|
|
| 11. |
S0505253
|
[2] |
BOLT M6X1.0X30
|
|
| 12. |
S5102303
|
[2] |
. WASHER
|
|
| 13. |
2124-1509D5
|
[2] |
CLIP D36/M8
|
|
| 14. |
S4012533
|
[2] |
NUT
|
|
| 15. |
S8450006
|
[10] |
CLAMP
|
|
| 16. |
2185-1247D99
|
[1] |
HOSE D7.14-D13.49-600L
|
|
| 17. |
2114-1058D69
|
[2] |
WASHER
|
|
| 18. |
195-01348
|
[1] |
BRACKET
|
|
| 19. |
2185-1247D149
|
[1] |
HOSE D7.49-D14.29-250L
|
|
| 2. |
195-00596A
|
[1] |
BRACKET
|
|
| 20. |
S0508653
|
[2] |
BOLT
|
|
| 21. |
S0504453
|
[1] |
BOLT
|
|
| 22. |
S5102303
|
[1] |
. WASHER
|
|
| 23. |
474-00030
|
[1] |
FILTER;FUEL
|
|
| 24. |
MM400880
|
[1] |
CLAMP;FILTER
|
|
| 25. |
2124-1353D9
|
[1] |
CLIP
|
|
| 3. |
MM130552
|
[1] |
SEDIMENTER;WATER
|
|
| 4. |
2185-1247D144
|
[1] |
HOSE D7.14-D13.49-1350L
|
|
| 5. |
2185-1247D145
|
[1] |
HOSE D7.14-D13.49-1100L
|
|
| 6. |
2185-1247D98
|
[1] |
HOSE D7.14-D13.49-500L
|
|
| 7. |
S0556753
|
[2] |
BOLT M8X1.25X70
|
|
| 8. |
S5102503
|
[7] |
. WASHER
|
|
| 9. |
S5010513
|
[3] |
WASHER
|
|
