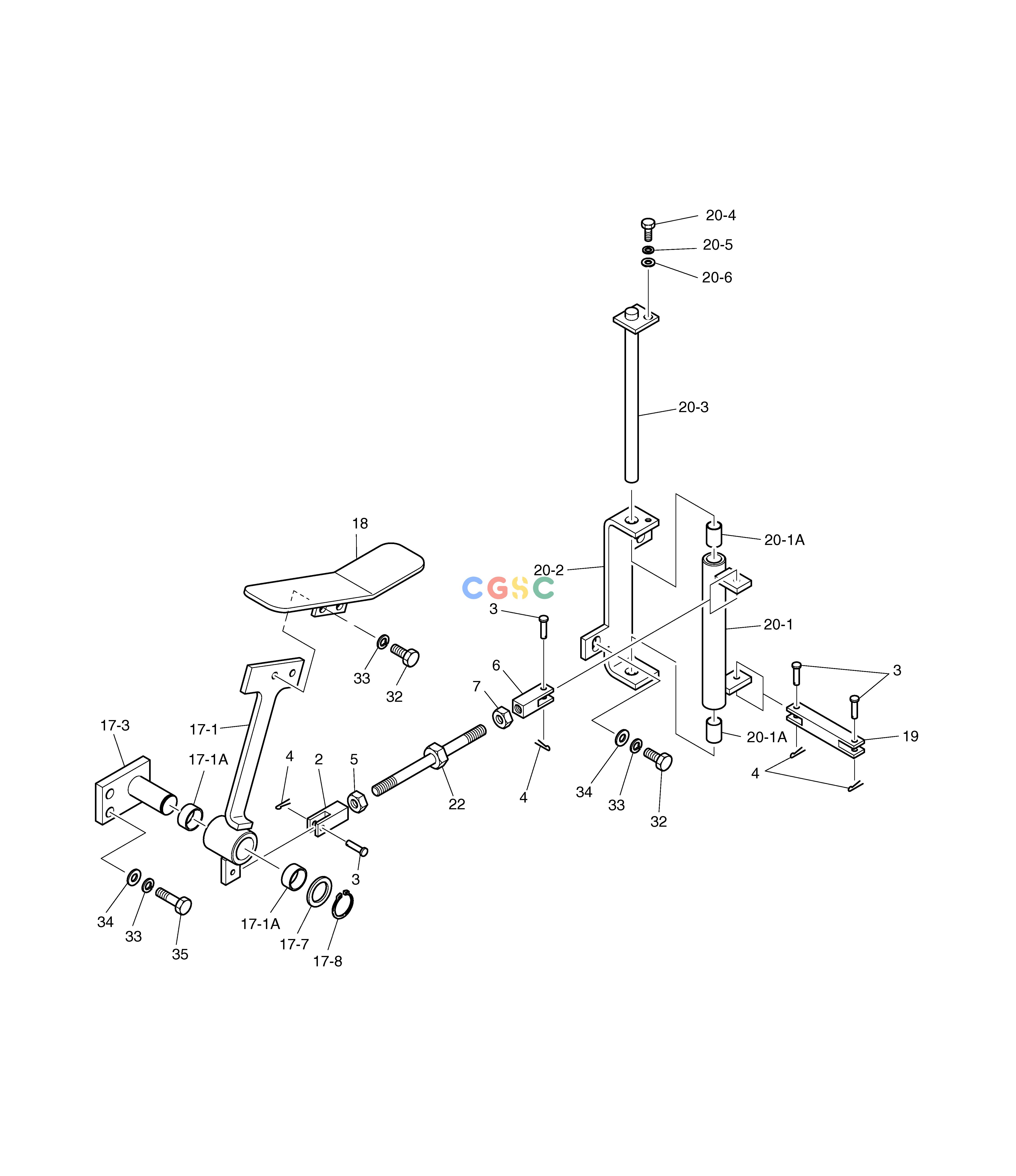

斗山零件查询LEVER-BOOM SWING SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
924 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
133-00138
|
[-] |
LEVER ASS'Y
|
|
| 17. |
137-00038A
|
[1] |
LINK;PEDAL
|
|
| 17-1. |
137-00048A
|
[1] |
LINK;PEDAL
|
|
| 17-1A. |
2110-1184D35
|
[2] |
BUSH
|
|
| 17-3. |
195-00980A
|
[1] |
BRACKET
|
|
| 17-7. |
2114-1059D195
|
[1] |
SHIM
|
|
| 17-8. |
S6500200
|
[1] |
RING
|
|
| 18. |
134-00016A
|
[1] |
PEDAL
|
|
| 19. |
136-00023A
|
[1] |
ROD
|
|
| 2. |
2138-1033
|
[1] |
END;ROD(L.H)
|
|
| 20. |
137-00039B
|
[1] |
LINK
|
|
| 20-1. |
137-00050
|
[1] |
LINK
|
|
| 20-1A. |
2110-1184D15
|
[2] |
BUSH
|
|
| 20-2. |
195-00982B
|
[1] |
BRACKET
|
|
| 20-3. |
123-00268A
|
[1] |
SHAFT
|
|
| 20-4. |
S0504653
|
[1] |
. BOLT
|
|
| 20-5. |
S5102303
|
[1] |
. WASHER
|
|
| 20-6. |
S5010313
|
[1] |
WASHER
|
|
| 22. |
136-00022B
|
[1] |
LINK
|
|
| 3. |
2123-2093
|
[4] |
PIN
|
|
| 32. |
S0508853
|
[4] |
. BOLT
|
|
| 33. |
S5102503
|
[4] |
. WASHER
|
|
| 34. |
S5010513
|
[4] |
WASHER
|
|
| 35. |
S0509253
|
[2] |
BOLT M8X1.25X30
|
|
| 4. |
S5735051
|
[4] |
PIN;SPLIT
|
|
| 5. |
S4012633
|
[1] |
NUT
|
|
| 6. |
2138-1032
|
[1] |
END;ROD(L.H)
|
|
| 7. |
2121-1298
|
[1] |
NUT(L.H)
|
|
