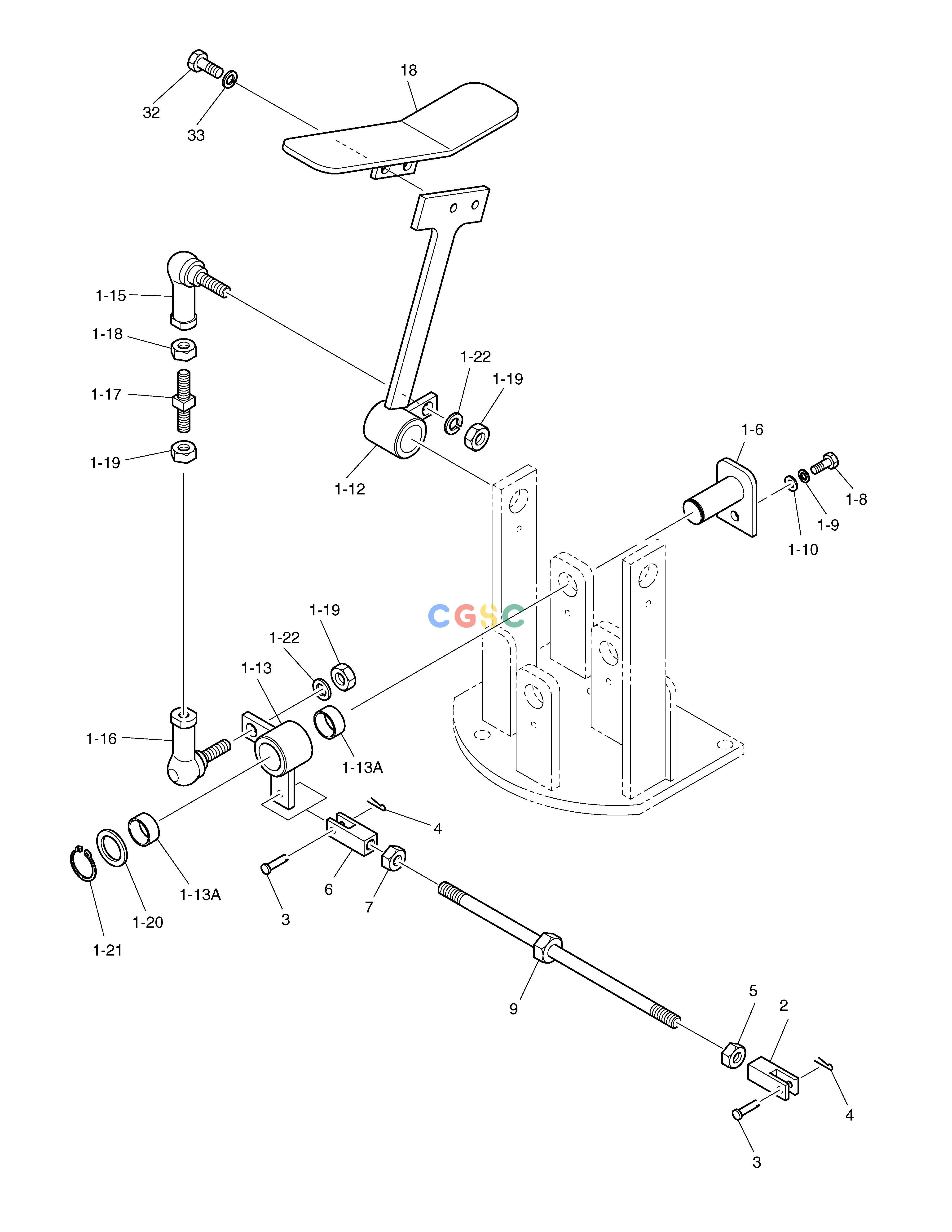

斗山零件查询LEVER-BREAKER SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
133-00138
|
[-] |
LEVER ASS'Y
|
|
| 1-10. |
S5010313
|
[1] |
WASHER
|
|
| 1-12. |
137-00036B
|
[1] |
LINK;PEDAL
|
|
| 1-13. |
137-00042A
|
[1] |
LINK
|
|
| 1-13A. |
2110-1184D35
|
[2] |
BUSH
|
|
| 1-15. |
2138-9018
|
[1] |
BALL;LINK(L.H)
|
|
| 1-16. |
2138-9017
|
[1] |
BALL;LINK
|
|
| 1-17. |
136-00019A
|
[1] |
ROD
|
|
| 1-18. |
2121-1298
|
[1] |
NUT(L.H)
|
|
| 1-19. |
S4012633
|
[3] |
NUT
|
|
| 1-20. |
2114-1059D195
|
[1] |
SHIM
|
|
| 1-21. |
S6500200
|
[1] |
RING
|
|
| 1-22. |
S5102603
|
[2] |
. WASHER
|
|
| 1-6. |
105-00005B
|
[1] |
SHAFT
|
|
| 1-8. |
S0513653
|
[1] |
BOLT M10X1.5X100
|
|
| 1-9. |
S5102303
|
[1] |
. WASHER
|
|
| 18. |
134-00016B
|
[1] |
PEDAL
|
|
| 2. |
2138-1033
|
[1] |
END;ROD(L.H)
|
|
| 3. |
2123-2093
|
[2] |
PIN
|
|
| 32. |
S0508853
|
[2] |
. BOLT
|
|
| 33. |
S5102503
|
[2] |
. WASHER
|
|
| 4. |
S5735051
|
[2] |
PIN;SPLIT
|
|
| 5. |
S4012633
|
[1] |
NUT
|
|
| 6. |
2138-1032
|
[1] |
END;ROD(L.H)
|
|
| 7. |
2121-1298
|
[1] |
NUT(L.H)
|
|
| 9. |
136-00021B
|
[1] |
ROD
|
|
