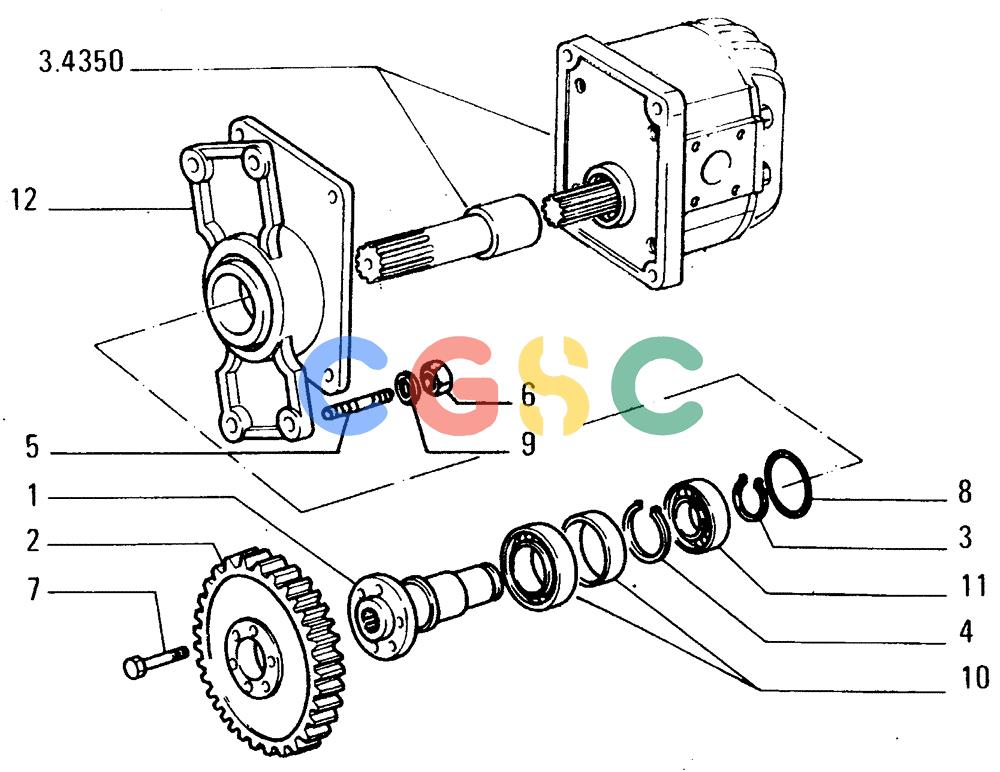

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2000[005]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
753 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 586979 | [1] | SHAFT | LEC Superseded by part number: 76016057 |
| 2. | 4953896 | [1] | GEAR | LEC |
| 3. | 11069076 | [1] | SNAP RING,M45, Ext | TTFRING, RETAINING, M45, Ext Superseded by part number: 370007 |
| 4. | 11069376 | [1] | SNAP RING,M50, Ext | TTFRING, RETAINING, M50, Ext Superseded by part number: 8603209 |
| 5. | 11800434 | [4] | STUD | LEC Superseded by part number: 11800430 |
| 6. | 12164127 | [4] | NUT,M16 x 1.5, Cl 10 | LEC16x1,5x13 Superseded by part number: 12164124 |
| 7. | 14233434 | [6] | BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd | TTF |
| 8. | 14465281 | [1] | O-RING,2.984" ID x 3.262" OD x 0.139" | LEC0-RING Superseded by part number: 608377 |
| 9. | 14496931 | [4] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 10. | 26798330 | [1] | ROLLER BEARING,50 mm ID x 90 mm OD x 20 mm | LECBEARING 50x90 Superseded by part number: 24976420, 26797990 |
| 11. | 28042490 | [1] | BALL BEARING | PLOBEARING 45x75 Superseded by part number: 278793 |
| 12. | 79005840 | [1] | SUPPORT | LEC |
