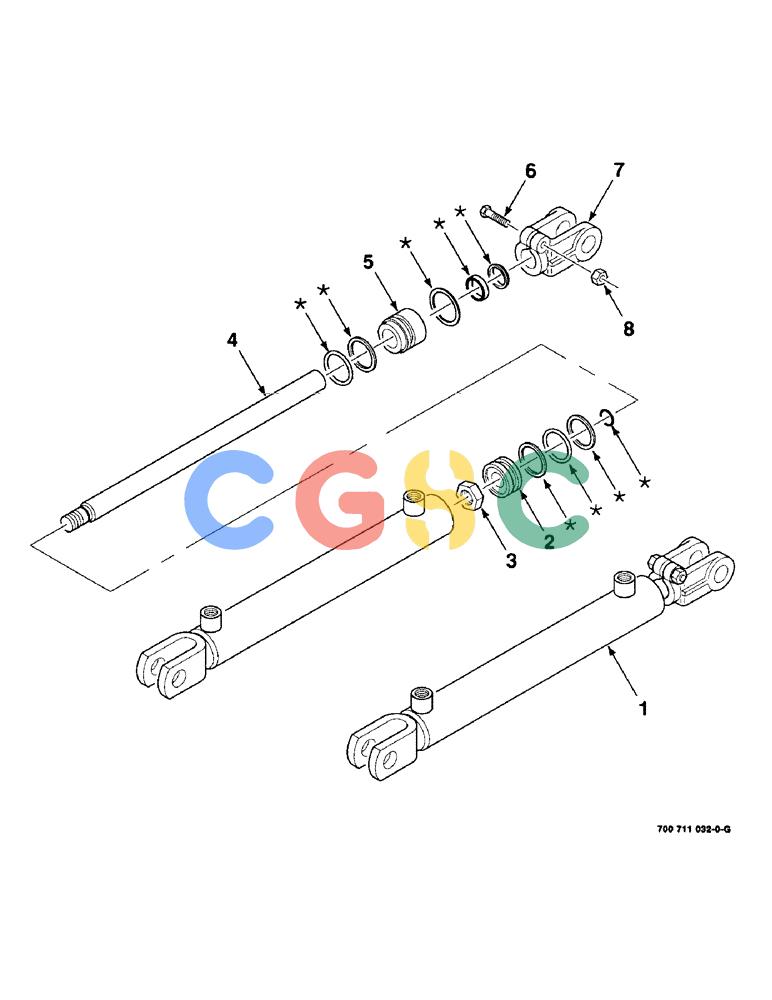

凯斯零件查询(8545) - CASE IH RECTANGULAR BALER (1/89-12/99) (9-50) - BALE THROWER HYDRAULIC CYLINDER ASSEMBLY, (700711032 HYDRAULIC CYLINDER ASSEMBLY COMPLETE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
352 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700711032
|
[1] |
CYLINDER ASSY.
|
L
CYLINDER - hydraulic, complete
|
| 2. |
700707418
|
[1] |
JAM NUT
|
CAS
7/8-14 HEX JAM NUT
|
| 3. |
700707419
|
[1] |
PISTON
|
CAS
|
| 4. |
700711111
|
[1] |
ROD
|
CAS
|
| 5. |
700711112
|
[1] |
GUIDE
|
CAS
|
| 6. |
413-628
|
[1] |
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 72187210, 9706689
|
| 7. |
700711113
|
[1] |
CLEVIS
|
CAS
- rod
|
| 8. |
425-106
|
[1] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 9. |
700711114
|
[1] |
SEAL KIT
|
L
SEAL KIT Includes items in art marked with asterisk
|
