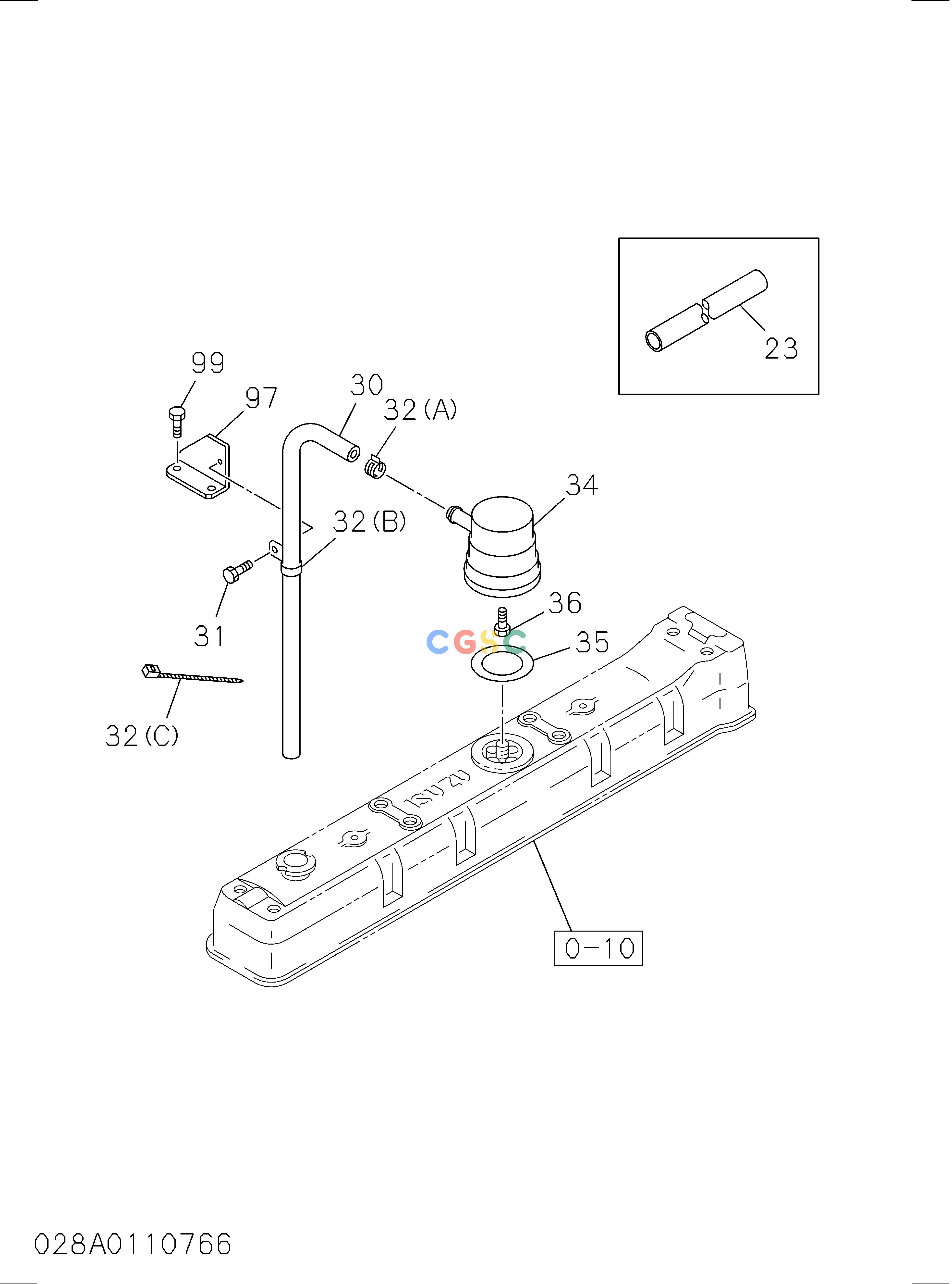

日立零件查询（CD2000）028: VENTILATION SYSTEM Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 030. | 1093609280 | [1] | HOSE; VENTILATOR,CYL HD COVER | L=1520 |
| 030. | 1093609940 | [1] | HOSE; VENTILATOR,CYL HD COVER | L=1450 |
| 032(A). | 1097070841 | [1] | CLIP; VENT HOSE | |
| 032(A). | 8944663820 | [1] | CLIP; VENT HOSE | |
| 032(C). | 5097070311 | [1] | CLIP; VENT HOSE | |
| 034. | 1117401722 | [1] | VENTILATOR | |
| 035. | 1096232090 | [1] | GASKET; VENTILATOR | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 036. | 0500510250 | [1] | BOLT; VENTILATOR | C |
| 036. | 0505510250 | [1] | BOLT; VENTILATOR | |
