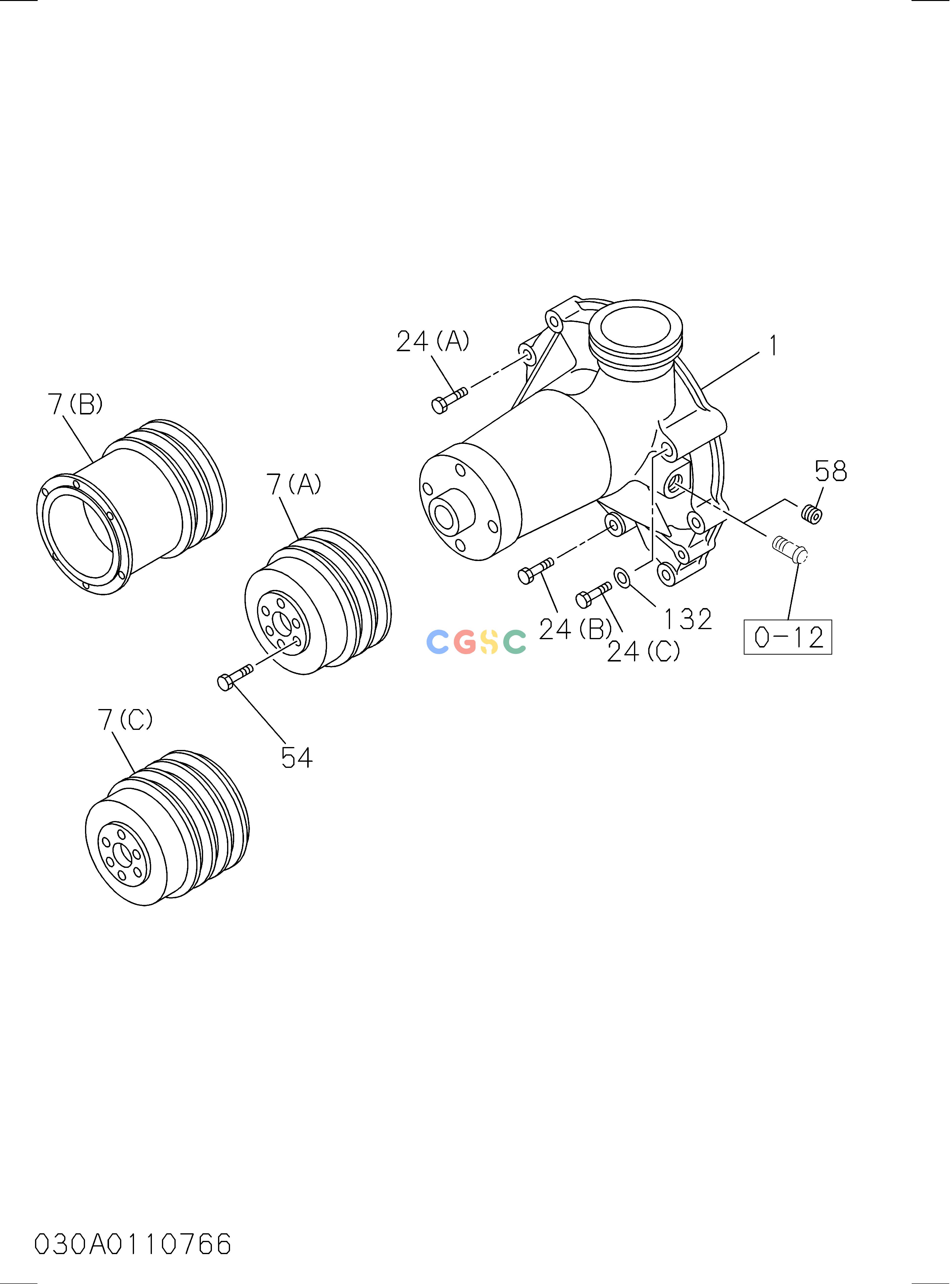

日立零件查询（CD2000）030: WATER PUMP AND CORROSION RESISTOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
761 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 1136500681 | [1] | PUMP ASM; WATER,W/GASKET | |
| 003. | 1136140170 | [1] | GASKET; PUMP TO C/BL | A ALSO INCLUDED IN GASKET SET(ENGINE) |
| 003. | 1136140181 | [1] | GASKET; PUMP TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 004. | 1878121511 | [1] | REPAIR KIT; WATER PUMP | |
| 007(C). | 1136411850 | [1] | PULLEY; WATER PUMP | 3-GROOVE |
| 009. | 9091801680 | [1] | RING; SNAP,WATER PUMP | |
| 010. | 1098002790 | [3] | BEARING; WATER PUMP | |
| 011. | 1136340420 | [1] | SPACER; BRG,WATER PUMP | |
| 016(A). | 1096256180 | [1] | SEAL; OIL,WATER PUMP | |
| 016(B). | 1096256170 | [1] | SEAL; OIL,WATER PUMP | |
| 017. | 8943950360 | [1] | SEAL UNIT; WATER PUMP | A |
| 017. | 8943920900 | [1] | SEAL UNIT; WATER PUMP | |
| 018. | 1136210590 | [1] | IMPELLER; WATER PUMP | |
| 024(A). | 0501408350 | [1] | BOLT; WATER PUMP | A M8X35 W/LK&PL WASHER |
| 024(A). | 0506408350 | [1] | BOLT; WATER PUMP | M8X35 W/LK&PL WASHER |
| 024(B). | 0501408450 | [6] | BOLT; WATER PUMP | C M8X45 W/LK&PL WASHER |
| 024(B). | 0506408450 | [6] | BOLT; WATER PUMP | M8X45 W/LK&PL WASHER |
| 024(C). | 0168060950 | [2] | BOLT; WATER PUMP | M10X95 |
| 025. | 1136420460 | [1] | CENTER; WATER PUMP | |
| 029. | 1136310900 | [1] | SHAFT; WATER PUMP | |
| 054. | 0280810700 | [6] | BOLT; PULLEY | A M10X70 FLANGE |
| 054. | 0280510700 | [6] | BOLT; PULLEY | M10X70 FLANGE |
| 055. | 1136190460 | [1] | NOZZLE; OIL FEED,WATER PUMP | |
| 072. | 1096233420 | [1] | GASKET; PUMP TO THERMO HSG | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 132. | 9091605100 | [2] | WASHER; PL,WATER PUMP | A |
| 132. | 0916105100 | [2] | WASHER; PL,WATER PUMP | |
