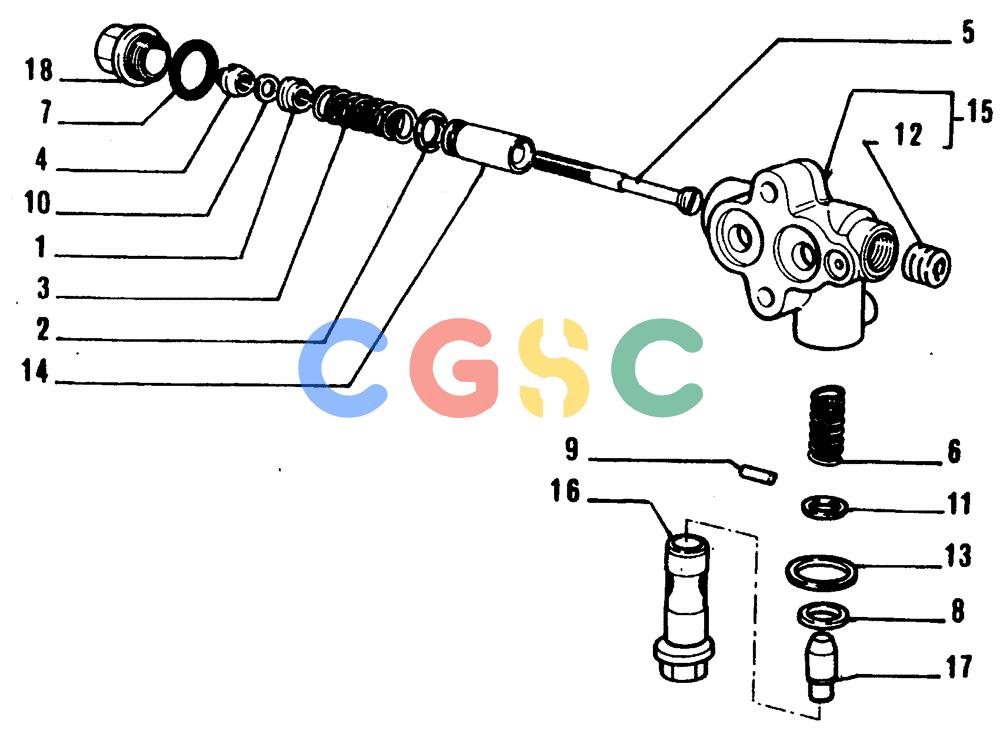

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2000[008]) - UNIT TORQUE CONVERTER-VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
812 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 581593 | [1] | LOCK NUT | LEC |
| 2. | LEC583058 | [1] | WASHER | LECC2712 - UPTO SERIAL NO...060244 |
| 2. | 79101856 | [1] | GUIDE | LECD2712 |
| 3. | 593198 | [1] | SPRING | LEC |
| 4. | 597092 | [1] | RING NUT | LECPISTON |
| 5. | 79085403 | [1] | TIE-ROD | LECTIEROD C2712 Superseded by part number: 79101854, 79101856, 79101855 |
| 5. | 79101855 | [1] | SCREW,M8 x 100mm, Cl 10.9 | LECTIEROD D2712 |
| 6. | 8280351 | [1] | SPRING | LEC |
| 7. | 8295459 | [1] | SEAL | LECSEAL |
| 8. | 14457681 | [1] | O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro | TTF-118, Cl 7, .862" ID x .103" Thk |
| 9. | 10333910 | [1] | PIN | LEC4x25 |
| 10. | 10730321 | [1] | WASHER,8.15mm ID x 17mm OD x 2mm Thk | JES8,15x17 Superseded by part number: 16665514 |
| 11. | 13550201 | [1] | WASHER,6.15mm ID x 13mm OD x 1mm Thk | LEC6,15x13 Superseded by part number: 17094724 |
| 12. | 14325301 | [1] | PLUG | LEC22x1,5x13 Superseded by part number: 16997711 |
| 13. | 71305686 | [1] | SEALING WASHER | LECSEAL Superseded by part number: 8289371 |
| 14. | 79000996 | [1] | PLUG | LECVALVE C2712 Superseded by part number: 79101856, 79101855, 79101854 |
| 14. | 79101854 | [1] | PRESSURE CONTROL VALVE | LECVALVE D2712 |
| 15. | 79043952 | [1] | BODY | LEC |
| 16. | 79043953 | [1] | SEAT/SLOT | LECSEAT |
| 17. | 79043954 | [1] | PLUNGER | LEC |
| 18. | 79068722 | [1] | PLUG | LEC |
