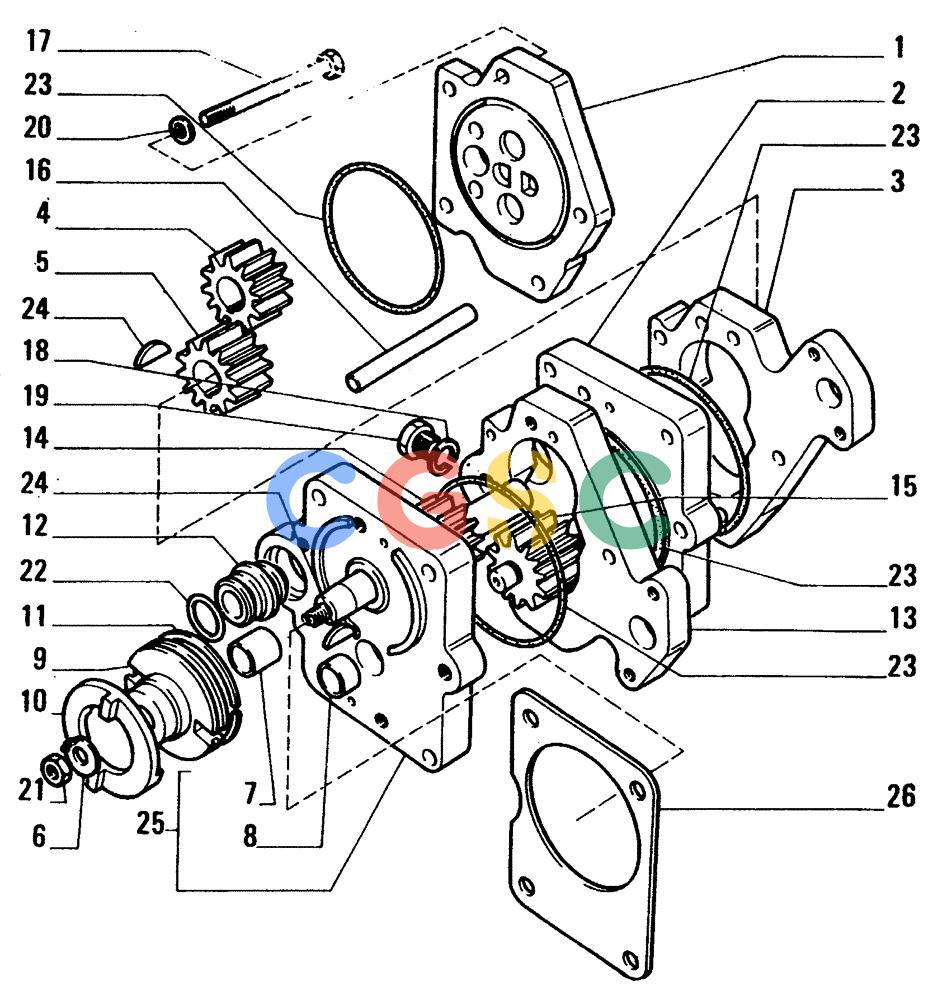

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2000[009]) - UNIT TORQUE CONVERTER-TRANSMISSION-CONVERTER PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
388 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 588884 | [1] | COVER | LEC |
| 2. | 588904 | [1] | SPACER | LEC |
| 3. | 588905 | [1] | ALTERNATOR STATOR | LECSTATOR |
| 4. | 588912 | [1] | GEAR | LEC |
| 5. | 588913 | [1] | GEAR | LEC Superseded by part number: BER588913, BER588913, LEC588913 |
| 6. | 588915 | [1] | LOCK WASHER,10.5mm ID x 17.8mm OD x 0.9mm Thk | LEC |
| 7. | 591055 | [1] | BUSHING,15.45mm ID x 19mm OD x 21mm L | LEC |
| 8. | 591707 | [4] | BUSHING,15.45mm ID x 19mm OD x 16mm L | MOD Superseded by part number: 80591707 |
| 9. | 591794 | [1] | CHANNEL | LEC |
| 10. | 4526899 | [1] | COUPLING RING | BRERING |
| 11. | 4526900 | [1] | SNAP RING | BRESNAP RING |
| 12. | 4952685 | [1] | HYD CONNECTOR | LECFITTING |
| 13. | 4960319 | [1] | ALTERNATOR STATOR | LECSTATOR |
| 14. | 4960321 | [1] | GEAR | LEC |
| 15. | 4960322 | [1] | GEAR | LEC |
| 16. | 4960323 | [2] | PIN | LEC |
| 17. | 4960324 | [5] | SCREW | LEC |
| 18. | 10263160 | [1] | SEALING WASHER,M18.3 x 24 x 1 | JESGASKET 18,2x24 |
| 19. | 10300811 | [1] | PLUG,M18 x 1.5 x 14, Cl5.8 | IMO18x1,5x9 Superseded by part number: 16992511 |
| 20. | 10516671 | [5] | LOCK WASHER | BHBLOCKWASHER 8,1x2,2 Superseded by part number: 83990583 |
| 21. | 12164721 | [1] | NUT,M10 x 1.25, Cl 10 | TTF10x1,25x8 |
| 22. | 14462881 | [3] | O-RING,18.64mm ID x 3.53" Width | LEC-210, Cl 7, .734" ID x .139" Thk Superseded by part number: 86625107, 76022809 |
| 23. | 14465481 | [4] | O-RING,3.234" ID x 3.512" OD x 0.139" | LEC-236, Cl 7, 3.234" ID x .139" Thk (M82.14 ID x 3.53 Thk) |
| 24. | 79014342 | [2] | KEY | LEC |
| 25. | 79038141 | [1] | COVER | LEC- ASSEMBLY |
| 26. | 79038142 | [1] | GASKET,0.8mm Thk | LECSEAL |
