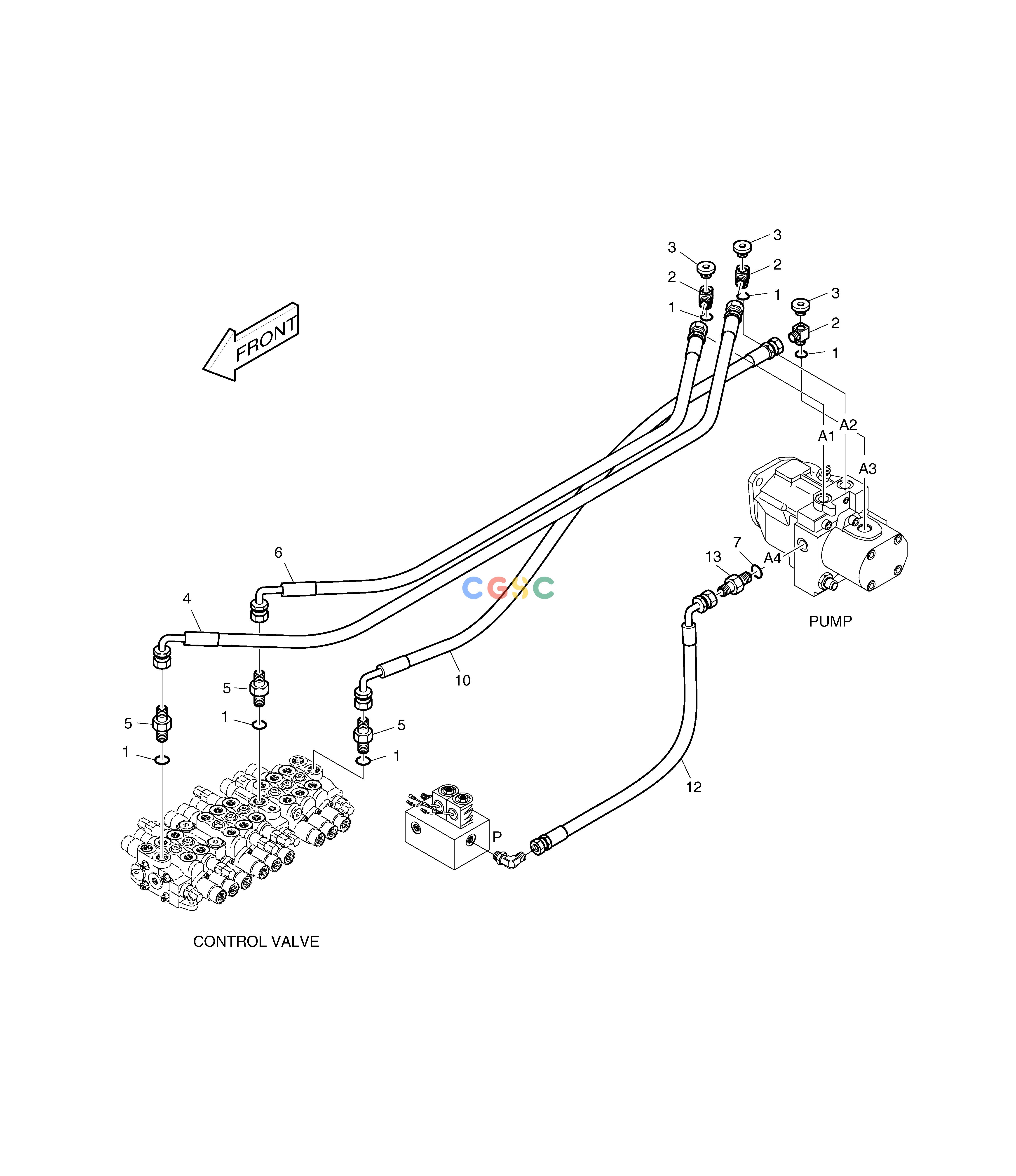

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 400-00591 | [-] | MAIN PIPING (2) | |
| 1. | S8000181 | [6] | O-RING | |
| 10. | DS2055804 | [1] | HOSE PF3/8-780L | |
| 12. | 2184-1046D68 | [1] | HOSE PF1/4-600L | |
| 13. | 2181-1126D36 | [1] | ADAPTER | |
| 2. | 2181-2714A | [3] | ELBOW PFO1/2-PF3/8 | |
| 3. | 2181-2047 | [3] | PLUG | |
| 4. | 2184-1036D446 | [1] | HOSE PF3/8-1210L | |
| 5. | 2181-1126D73 | [3] | ADAPTER | |
| 6. | 2184-1036D377 | [1] | HOSE PF3/8-1000L | |
| 7. | S8000141 | [1] | O-RING |
