斗山零件查询MAIN PIPING(1) SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
539 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00434
|
[-] |

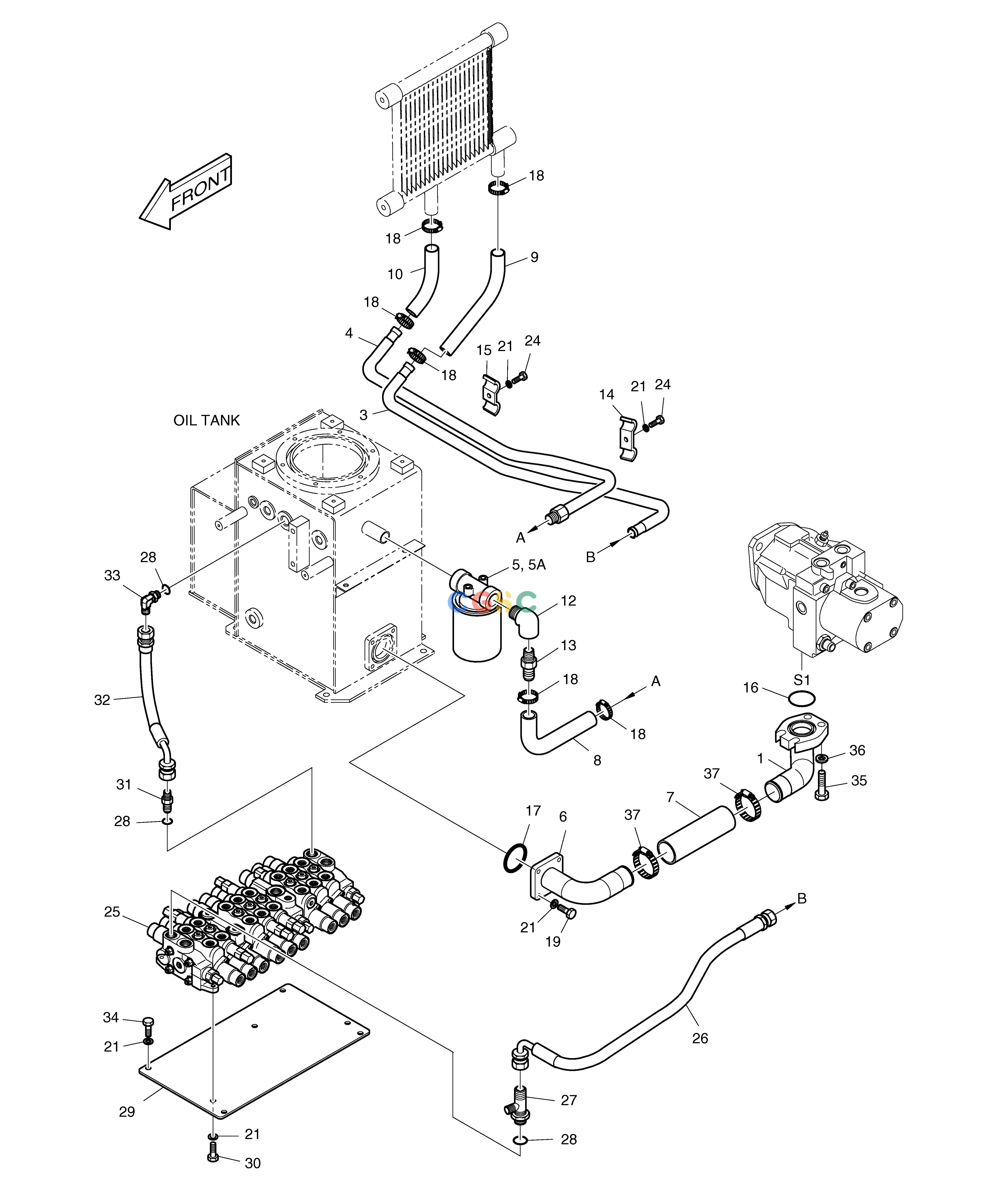

MAIN PIPING (1)
|
|
| 1. |
140-01394A
|
[1] |
PIPE
|
|
| 10. |
185-00078A
|
[1] |
HOSE
|
|
| 12. |
2181-1104D4
|
[1] |
ELBOW PT3/4-3/4
|
|
| 13. |
2181-2580
|
[1] |
ADAPTER PT3/4
|
|
| 14. |
2124-1340D21
|
[1] |
CLAMP;PIPE
|
|
| 15. |
2124-1340D20
|
[1] |
CLAMP;PIPE
|
|
| 16. |
2180-1026D28
|
[1] |
O-RING
|
|
| 17. |
2180-1026D27
|
[1] |
O-RING
|
|
| 18. |
S8450023
|
[6] |
CLAMP
|
|
| 19. |
S0508953
|
[4] |
BOLT M8X1.25X22
|
|
| 21. |
S5102503
|
[13] |
. WASHER
|
|
| 24. |
S0509253
|
[2] |
BOLT M8X1.25X30
|
|
| 25. |
420-00176C
|
[1] |
CONTROL VALVE
|
|
| 26. |
2184-1036D15
|
[1] |
HOSE PF1/2-830L
|
|
| 27. |
2181-2375D9
|
[1] |
TEE PF1/2-1/2-3/8
|
|
| 28. |
S8000181
|
[3] |
O-RING
|
|
| 29. |
621-01293A
|
[1] |
PLATE;VALVE
|
|
| 3. |
140-00578
|
[1] |
PIPE
|
|
| 30. |
S0508653
|
[3] |
BOLT
|
|
| 31. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 32. |
2184-1036D449
|
[1] |
HOSE PFO1/2-330L
|
|
| 33. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 34. |
S0508853
|
[4] |
. BOLT
|
|
| 35. |
S0560551
|
[4] |
BOLT M12X1.75X40
|
|
| 36. |
S5102701
|
[4] |
WASHER;SPRING
|
|
| 37. |
2124-1024D10
|
[2] |
CLAMP;HOSE
|
|
| 4. |
140-00579A
|
[1] |
PIPE
|
|
| 5. |
562-04600
|
[1] |
FILTER;RETURN
|
|
| 5A. |
471-00034
|
[1] |
FILTER;RETURN
|
|
| 6. |
193-00402A
|
[1] |
PIPE;SUCTION
|
|
| 7. |
2185-1776D44
|
[1] |
HOSE
|
|
| 8. |
185-00079
|
[1] |
HOSE
|
|
| 9. |
185-00392
|
[1] |
HOSE
|
|
